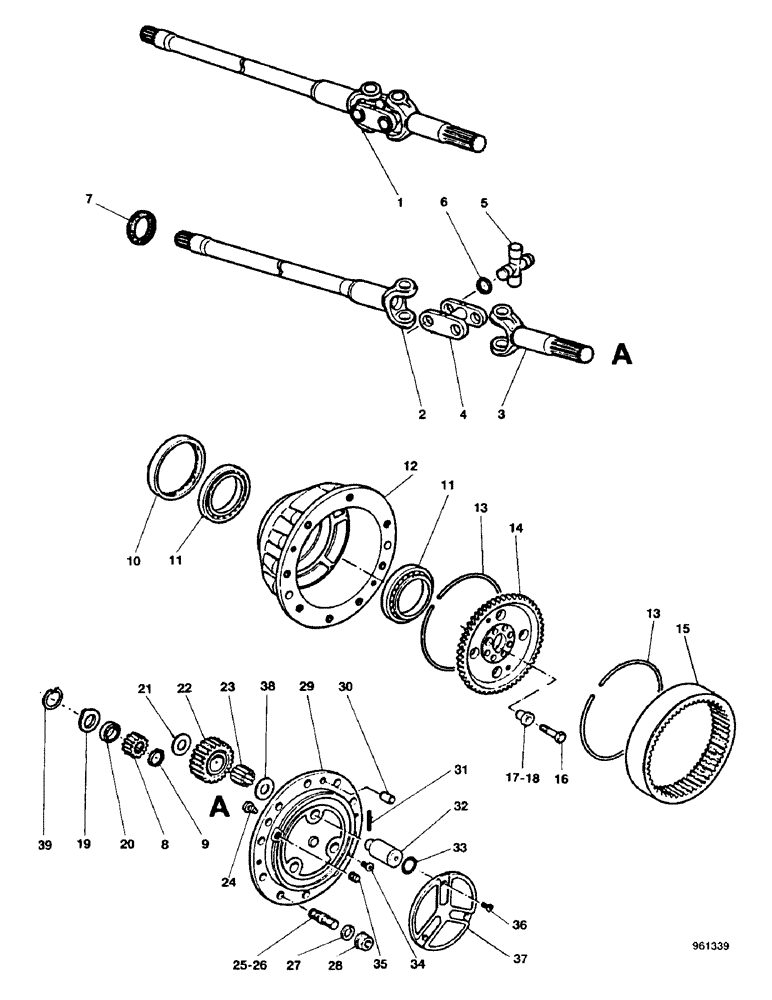

Запчасти Case 580G (30) - FRONT DRIVE AXLE - AXLE SHAFT AND PLANETARY

REF

INSTRUCTION

AXLE ASSY (See Figures 24-30) .

1шт.

1

N13511

SHAFT

AXLE ASSY, Order N14156, Up to No. 7F/2016

2шт.

1

N14156

SHAFT

AXLE ASSY, Up to No. 7F/2017

2шт.

2

N13509

SHAFT

inner, Up to No. 7F/2016

1шт.

2

N14413

SHAFT

inner, Up to No. 7F/2017

1шт.

3

N13510

SHAFT

outer, Up to No. 7F/2016

1шт.

3

N14409

SHAFT

outer, Up to No. 7F/2017

1шт.

4

K262199

FORK

Up to No. 7F/2016

1шт.

4

N14412

BODY

FLANGE, Up to No. 7F/2017

1шт.

K262161

U-JOINT SPIDER

ASSY, Up to No. 7F/2016

2шт.

N14411

U-JOINT SPIDER

ASSY, Up to No. 7F/2017

2шт.

5

NSS

NOT SOLD SEPARAT

JOINT universal, Up to No. 7F/2016

1шт.

5

NSS

NOT SOLD SEPARAT

JOINT universal, Up to No. 7F/2017

1шт.

6

K965336

RING, SNAP

RING SNAP Up to No. 7F/2016

4шт.

6

N14410

RING

snap, Up to No. 7F/2017

4шт.

7

K395103

OIL SEAL

2шт.

8

K395114

GEAR

2шт.

9

K261897

RING, SNAP

RING SNAP

2шт.

10

K395102

OIL SEAL

155 x 176 x 16

2шт.

11

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

4шт.

12

K395123

HUB

2шт.

13

K395095

CIRCLIP

4шт.

14

K395126

WHEEL

carrier

2шт.

15

K395113

GEAR

crown

1шт.

16

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

16шт.

17

K395105

RING

BUSHING Dia. 20 mm

14шт.

18

K395104

RING

BUSHING Dia. 24 mm

2шт.

19

K395115

WASHER

2шт.

20

K395121

SPACER

2шт.

21

N13512

WASHER,23mm ID x 55mm OD x 1.5mm Thk

6шт.

22

N13513

GEAR,29 T

6шт.

23

N13514

NEEDLE BEARING

180шт.

24

K395093

HEADED PIN,12mm OD x 15mm L

2шт.

25

K260218

STUD

12шт.

26

N13515

STUD

(with collar)

4шт.

27

K395083

WASHER,18.5mm ID x 29mm OD x 7mm Thk

16шт.

28

K395089

WHEEL NUT

wheel

16шт.

29

N13516

COVER

planetary

2шт.

30

K395094

DOWEL,M18 x 36

4шт.

31

K965305

SPLIT PIN/SAFETY PIN

roll

6шт.

32

N13517

PIN,34.4mm OD x 80mm L

6шт.

33

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

6шт.

34

K395029

SCREW

4шт.

35

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

36

K395082

SCREW,M8 x 20mm

6шт.

37

K395135

COVER

2шт.

38

K395091

THRUST WASHER

6шт.

39

E46335

RING, SNAP

RING SNAP

2шт.
