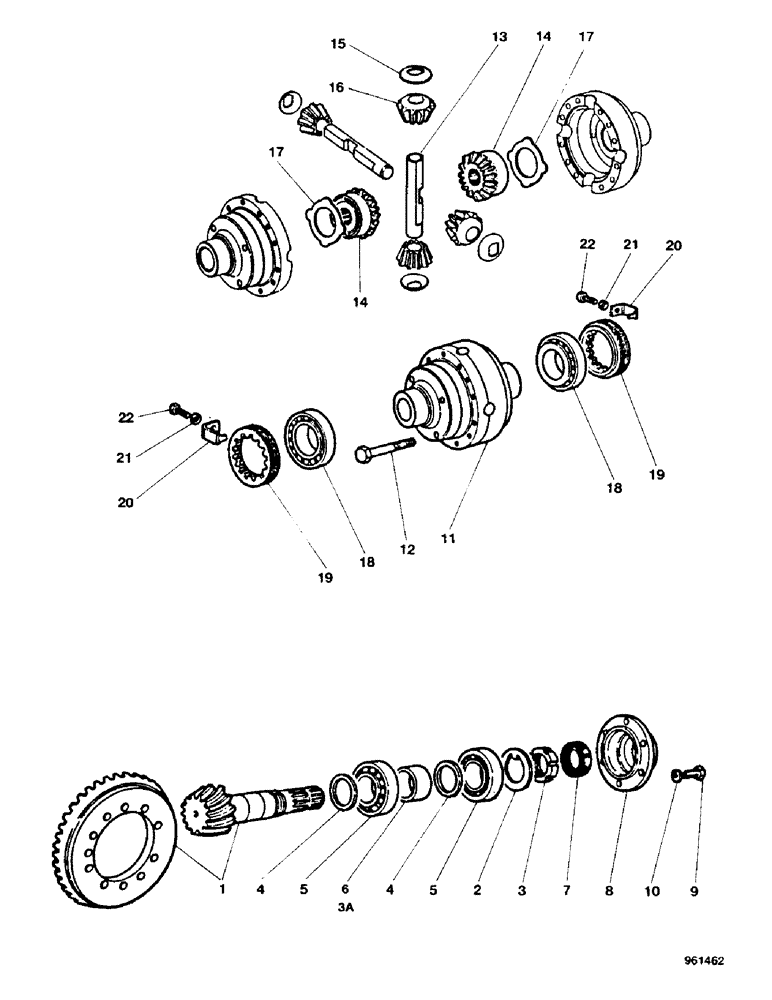

Запчасти Case 580G (28) - FRONT DRIVE AXLE - DIFFERENTIAL

REF

INSTRUCTION

AXLE ASSY (See Figures 24-32) .

1шт.

1

E46334

GEAR

SPARE PART SET

1шт.

2

N7536

WASHER,41mm ID x 62mm OD x 2mm Thk

1шт.

3

K261852

NUT

RH thread

1шт.

3a

N14406

SPACER

collapsible

1шт.

4

K965280

SHIM,2.50mm Thk

Used with N14406

1шт.

K965281

SHIM,2.55mm Thk

Used with K965412

1шт.

4

K965282

SHIM,2.60mm Thk

Used with N14406

1шт.

K965283

SHIM,2.65mm Thk

Used with K965412

1шт.

4

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

Used with N14406

1шт.

K965285

SHIM,2.75mm Thk

Used with K965412

1шт.

4

K965286

SHIM,2.85mm Thk

Used with N14406

1шт.

K965287

SHIM,2.85mm Thk

Used with K965412

1шт.

4

K965288

SHIM,2.90mm Thk

Used with N14406

1шт.

K965289

SHIM,2.95mm Thk

Used with K965412

1шт.

4

K965290

SPACER

3.00 mm, Used with N14406

1шт.

K965291

SHIM,3.05mm Thk

Used with K965412

1шт.

4

K965292

SHIM,3.10mm Thk

Used with N14406

1шт.

K965293

SHIM,3.15mm Thk

Used with K965412

1шт.

4

K965294

SHIM,3.20mm Thk

Used with N14406

1шт.

K965295

SHIM,3.25mm Thk

Used with K965412

1шт.

4

K965296

SHIM,3.30mm Thk

Used with N14406

1шт.

K965297

SHIM,3.35mm Thk

Used with K965412

1шт.

4

K965298

SHIM,3.40mm Thk

Used with N14406

1шт.

5

K395090

TAPERED BEARING,40mm ID x 90mm OD

2шт.

6

K965412

BUSHING

1шт.

7

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

35 x 52 x 16

1шт.

8

K395055

COVER

1шт.

9

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

10

892-1106

LOCK WASHER,M6

6шт.

11

N13508

DIFFERENTIAL

BOX

1шт.

12

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

12шт.

13

N13507

PIN

2шт.

14

N13617

GEAR

WHEEL bevel, Order 2 P/N N14407 and 2 P/N N14408

2шт.

14

N14407

GEAR

WHEEL bevel

2шт.

15

K395075

THRUST WASHER

4шт.

16

K395076

GEAR

bevel, Order 2 P/N N14407 and 2 P/N N14408

4шт.

16

N14408

SUN GEAR

bevel

4шт.

17

N13618

WASHER

thrust

2шт.

18

K395027

TAPERED BEARING

2шт.

19

K261868

RING

NUT

2шт.

20

K261869

LOCK

PLATE

2шт.

21

892-1106

LOCK WASHER,M6

2шт.

22

814-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.
