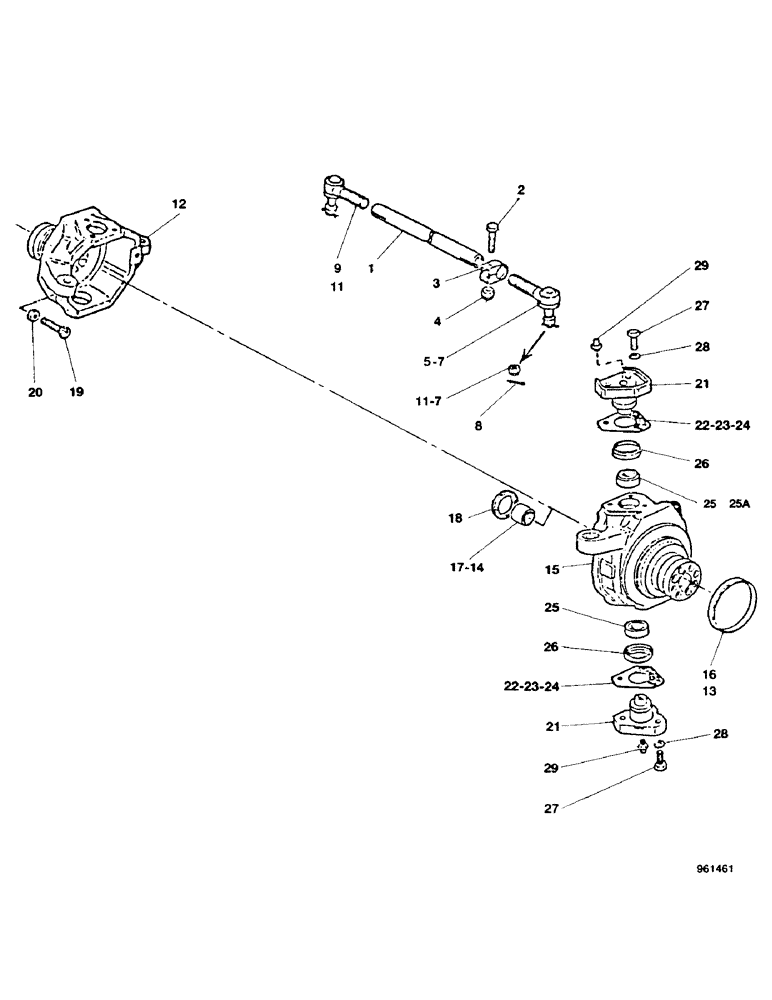

Запчасти Case 580G (26) - FRONT DRIVE AXLE - SWIVEL HOUSING AND TIE ROD

REF

INSTRUCTION

AXLE ASSY (See Figures 24-30) .

1шт.

1

N13615

ROD

tie

1шт.

2

N8905

BOLT

2шт.

3

N8904

CLAMP

2шт.

4

K260157

NUT

2шт.

K260254

BALL JOINT

ASSY, RH

1шт.

5

NSS

NOT SOLD SEPARAT

JOINT ball, RH

1шт.

7

K260251

NUT

1шт.

8

K260255

PIN

cotter

2шт.

K260250

BALL JOINT

ASSY, LH

1шт.

9

NSS

NOT SOLD SEPARAT

JOINT ball, LH

1шт.

11

K260251

NUT

1шт.

N13613

HOUSING

ASSY, LH

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING, LH

1шт.

13

K395138

WEAR RING

1шт.

14

K395033

BUSHING

1шт.

N13614

HOUSING

ASSY, RH

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING, RH

1шт.

16

K395138

WEAR RING

1шт.

17

K395033

BUSHING

1шт.

18

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

35 x 52 x 16

2шт.

19

K395032

BOLT

4шт.

20

K965369

JAM NUT

4шт.

21

N13504

PIVOT

PIN lower

4/2шт.

21

N14376

PIN

Upper

2шт.

22

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

1шт.

23

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

1шт.

24

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

1шт.

25

K395040

BEARING CAP

Order N14373

4/2шт.

25

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

2шт.

25a

N14372

BUSHING

2шт.

26

K395039

SEAL

4шт.

27

814-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

12шт.

28

892-1114

LOCK WASHER,M14

lock

12шт.

29

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

4шт.
