Запчасти Case 580G (22) - FRONT DRIVE AXLE - MOUNTING

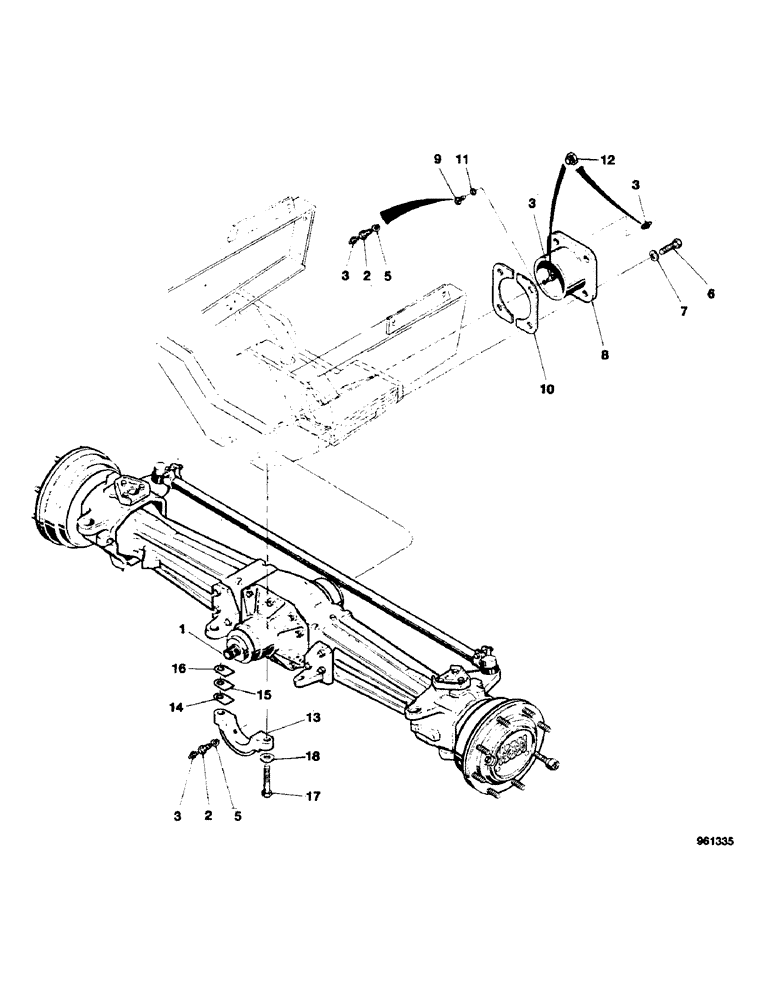

Схема запчастей Case 580G - (22) - FRONT DRIVE AXLE - MOUNTING
6
14
2
17
2
3
15
3
16
8
18
3
1
5
12
10
9
7
5
13
11
3

Артикул

Название

Примечание

Количество

1

E46076

4WD AXLE ASSY

(See Figures 24-30)

1шт.

2

D93588

FITTING

order E46467 + 219.17

1-2шт.

2

E46467

FITTING

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3-2шт.

3

219-17

LUBE NIPPLE,3/16" NPTF

1шт.

5

92-8

LOCK WASHER,1/2"

1-2шт.

5

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

6

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

4шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

4шт.

8

D126791

FLANGE

1шт.

9

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1шт.

10

D122148

SHIM,0.5mm Thk

2-4шт.

11

196-16

WASHER,.521" x 1" x .179", HDN

1шт.

12

221-1661

PLUG

if used

2шт.

D126549

KIT

repair

1шт.

13

NSS

NOT SOLD SEPARAT

CLAMP

1шт.

14

D126551

SHIM,0.3mm Thk

(0.012"), If used

1шт.

15

D126552

SHIM,0.4mm Thk

(0.016"), If used

1шт.

16

D126553

SHIM,0.5mm Thk

(0.020"), If used

1шт.

17

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

2шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

2шт.

E46040

BODY

SPARE PART tractor (not shown)

1шт.

Выбрано товаров: 22
