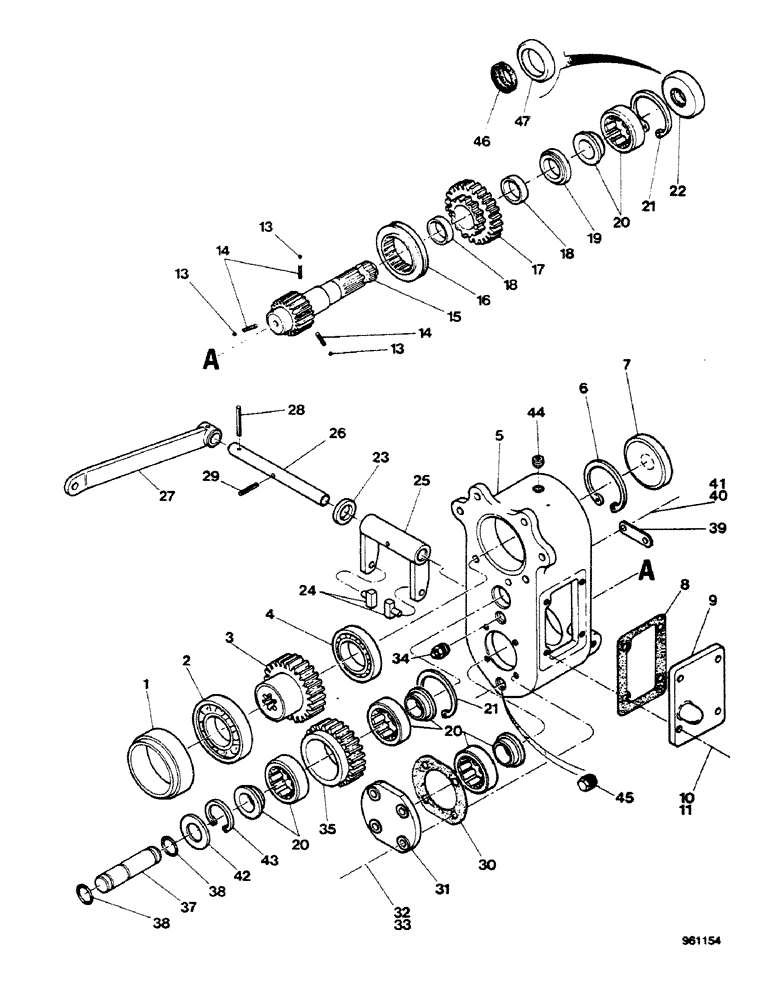

Запчасти Case 580G (178) - FRONT DRIVE AXLE - TRANSFER CASE (06) - POWER TRAIN

D120557

HOUSING

transfer, Includes: Ref. 1 - 45, Serial Range: -3.932.239

1шт.

E44653

BOX

transfer, Includes: Ref. 1 - 45, Start Serial: 3.932.240

1шт.

Starting from No. 3.941.001, Except for No. 3.940.979 + 3.940.986

1шт.

1

N7615

BEARING

BEARING thrust

1шт.

2

A20291

BALL BEARING,2.3616" ID x 4.3307" OD

ball

1шт.

3

K956972

GEAR

1шт.

4

N7621

BALL BEARING

ball

1шт.

5

E44654

HOUSING

1шт.

6

K956992

RING

snap

1шт.

7

K956994

PLUG

1шт.

8

K956878

GASKET

1шт.

9

K956867

COVER

1шт.

10

K956927

BOLT,Hex, M8 x 22, 8.8, Full Thd

4шт.

11

892-1108

LOCK WASHER,M8

4шт.

13

211-7

BALL,1/4" Dia

3шт.

14

K965394

SPRING

3шт.

15

K956823

SHAFT

SPARE PART

1шт.

16

K965395

CLUTCH

sliding

1шт.

17

K956824

GEAR

ASSY, Includes: Ref. 18

1шт.

18

K956825

BUSHING

2шт.

19

K956826

BUSHING

1шт.

20

K965406

ROLLER BEARING

roller

4шт.

21

K965403

RING, SNAP

RING SNAP

2шт.

22

E45157

SEAL

1шт.

23

K965377

OIL SEAL

1шт.

24

K956828

SMALL PIN

roller

2шт.

25

K956827

SELECTOR

1шт.

26

K956963

SHAFT

1шт.

27

K956960

LEVER

1шт.

28

K956978

SPLIT PIN/SAFETY PIN

1шт.

29

K956977

PIN

groove

1шт.

30

K965398

GASKET

1шт.

31

K965396

COVER

1шт.

32

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

33

892-1108

LOCK WASHER,M8

4шт.

34

A156873

PLUG, DRAIN,M22 x 1.5

1шт.

35

K956807

GEAR

1шт.

37

N7617

SHAFT

SPARE PART

1шт.

38

N7618

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

2шт.

39

K956812

PLATE

lock

1шт.

40

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

41

892-1108

LOCK WASHER,M8

2шт.

42

N7619

BUSHING

1шт.

43

K956916

CLIP

snap

1шт.

44

N7680

PLUG

1шт.

45

A156873

PLUG, DRAIN,M22 x 1.5

If used

1шт.

46

E44659

SEAL

1шт.

E45157 Starting from see supplement 8-60670

1шт.

47

E44661

BUSHING

1шт.

E45157 Starting from see supplement 8-60670

1шт.
