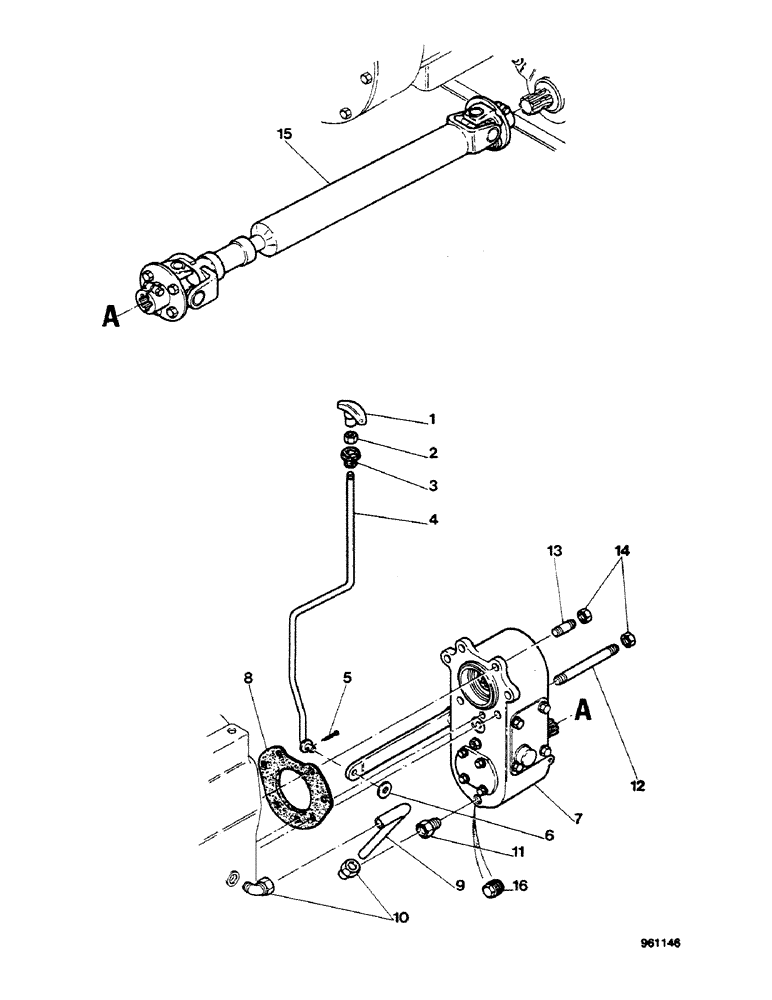

Запчасти Case 580G (176) - FRONT DRIVE AXLE - CONTROL AND DRIVE PARTS (06) - POWER TRAIN

1

K956842

HANDLE

1шт.

2

K965369

JAM NUT

1шт.

3

353-468

BUSHING,nasp

SPARE PART

1шт.

4

D92491

ROD

1шт.

5

132-48

COTTER PIN,1/8" x 1"

1шт.

6

195-33

WASHER,1/2"

flat

1шт.

7

REF

INSTRUCTION

CASE transfer, See Figure 178

1шт.

8

K207278

GASKET

1шт.

9

D92461

PIPE

SPARE PART, Serial Range: -3.932.239

1шт.

10

D92496

FITTING

SPARE PART elbow, Serial Range: -3.932.239

2шт.

11

D92453

ADAPTER

, Serial Range: -3.932.239

1шт.

12

D120555

STUD

2шт.

13

D120556

STUD

4шт.

14

905834R1

THIN NUT,M12 x 1.25, Thin

6шт.

15

REF

INSTRUCTION

SHAFT drive, See Figure 180

1шт.

See driveshaft shield figure 177A

1шт.

16

A156873

PLUG, DRAIN,M22 x 1.5

If used

1шт.
