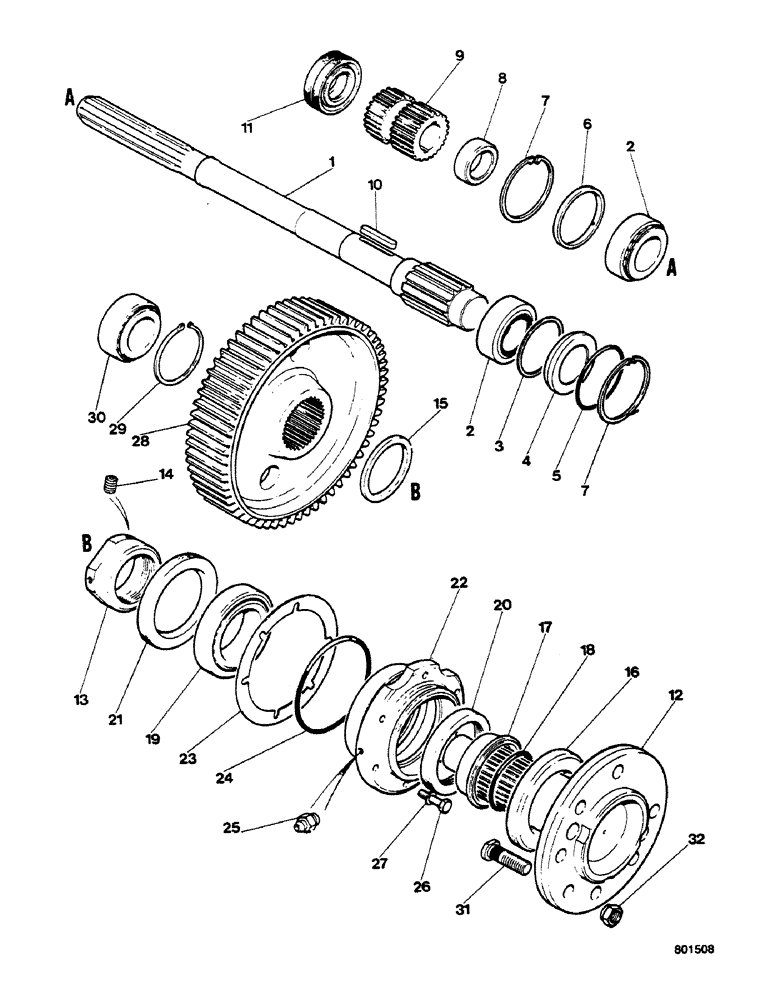

Запчасти Case 580G (170) - TRANSAXLE - SHAFTS AND GEARS FOR FINAL DRIVES (06) - POWER TRAIN

1

K929253

SHAFT

10 teeth

2шт.

2

K19186

BEARING, ROLLER

4шт.

3

K907514

SHIM,.003" Thk

1шт.

3

K907515

SHIM,.010" Thk

1шт.

4

K929045

COVER

end

2шт.

5

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

2шт.

6

K904256

SPACER

2шт.

7

K13042

RING, SNAP

RING SNAP

4шт.

8

K627237

BUSHING

2шт.

9

K940854

HUB

2шт.

10

K622324

KEY

4шт.

11

K13353

SEAL,44.45mm ID x 80.96mm OD x 12.7mm Thk

4шт.

12

K965006

SHAFT ASSY.

complete, Includes: Ref. 13 - 15

2шт.

13

K945534

LOCK NUT

1шт.

14

K606408

SCREW

set

1шт.

15

K955057

WASHER

0.230"

1шт.

15

K955058

WASHER

0.206"

1шт.

16

K924150

SHIELD

COVER dust

2шт.

17

K924148

COLLAR

2шт.

18

K623698

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

2шт.

19

A28134

BEARING CUP

BEARING roller A7893

2шт.

20

K623432

SEAL,101.6mm ID x 127mm OD x 15.88mm Thk

2шт.

21

K623457

OIL SEAL

2шт.

22

K945535

HOUSING

right

1шт.

22

K945536

HOUSING

left

1шт.

23

K940849

SHIM

0.003"

1шт.

23

K940848

SHIM,0.13mm Thk

0.005"

1шт.

23

K940847

SHIM,0.38mm Thk

0.015"

1шт.

23

K940846

SHIM

0.030"

1шт.

24

K623539

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

26

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

12шт.

27

92-7

LOCK WASHER,7/16"

12шт.

28

K949382

WHEEL

49 teeth

2шт.

29

K621565

RING, SNAP

RING SNAP

2шт.

30

K19186

BEARING, ROLLER

2шт.

31

K611464

BOLT

16шт.

32

K617168

WHEEL NUT

16шт.
