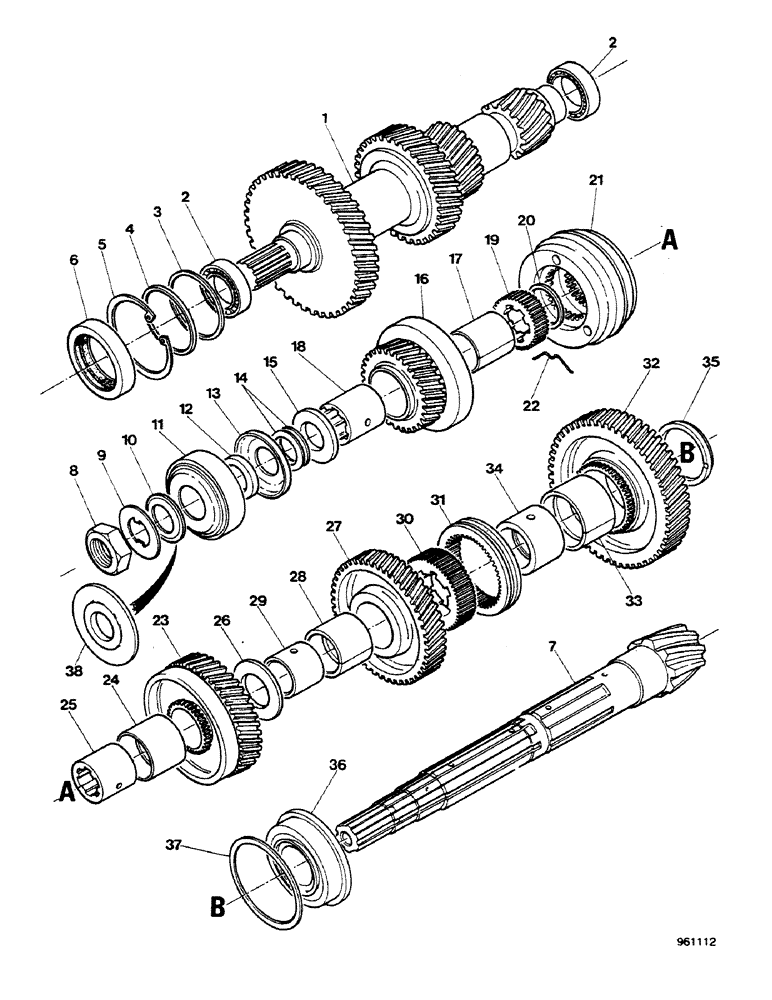

Запчасти Case 580G (162) - TRANSAXLE - SHAFTS AND GEARS FOR GEARBOX (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
K205630
SHAFT
drive
1шт.
1
K205635
SHAFT
SPARE PART drive, For transmission with emergency brake
1шт.
2
K620046
BEARING
roller
2шт.
3
K201239
SHIM,.002" Thk
1шт.
3
K201240
SHIM,.005" Thk
1шт.
3
K201241
SHIM,.010" Thk
1шт.
3
K201242
SHIM,.030" Thk
1шт.
4
K627250
BUSHING
1шт.
5
K690480
RING, SNAP
RING SNAP
1шт.
6
K623488
OIL SEAL
1шт.
7
REF
INSTRUCTION
BEVEL PINION AND GEAR, See Figure 164
1шт.
8
K921817
NUT
1шт.
9
K626438
WASHER
tab
1шт.
10
K921819
WASHER
If used order K206738 (Ref. 38)
1шт.
11
K620160
BEARING
roller
1шт.
12
K627220
BUSHING
1шт.
13
K623491
RING
If used order K206738 (Ref. 38)
1шт.
14
K626972
SHIM,.002" Thk
1шт.
14
K626973
SHIM,.005" Thk
1шт.
14
K626974
SHIM,.010" Thk
1шт.
14
K626975
SHIM,.030" Thk
1шт.
15
K627469
WASHER
thrust
1шт.
16
K206236
GEAR
4th, Includes: Ref. 17
1шт.
16
K201996
GEAR
4th, Includes: Ref. 17, For transmission with emergency brake
1шт.
17
K621306
BEARING
1шт.
18
K201992
BUSHING
SPARE PART carrier
1шт.
19
K928226
GEAR
2шт.
20
K627230
BUSHING
1шт.
21
K207796
GEAR
sliding, Includes: Ref. 22
1шт.
22
K926266
SPRING
6шт.
23
K206235
GEAR
3rd, Includes: Ref. 24
1шт.
24
K621306
BEARING
1шт.
25
K201991
BUSHING
carrier
1шт.
26
K627470
WASHER
thrust
1шт.
27
K206234
GEAR
2nd, Includes: Ref. 28
1шт.
28
K621308
BEARING
SPARE PART
1шт.
29
K201990
BUSHING
carrier
1шт.
30
K210028
GEAR
1шт.
31
K917109
GEAR
sliding
1шт.
32
K206233
GEAR
1st, Includes: Ref. 33
1шт.
33
K621307
BEARING
SPARE PART
1шт.
34
K201989
BUSHING
SPARE PART carrier
1шт.
35
K928637
COLLAR
WASHER
1шт.
36
K620158
TAPERED BEARING
1шт.
37
K626986
SHIM,.030" Thk
1шт.
37
K626985
SHIM
0.015"
1шт.
37
K626984
SHIM,.005" Thk
1шт.
37
K626983
SHIM,.002" Thk
1шт.
38
K206738
WASHER
RETAINER oil
1шт.
Used in place of Ref. 10 and 13 (If used)
1шт.
