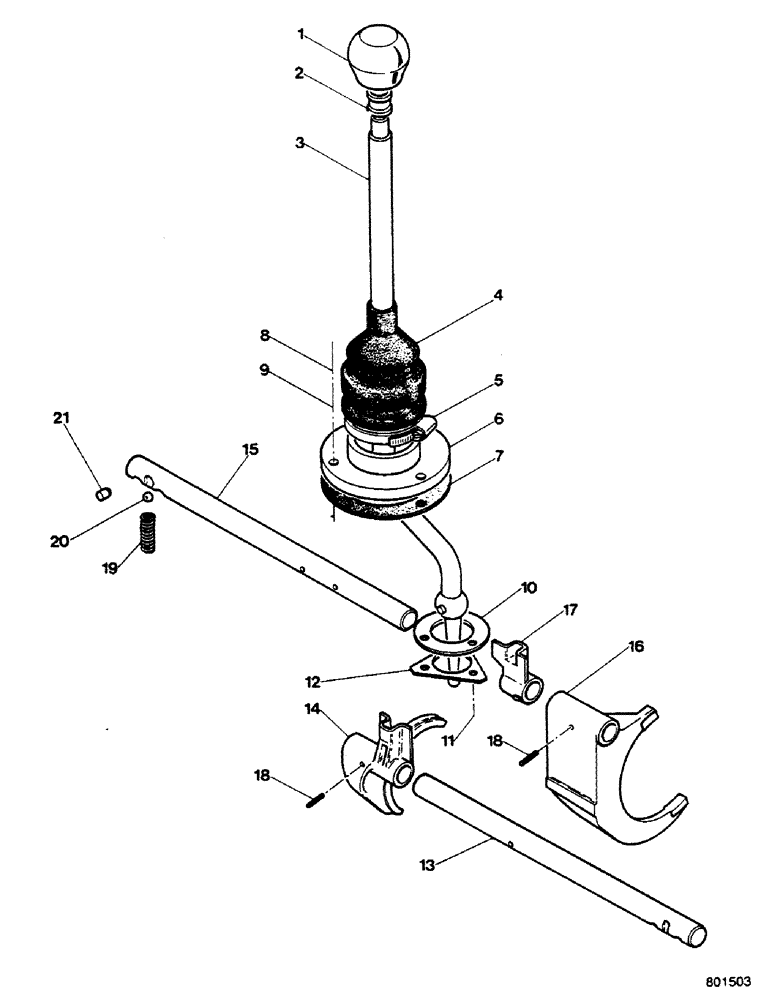

Запчасти Case 580G (160) - TRANSAXLE - GEAR SELECTOR MECHANISM (06) - POWER TRAIN

1

K203750

KNOB

1шт.

2

K628472

RING

retainer

1шт.

3

K203701

SELECTOR

SPARE PART LEVER - shift

1шт.

4

K929631

BOOT

BOOT

1шт.

5

K622030

CLAMP

1шт.

6

K929630

HOUSING

1шт.

7

K901835

GASKET

1шт.

8

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

9

92-4

LOCK WASHER,1/4"

3шт.

10

K903074

SUPPORT

PLATE

1шт.

11

K603630

SCREW

set

3шт.

12

K904386

WASHER

tab

1шт.

13

K201870

SELECTOR

SHAFT - 1st, 2nd

1шт.

14

K201869

SELECTOR

FORK - 1st, 2nd

1шт.

15

K201871

SELECTOR

SPARE PART SHAFT- 3rd, 4th

1шт.

16

K940986

SHIFTER FORK

3rd, 4th

1шт.

17

K950359

SELECTOR

JAW - 3rd, 4th

1шт.

18

K623887

PIN,5.21mm OD x 25.4mm L

roll

3шт.

19

K13507

SPRING

2шт.

20

K13506

BALL

2шт.

21

K30430

LOCKING DEVICE

GEAR

1шт.
