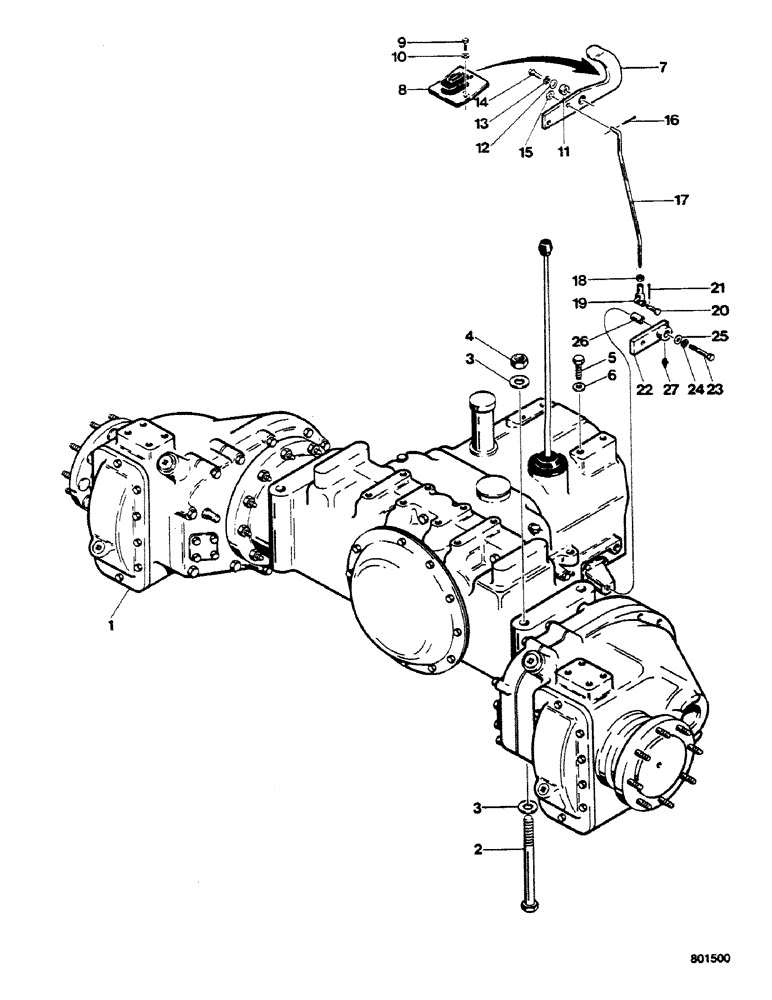

Запчасти Case 580G (154) - TRANSAXLE MOUNTING AND DIFFERENTIAL LOCK CONTROL (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSAXLE, See Figure 156 - 174

1шт.

2

26-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 8

4шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

8шт.

4

129-185

NUT,1"-8, G8

4шт.

5

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

6

D70730

WASHER

2шт.

7

D83664

PEDAL

1шт.

8

D89325

BOOT

1шт.

9

163-15

SCREW,Hex, #10 - 24 x 5/8"

3шт.

10

195-513

WASHER,#10

flat

3шт.

11

D120183

BUSHING

SPARE PART

1шт.

12

D64050

WASHER

1шт.

13

92-8

LOCK WASHER,1/2"

1шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

15

195-25

WASHER,3/8"

1шт.

16

132-26

COTTER PIN

3/32" x 3/4"

1шт.

17

D88861

ROD

SPARE PART

1шт.

18

25-116

NUT,Hex, 3/8"-24, G5

1шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

1шт.

21

132-26

COTTER PIN

3/32" x 3/4"

1шт.

22

E44124

LEVER

1шт.

23

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

195-33

WASHER,1/2"

flat

1шт.

26

D67690

BUSHING

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
