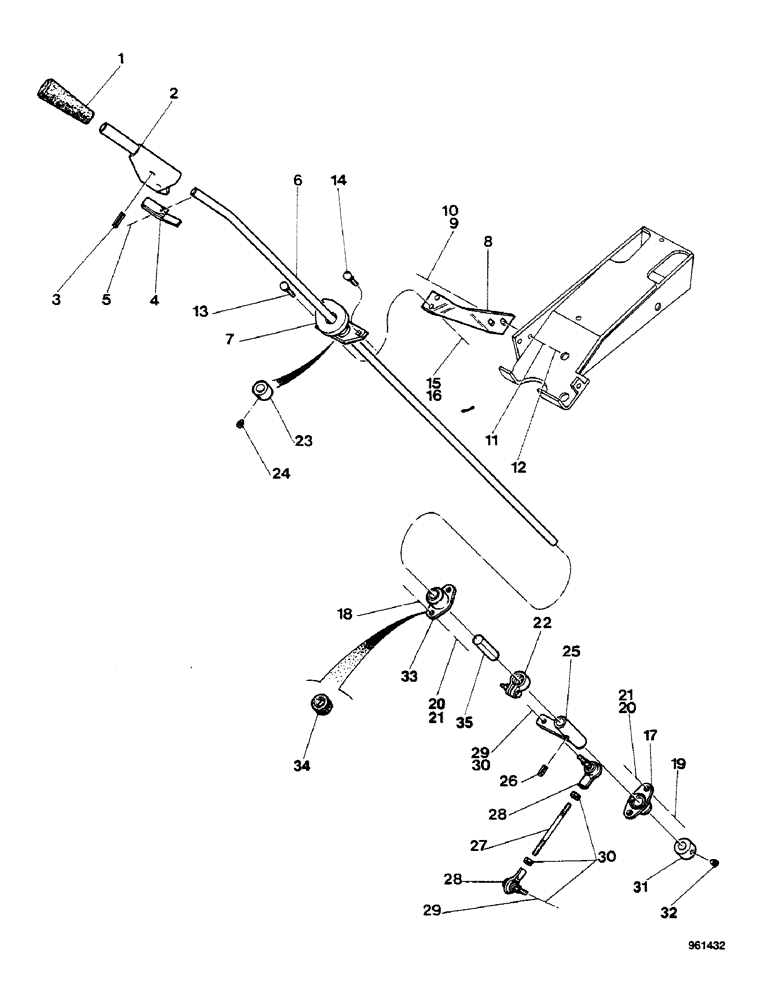

Запчасти Case 580G (150) - SHUTTLE CONTROL AND LINKAGE (06) - POWER TRAIN

1

D86694

KNOB

1шт.

2

D86946

LEVER

control

1шт.

3

138-2053

PIN,1/4" x 1 1/4", Coiled

1шт.

4

D125772

SPRING

1шт.

5

163-28

SCREW,Hex Wshr Hd, #8 - 32 x 1/4", Gr 5

1шт.

6

D89834

ROD

, Serial Range: -3.936.533

1шт.

6

D125431

ROD

, Start Serial: 3.936.534

1шт.

7

D89835

BRACKET

SPARE PART

1шт.

8

D88156

SUPPORT

If used

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used

2шт.

10

195-25

WASHER,3/8"

If used

2шт.

11

92-6

LOCK WASHER,3/8"

If used

2шт.

12

25-106

NUT,3/8"-16, G5

If used

2шт.

13

111-243

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

If used

2шт.

14

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

2шт.

15

195-21

WASHER,5/16"

Flat, If used

3шт.

16

131-651

NUT,5/16"-18, GB

NUT, If used

3шт.

17

L15401

BEARING,15.89mm ID

1шт.

18

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used

2шт.

19

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

20

92-5

LOCK WASHER,5/16"

2-4шт.

21

9635082

NUT,5/16" - 18, Gr 5

2-4шт.

22

D71880

CLAMP,22.23mm

1шт.

23

D81756

COLLAR

Includes: Ref. 24

1шт.

24

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

set

1шт.

25

D83274

LEVER

1шт.

26

138-150

LOCK PIN,5/16" x 13/16", Slotted

1шт.

27

D89833

ROD

1шт.

28

D63154

JOINT,1/4" - 28 x 1-1/3"

ball

2шт.

29

92-4

LOCK WASHER,1/4"

2шт.

30

25-114

NUT,1/4"-28, G5

4шт.

31

D81756

COLLAR

Includes: Ref. 32, Serial Range: -3.936.533

1шт.

32

178-888

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

set, Serial Range: -3.936.533

1шт.

33

L15401

BEARING,15.89mm ID

, Serial Range: -3.936.533

1шт.

34

D51643

GROMMET

, Start Serial: 3.936.534

1шт.

35

E45957

SPACER

1шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.
