Запчасти Case 580G (146) - POWER SHUTTLE - INPUT AND FORWARD CLUTCH (06) - POWER TRAIN

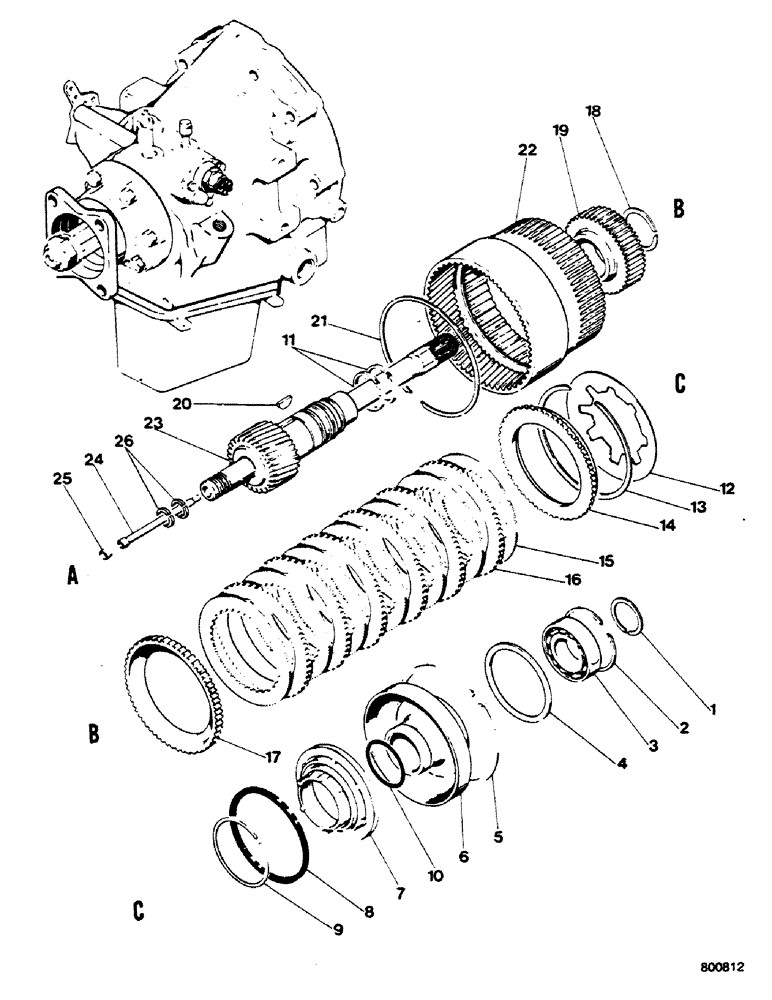

Схема запчастей Case 580G - (146) - POWER SHUTTLE - INPUT AND FORWARD CLUTCH (06) - POWER TRAIN
2
1
16
9
4
17
b
14
8
c
23
5
18
21
22
25
11
15
3
19
7
26
6
20
c
13
a
b
12
10
24

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

POWER SHUTTLE ASSY (See Figure 138 - 148), Includes: Ref. 1 - 26

1шт.

1

D50042

RING

snap

1шт.

2

D50043

RING

snap

1шт.

3

D50044

BALL BEARING

ball

1шт.

4

D50045

WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk

thrust

1шт.

5

D50046

RING

snap

1шт.

6

D50075

CYLINDER

1шт.

7

D70670

PISTON

1шт.

8

D50077

RING

snap

1шт.

9

D50078

RING,3.17mm Thk x 77.22mm ID, 40 Duro

snap

1шт.

10

D50079

O-RING,0.139" Thk x 2" ID

1шт.

11

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

snap

2шт.

12

D50047

BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk

1шт.

13

D50048

CIRCLIP

1шт.

14

D50081

PLATE,139.12mm OD

pressure

1шт.

15

D70672

PLATE

7шт.

16

D50083

PLATE

6шт.

17

D50084

PLATE,139.45mm OD

pressure

1шт.

18

D50049

RING

snap

1шт.

19

D50050

HUB

For power-shuttle D88050

1шт.

19

D75853

HUB

For power-shuttle D135731 and D140175

1шт.

20

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

21

CASD50051

RING

RING snap, Serial Range: (.050"-.054")

1шт.

21

D78397

RING

snap, Serial Range: (.062"-.066")

1шт.

21

D50052

RING

snap, Serial Range: (.074"-.078")

1шт.

21

D78398

RING

snap, Serial Range: (.084"-.088")

1шт.

21

D50053

RING

snap, Serial Range: (.096"-.100")

1шт.

22

D50054

GEAR

RING

1шт.

D70666

GEAR

SHAFT ASSY, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT

1шт.

24

N7043

TUBE

1шт.

25

D50086

PLUG

1шт.

26

D70668

RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk

2шт.

Выбрано товаров: 33
