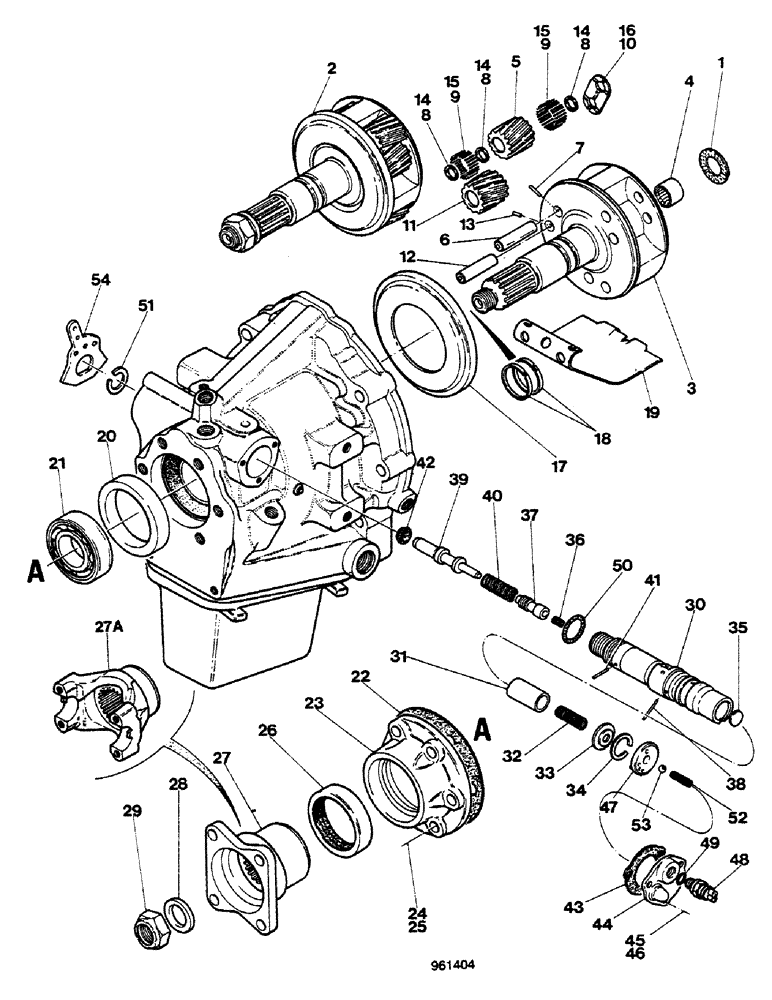

Запчасти Case 580G (142) - POWER SHUTTLE - PINION CAGE, OUTPUT SHAFT, AND CONTROL VALVE (06) - POWER TRAIN

REF

INSTRUCTION

POWER SHUTTLE ASSY, See Figure 138 - 148, Includes: Ref. 1 - 29

1шт.

1

D50055

WASHER, THRUST,22.38mm ID x 44.45mm OD x 1.6mm Thk

1шт.

2

D70665

GEAR

CAGE AND SHAFT ASSY, Includes: Ref. 3 - 17

1шт.

3

NSS

NOT SOLD SEPARAT

CAGE AND SHAFT

1шт.

4

H747964

NEEDLE BEARING,Needle, 20.64mm ID x 26.99mm OD x 22.23mm W

needle

1шт.

D50030

GEAR

KIT, Includes: Ref. 5 - 10

3шт.

5

NSS

NOT SOLD SEPARAT

PINION

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

7

NSS

NOT SOLD SEPARAT

PIN

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER

3шт.

9

NSS

NOT SOLD SEPARAT

ROLLER

48шт.

10

NSS

NOT SOLD SEPARAT

PLATE

2шт.

D50031

KIT

KIT, Includes: Ref. 11 - 16

3шт.

11

NSS

NOT SOLD SEPARAT

PINION

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

13

NSS

NOT SOLD SEPARAT

PIN

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER

3шт.

15

NSS

NOT SOLD SEPARAT

ROLLER

48шт.

16

NSS

NOT SOLD SEPARAT

PLATE

2шт.

17

D50087

RING

1шт.

18

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

snap

2шт.

19

D50056

GUARD

1шт.

20

D50057

SLEEVE

spacer

1шт.

21

40011

BEARING,1.378" ID x 3.1496" OD x 0.8268"

ball

1шт.

22

D50058

GASKET

1шт.

23

D50059

BEARING HOUSING

RETAINER

1шт.

24

92-7

LOCK WASHER,7/16"

6шт.

25

13-718

SCREW,Hex, 7/16" - 14 x 1 1/8", Gr 5

6шт.

26

D50060

SEAL,53.98mm ID x 77.93mm OD x 13.11mm Thk

1шт.

27

D73776

FLANGE

Used with D88050

1шт.

27a

D124144

FLANGE

Used with D135731 and D140175

1шт.

28

D65247

WASHER

1шт.

29

131-37

LOCK NUT,3/4"-16

1шт.

REF

INSTRUCTION

POWER SHUTTLE ASSY, (See Figure138-148), Includes: Ref. 30 - 54

1шт.

D77473

VALVE

ASSY, Includes: Ref. 30 - 42, N13639 + (2) D142214

1шт.

N13639

VALVE

ASSY, Includes: Ref. 30 - 42

1шт.

N14765

VALVE BODY

ASSY, Includes: Ref. 30 - 42, Used with Schuttle D140175

1шт.

30

NSS

NOT SOLD SEPARAT

BODY

1шт.

31

D50089

VALVE

1шт.

32

D50090

SPRING

1шт.

33

D50091

RETAINER,9.53mm ID x 28.42mm OD x 1.34mm Thk

1шт.

34

D50092

RING

snap

1шт.

35

41-12

PLUG,Exp, 3/4"

1шт.

36

D77476

SPRING

1шт.

37

D77474

SPOOL

1шт.

38

135-198

GROOVED PIN,5/64" x 1", Type B

1шт.

39

D75488

PLUNGER

Not for valve assy. N14765

1шт.

40

D77475

SPRING

Not for valve assy. N14765

1шт.

41

138-59

LOCK PIN,1/8" x 7/8", Slotted

Not for valve assy. N14765

1шт.

42

D75489

SEAL,11.11mm ID x 17.46mm OD x 3.17mm Thk

oil, See Ref. 42A, Not for valve assy. N14765

1шт.

42a

D75492

PLASTIC RING

TOOL for Ref. 42 (Not shown), Not for valve assy. N14765

1шт.

43

D50066

GASKET,0.41mm Thk

1шт.

44

D86488

COVER

1шт.

45

92-4

LOCK WASHER,1/4"

3шт.

46

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

3шт.

47

D86489

CAM

1шт.

48

S113435

SWITCH

Includes: Ref. 49

1шт.

49

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

50

D37156

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

D142214

1/2шт.

50

D142214

O-RING,1.051" ID x 1.191" OD

2шт.

51

A75171

SNAP RING,#112, 1.060", Ext

1шт.

52

S47892

SPRING

1шт.

53

211-9

BALL,5/16" Dia

1шт.

54

D77621

LEVER

1шт.
