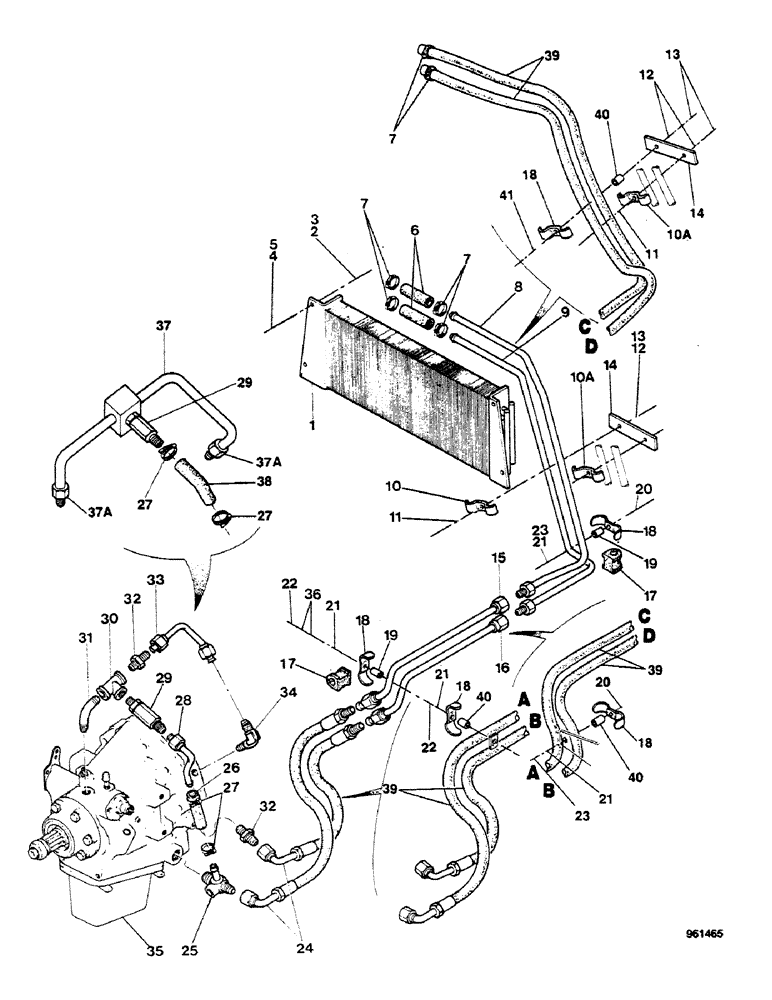

Запчасти Case 580G (136) - POWER SHUTTLE - COOLING SYSTEM (06) - POWER TRAIN

1

E46051

COOLER

oil, E46051

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

flat

4-5шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

E45965

2шт.

6

E45965

LARGE HOSE

HOSE,LARGE

2шт.

7

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4-2шт.

8

D91882

TUBE

1шт.

9

D91894

TUBE

1шт.

10

D90270

CLAMP

1шт.

10a

D93623

CLAMP

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

92-5

LOCK WASHER,5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

D90271

PLATE

SPARE PART

1шт.

15

D91880

TUBE

SPARE PART

1шт.

16

D91892

TUBE

SPARE PART

1шт.

17

D67296

GROMMET

INSULATOR

4шт.

18

D68646

CLAMP

2-3шт.

19

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

2шт.

20

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

23

25-106

NUT,3/8"-16, G5

1шт.

24

D69051

HOSE

2шт.

25

D68972

CONNECTOR, ELEC

CONNECTOR

1шт.

26

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

E45965

1шт.

26

E45965

LARGE HOSE

HOSE,LARGE

1шт.

27

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

28

D68914

TUBE,12 mm OD x 111, 75 mm L

1шт.

29

D48540

VALVE POPPET

relief

1шт.

D133321, E45669 and 215-253 (2)

1шт.

29

D133321

VALVE POPPET

relief

1шт.

Delivered with Power shuttle D135731 and D140175

1шт.

30

221-423

TEE,3/8" NPT

1шт.

31

D48539

FITTING

elbow

1шт.

32

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

2шт.

33

D68262

TUBE

1шт.

34

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

1шт.

35

REF

INSTRUCTION

SHUTTLE power (See Figure 138 - 148)

1шт.

36

193-72

LOCK WASHER

2шт.

37

D135703

PIPE ASSY.

Includes: Ref. 37A

1шт.

Delivered with Power shuttle D135731 and D140175

1шт.

37a

222-2000

CONNECTOR, ELEC

CONNECTOR

2шт.

38

E45669

LARGE HOSE

HOSE,LARGE

1шт.

39

E46165

HOSE

2шт.

40

D76175

BUSHING

3шт.

41

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.
