Запчасти Case 580G (134) - TORQUE CONVERTER AND TACHOMETER DRIVE (06) - POWER TRAIN

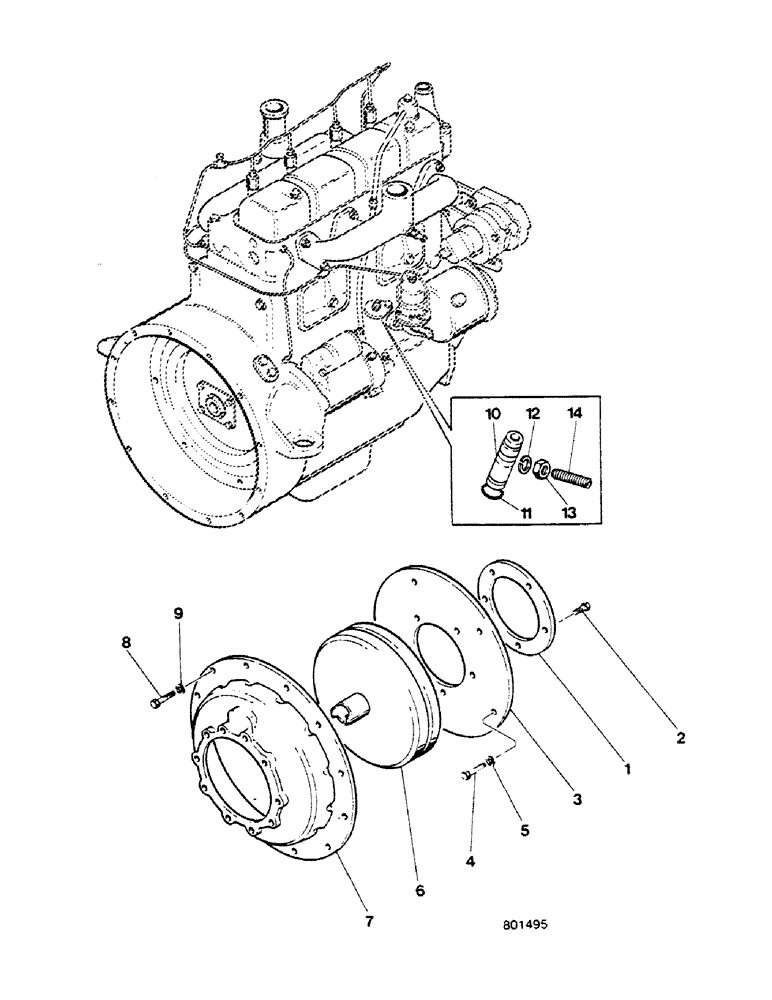

Схема запчастей Case 580G - (134) - TORQUE CONVERTER AND TACHOMETER DRIVE (06) - POWER TRAIN
7
13
6
10
9
11
5
3
4
8
2
1
12
14

Артикул

Название

Примечание

Количество

1

D81592

PLATE

1шт.

2

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

6шт.

3

A15670

PLATE

1шт.

4

121-103

BOLT,Lock Place, Hex, 5/16" - 18 x 5/8", Gr 8

6шт.

5

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

6шт.

6

103293A1

CONVERTER

Torque; Replaces D126473, D81693, or D123686 This Application

1шт.

7

D48445

HOUSING

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

9

92-6

LOCK WASHER,3/8"

12шт.

10

K928253

CONNECTOR, ELEC

CONNECTOR

1шт.

11

K16351

O-RING,3.53mm Thk x 24.99mm ID

2шт.

12

92-7

LOCK WASHER,7/16"

1шт.

13

25-147

JAM NUT,Jam, 7/16"-14, G5

1шт.

14

K928254

SCREW,7/16" - 14 x 1 5/16"

set

1шт.

REF

INSTRUCTION

CABLE tachometer, (See Figure 72) (Not shown)

1шт.

Выбрано товаров: 15
