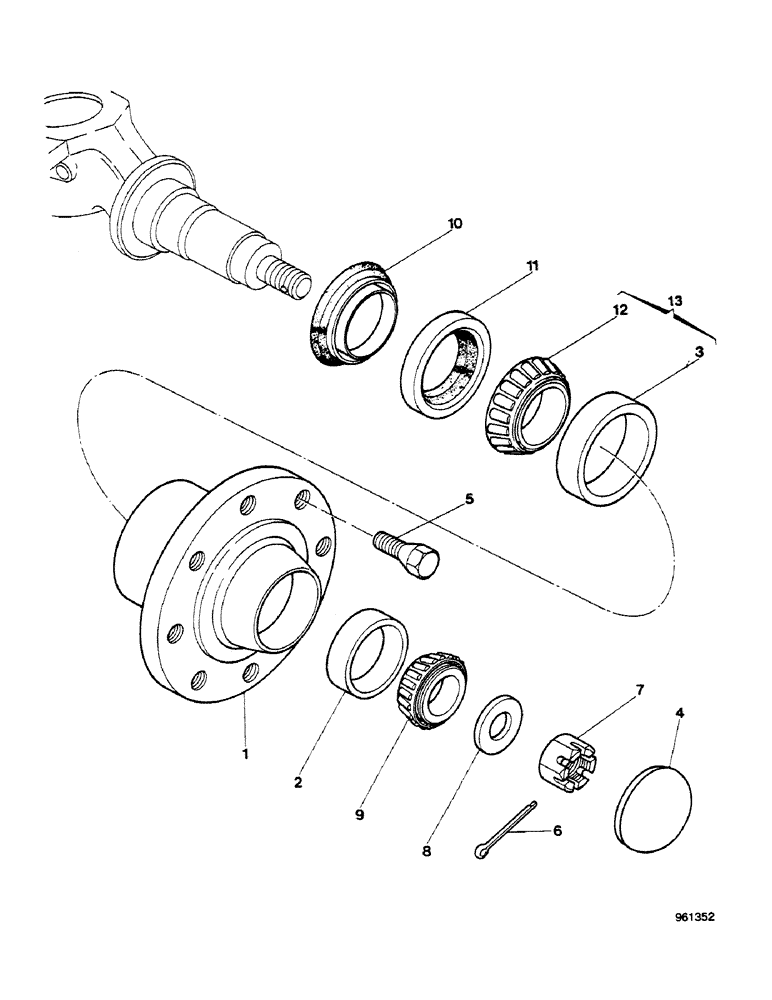

Запчасти Case 580G (128) - FRONT WHEEL HUB AND BEARINGS - 2 WHEEL DRIVE (05) - STEERING

A66759

HUB

ASSY, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

HUB

1шт.

2

G15214

BEARING CUP

1шт.

3

A61446

BEARING CUP

E45214

1шт.

4

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

2шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

16шт.

6

132-99

COTTER PIN,3/16" x 2"

2шт.

7

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

2шт.

8

D74951

WASHER

2шт.

9

G15215

ROLLER BEARING

taper

2шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

2шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

2шт.

12

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

taper, E45214

2шт.

13

E45214

BEARING

taper

2шт.
