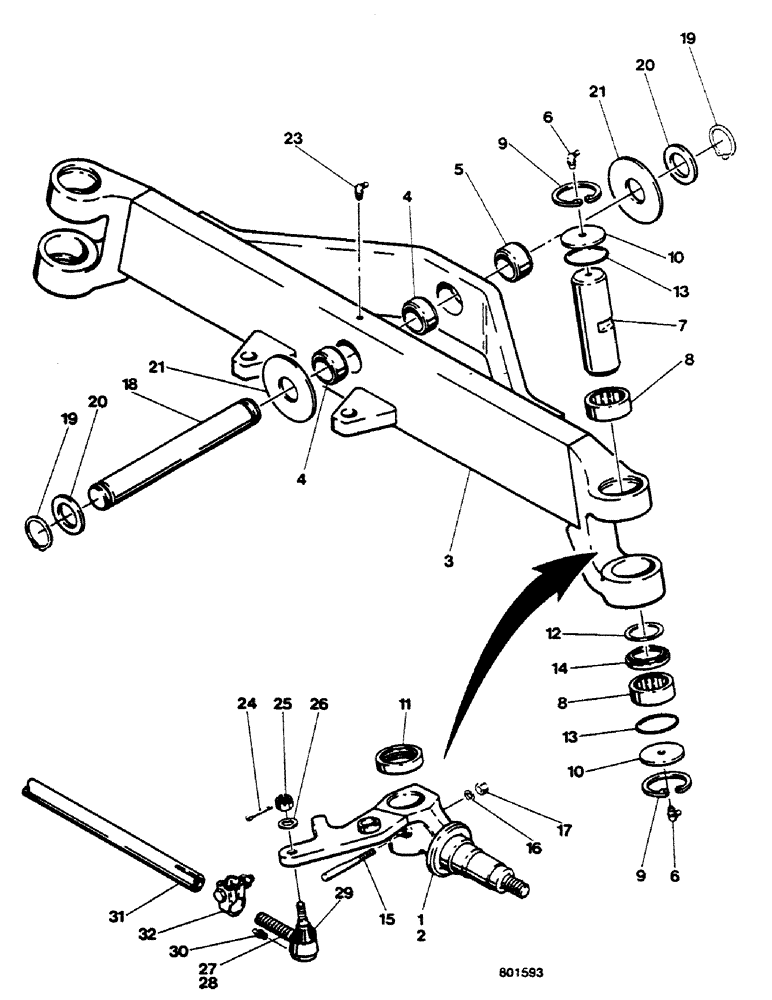

Запчасти Case 580G (126) - FRONT AXLE AND SPINDLES - 2 WHEEL DRIVE (05) - STEERING

1

D89638

STEERING KNUCKLE

SPINDLE RH

1шт.

2

D89639

STEERING KNUCKLE

SPINDLE LH

1шт.

3

D65948

AXLE, FRONT

Includes: Ref. 4 and 5

1шт.

4

D69222

BUSHING

2шт.

5

D69221

BUSHING,45.23mm ID x 57.16mm OD x 25mm L

1шт.

6

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

4шт.

7

D72337

PIN,50.8mm OD x 168.91mm L

2шт.

8

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

needle

4шт.

9

A27463

SNAP RING,2.375", Int, #237

4шт.

10

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

4шт.

11

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

roller

2шт.

12

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

thrust

2шт.

13

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

4шт.

14

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

2шт.

15

D57486

PIN

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

25-118

NUT,1/2"-20, G5

2шт.

18

D69220

PIN

1шт.

19

D25280

SNAP RING,#175, Ext

2шт.

20

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat

2шт.

21

E36365

WASHER

special

1шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

24

132-50

COTTER PIN,1/8" x 1 1/4"

2шт.

25

25-1310

SLOTTED NUT,5/8"-18, G5

2шт.

26

195-2084

WASHER,13/16" x 1 1/4" x .067", HDN

flat

1шт.

27

D88491

BALL JOINT,7/8" - 18 x 3-3/4"

RH, Includes: Ref. 29 and 30

1шт.

28

D88492

BALL JOINT,7/8" - 18 x 3-3/4"

LH, Includes: Ref. 29 and 30

1шт.

29

N7681

BOOT

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

31

D71885

TIE-ROD

TIE ROD

1шт.

32

D75809

CLAMP

2шт.
