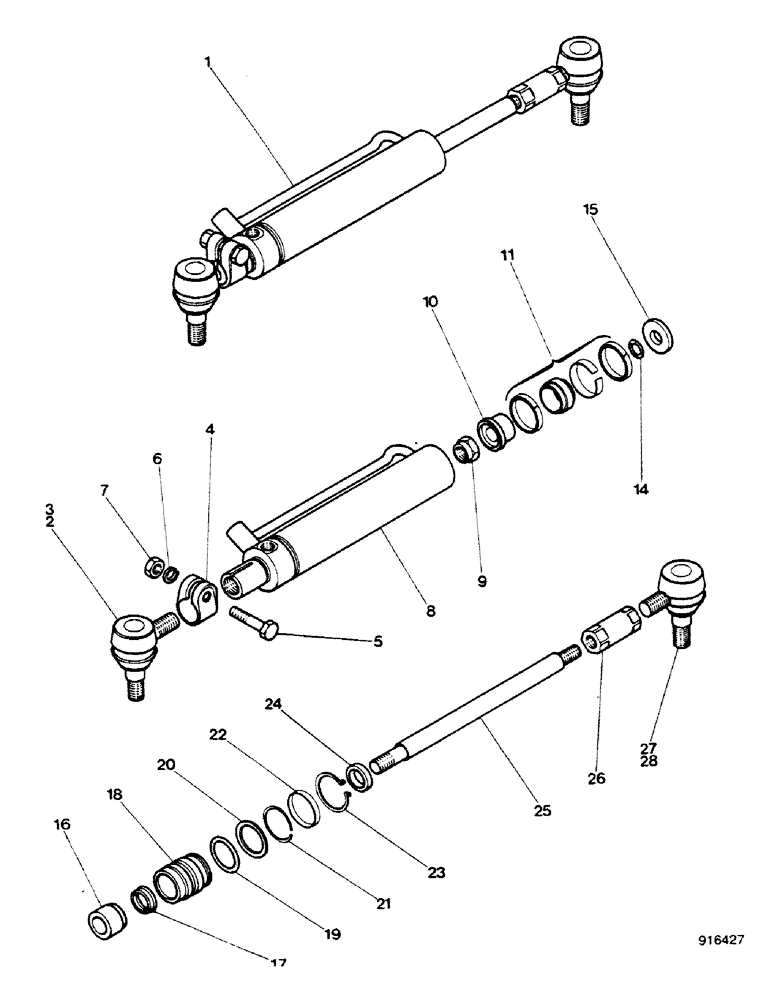

Запчасти Case 580G (125A) - STEERING CYLINDERS - 4 WHEEL DRIVE (05) - STEERING

1

E45638

CYLINDER BLOCK

ASSY, Includes: Ref. 2 - 28, E46345

2шт.

234449A1R

REMAN-HYD CYLINDER

580G , Reman For New P/N E45638

2шт.

234449A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

E46345

CYLINDER ASSY.

Includes: Ref. 2 - 28, D92099 See Figure 124

2шт.

234449A1R

REMAN-HYD CYLINDER

580G , Reman For New P/N E46345

2шт.

234449A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

A40962

BALL JOINT

Includes: Ref. 3, E46349

1шт.

2

E46349

BALL JOINT,11/16" - 18 x 2"

Includes: Ref. 3

1шт.

3

A41424

SEAL

BOOT, Used with A40962

1шт.

E42059

COLLAR CLAMP

ASSY, Includes: Ref. 4 - 7

1шт.

4

E42060

CLAMP

1шт.

5

E42061

SCREW

1шт.

6

E42062

WASHER

1шт.

7

825-1010

NUT,M10, Cl 8

1шт.

8

NSS

NOT SOLD SEPARAT

TUBE

1шт.

9

E42724

NUT

1шт.

10

E42726

PISTON

1шт.

11

E42041

PACKING

1шт.

Part of Gasket Kit, P/N E42040

1шт.

14

E42042

O-RING

1шт.

15

E42725

WASHER

1шт.

E42045

SEAL

GLAND ASSY, Includes: Ref. 16 - 24

1шт.

16

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

17

E42047

SEAL

1шт.

18

NSS

NOT SOLD SEPARAT

GLAND

1шт.

19

E42043

O-RING

1шт.

Part of Gasket Kit, P/N E42040

1шт.

20

E42044

RING

BUSHING

1шт.

Part of Gasket Kit, P/N E42040

1шт.

21

E42049

RING

1шт.

22

E42050

BUSHING

1шт.

23

E42051

RING

snap

1шт.

24

E42052

WIPER SEAL,18mm ID x 28mm OD x 7mm Thk

1шт.

E44250

ROD

ASSY, Includes: Ref. 25 - 28, E46347

1шт.

E46347

STEM

ASSY, Includes: Ref. 25 - 28

1шт.

25

NSS

NOT SOLD SEPARAT

ROD

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

27

NSS

NOT SOLD SEPARAT

JOINT ball, Includes: Ref. 28

1шт.

28

A41424

SEAL

BOOT, Used with A40962

1шт.

E42040

SEAL KIT

Includes: Ref. 11,19 and 20

1шт.
