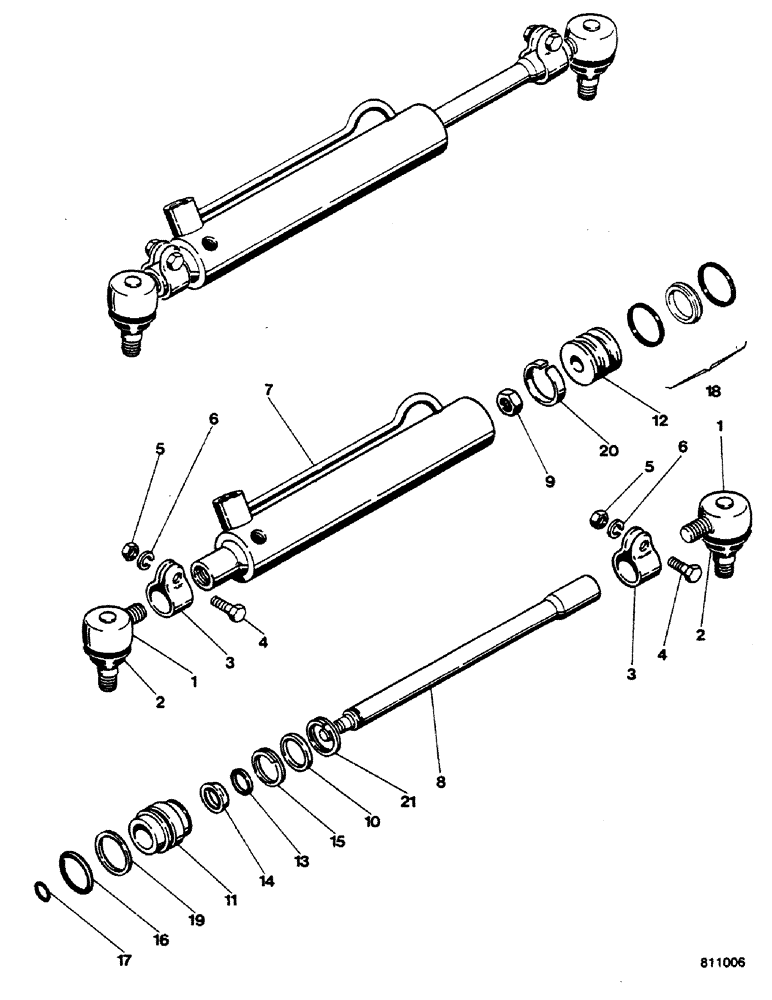

Запчасти Case 580G (124) - STEERING CYLINDERS - 4 WHEEL DRIVE (05) - STEERING

D92099

CYLINDER

ASSY, Includes: Ref. 1 - 21, E46345 See Figure 125A : D92099

2шт.

234449A1R

REMAN-HYD CYLINDER

580G , Reman For New P/N D92099

2шт.

234449A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

A40962

BALL JOINT

END ASSY, Includes: Ref. 2

2шт.

2

A41424

SEAL

BOOT

1шт.

3

A27080

CLAMP

ASSY, Includes: Ref. 4 - 6

2шт.

4

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE

1шт.

234449A1R

REMAN-HYD CYLINDER

580G, N.A. Only

1шт.

234449A1C

CORE-HYD CYLINDER

Return Number, For N.A. Only

1шт.

8

N7466

ROD

1шт.

9

131-1145

JAM NUT,5/8" - 18

1шт.

10

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

1шт.

11

D83189

GLAND

ASSY

1шт.

12

D83190

PISTON

1шт.

D83184

GASKET KIT

Includes: Ref. 13 - 20

1шт.

13

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL

1шт.

15

A44652

SNAP RING,#150, 1.591", Int, Spiral

lock

1шт.

16

S6582

O-RING,1.234" ID x 1.512" OD x 0.139"

1шт.

17

A64436

O-RING,0.549" ID x 0.755" OD

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL

1шт.

19

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

SEALRING backup

1шт.

20

NSS

NOT SOLD SEPARAT

RING

1шт.

21

A44654

SNAP RING,#125, 1.188", Ext Spiral

lock

1шт.
