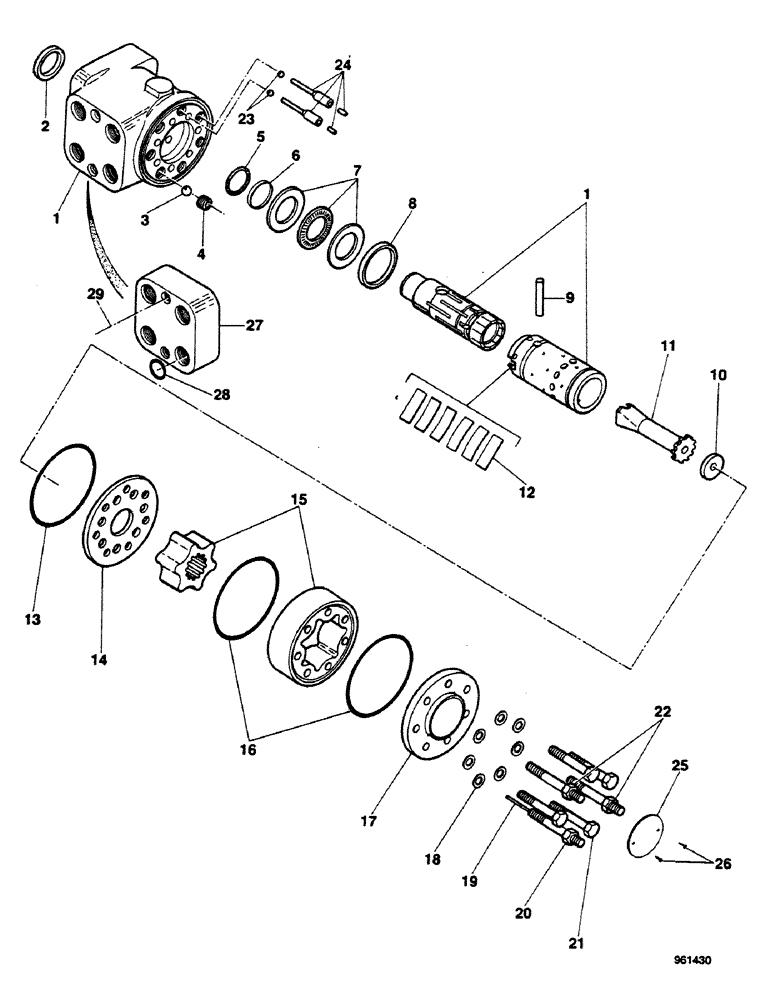

Запчасти Case 580G (121A) - MANUAL STEERING PUMP , STARTING FROM NO. 3.989.730 D AND OTHER COUNTRIES, STARTING FROM NO. 3.989.98 (05) - STEERING

E45950

PUMP

manual steering (DANFOSS) type : OSCP 125 OR, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING spool and sleeve

1шт.

2

V35600

SEAL

1шт.

Part of Seal Kit, P/N 3141548R91

1шт.

3

3112270R1

BALL

1шт.

4

3112272R1

BUSHING

retainer

1шт.

5

V35610

O-RING

1шт.

Part of Seal Kit, P/N 3141548R91

1шт.

6

V35611

RING

snap

1шт.

Part of Seal Kit, P/N 3141548R91

1шт.

7

N14218

BEARING ASSY

thrust

1шт.

8

3112264R1

RING

1шт.

9

3112269R1

PIN

1шт.

10

N14220

SPACER

1шт.

11

538915R1

DRIVE SHAFT

input

1шт.

12

K964157

SPRING

KIT

1шт.

13

V35603

O-RING,1.5mm Thk x 80.5mm ID

1шт.

Part of Seal Kit, P/N 3141548R91

1шт.

14

3112276R1

PLATE

distributor

1шт.

15

N14221

ROTOR

SET

1шт.

16

V35605

O-RING

2шт.

Part of Seal Kit, P/N 3141548R91

1шт.

17

3112273R1

COVER

1шт.

18

538920R1

WASHER

7шт.

Part of Seal Kit, P/N 3141548R91

1шт.

19

3112271R1

PIN, ROLL

1шт.

20

E46550

SCREW

special

1шт.

21

E46551

SCREW

4шт.

22

E46552

SCREW

2шт.

23

N14222

BALL

2шт.

24

E46553

VALVE POPPET

PIN roll

2шт.

25

NSS

NOT SOLD SEPARAT

PLATE name

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW drive

2шт.

3141548R91

SEAL KIT

Includes: Ref. 2, 5, 6, 13, 16, 18

1шт.

27

E44784

VALVE

shock absorbing type : OVPK Series 1, if used, Includes: Ref. 28 and 29

1шт.

E46549

KIT

seals, if used, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING, if used

4шт.

29

NSS

NOT SOLD SEPARAT

BOLT, M10 x 1 x 40, if used

2шт.
