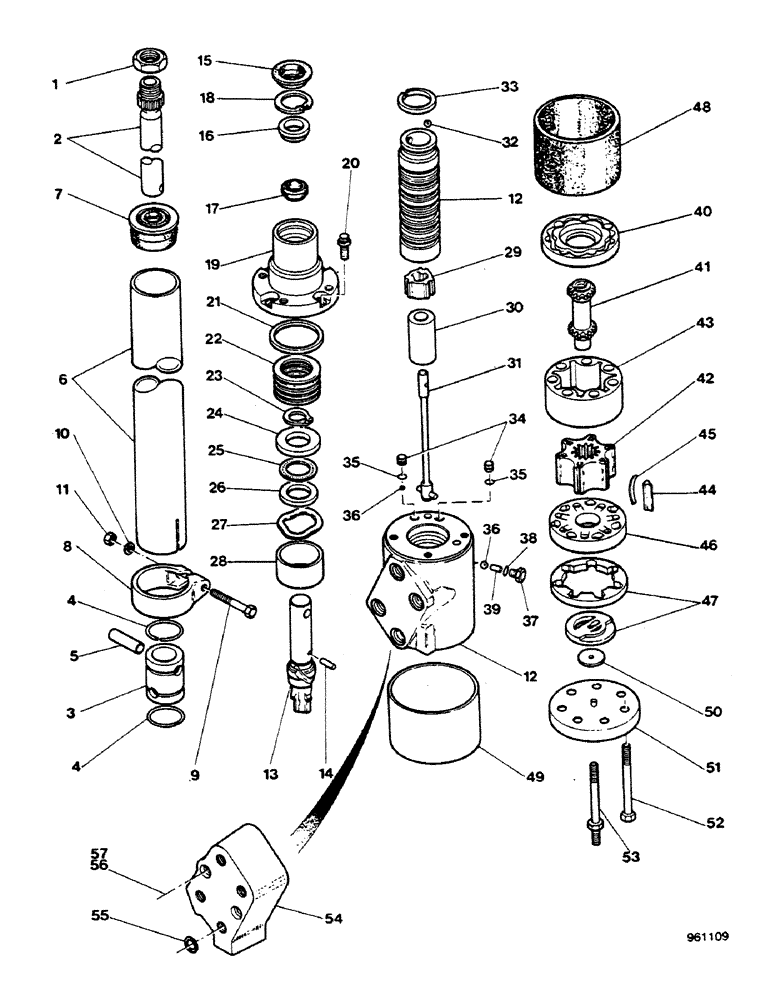

Запчасти Case 580G (118) - STEERING COLUMN AND MANUAL STEERING PUMP , UP TO NO. 3.989.729D AND OTHER COUNTRIES, UP TO 3.989.988 (05) - STEERING

E44963

PUMP

manual steering (REF. 27A 10 000 14), E46645

1шт.

E46645

PACKAGE

parts (For Danfoss manual Pump)

1шт.

Pump with shock absorbing valves

1шт.

E44964

PUMP

manual steering (REF. 27A 10 000 15), E46605

1шт.

Pump with shock absorbing valves

1шт.

E46605

PACKAGE

parts (For Danfoss manual Pump), Includes: Ref. 1 - 33

1шт.

Pump with shock absorbing valves

1шт.

1

A14567

JAM NUT

1шт.

2

N6797

SHAFT

1шт.

D72851

KIT

Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

COUPLING

1шт.

4

NSS

NOT SOLD SEPARAT

RING

2шт.

5

L35654

PIN

2шт.

N6798

TUBE

JACKET ASSY, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

JACKET

1шт.

7

L35675

SEAL

1шт.

L36557

CLAMP ASSY, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

CLAMP

1шт.

9

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

1шт.

10

193-29

LOCK WASHER,Int Tooth, 5/16"

1шт.

11

129-122

NUT,5/16"-24, G5

1шт.

12

NSS

NOT SOLD SEPARAT

BODY AND SPOOL

1шт.

13

A43551

SHAFT

input

1шт.

14

D53297

PIN

1шт.

A47038

SEAL KIT,Pump Shaft

Includes: Ref. 15 - 17

1шт.

15

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

1шт.

16

NSS

NOT SOLD SEPARAT

SPACER

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL

1шт.

18

A21145

SNAP RING,1.25, Int, #125

1.25", Int, #125

1шт.

19

D65139

COVER

1шт.

20

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

4шт.

21

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

1шт.

22

A44435

SHIM

KIT

1шт.

23

A43720

RING

snap

1шт.

24

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

thrust

1шт.

25

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

thrust

1шт.

26

F19634

BEARING WASHER

thrust

1шт.

27

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

1шт.

28

N6514

BUSHING

1шт.

29

A43554

RING

1шт.

30

L36011

BUSHING

1шт.

31

N6456

BAR

torsion

1шт.

32

211-9

BALL,5/16" Dia

1шт.

33

N6458

SPRING

1шт.

REF

INSTRUCTION

PUMP manual steering, Includes: Ref. 34 - 57

1шт.

L36015

PLUG

ASSY, Includes: Ref. 34 and 35

2шт.

34

NSS

NOT SOLD SEPARAT

PLUG

1шт.

35

A43729

O-RING

1шт.

36

211-7

BALL,1/4" Dia

If used

2шт.

F82943

VALVE

ASSY, Includes: Ref. 37 - 39, If used

1шт.

37

NSS

NOT SOLD SEPARAT

PLUG, Includes: Ref. 38

1шт.

38

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

39

NSS

NOT SOLD SEPARAT

PIN

1шт.

40

A43569

BUSHING

1шт.

41

A43568

LINK

1шт.

D78406

ROTOR

SET, Includes: Ref. 42 - 45

1шт.

42

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

43

NSS

NOT SOLD SEPARAT

STATOR

1шт.

44

NSS

NOT SOLD SEPARAT

VANE

6шт.

45

NSS

NOT SOLD SEPARAT

SPRING

6шт.

46

A43573

MANIFOLD

1шт.

47

A43574

COMMUTATOR

1шт.

48

D74440

SEAL

1шт.

49

D71315

RETAINER

1шт.

50

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

1шт.

51

A45182

COVER

1шт.

52

D71316

BOLT

4шт.

53

N6800

BOLT

3шт.

54

E43944

VALVE

SPARE PART For E44964

1шт.

55

E43947

O-RING

For E44964

4шт.

56

E43946

WASHER

SPARE PART For E44964

2шт.

57

E43945

BOLT

SPARE PART For E44964

2шт.
