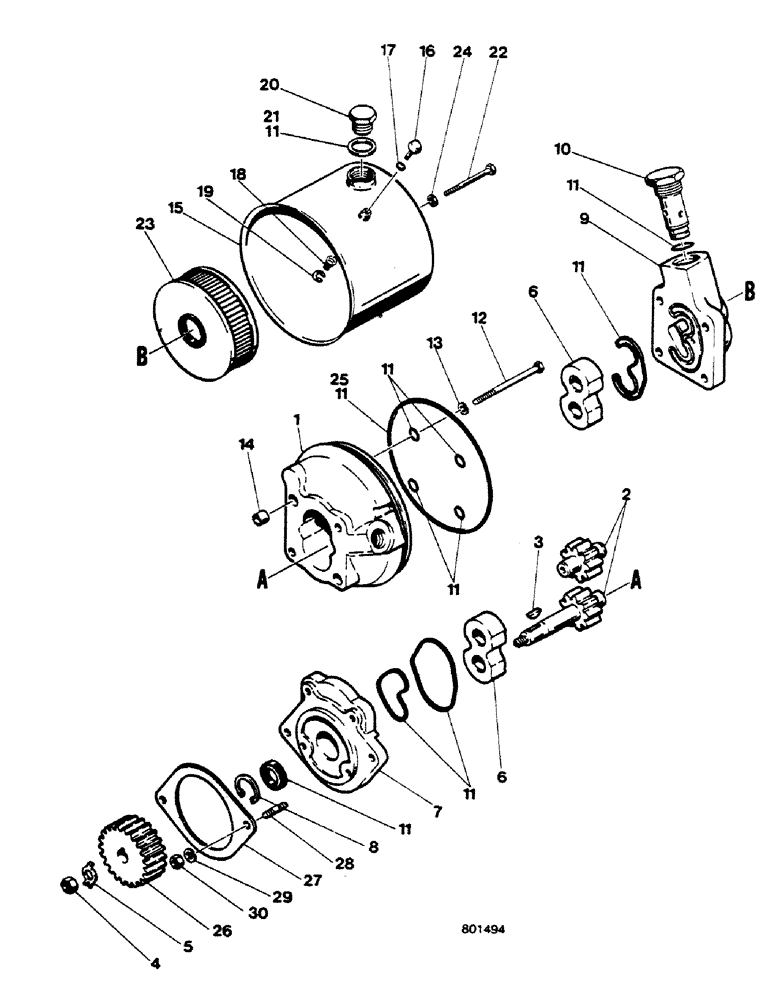

Запчасти Case 580G (116) - STEERING PUMP AND RESERVOIR (SEE OTHER OPTION FIGURE 117A) (05) - STEERING

K953152

PUMP

steering, Includes: Ref. 1 - 25

1шт.

For identification see name plate on pump

1шт.

K206595, K260490, See Figure 117A

1шт.

K206595R

REMAN-HYD PUMP

580G, Reman for New PN K953152

1шт.

K206595C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

ADAPTER

1шт.

2

K964934

GEAR

SET

1шт.

Part of Gears Kit, P/N K964815

1шт.

3

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(No. 405)

1шт.

Part of Gears Kit, P/N K964815

1шт.

4

25-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

Part of Gears Kit, P/N K964815

1шт.

5

K626380

WASHER

tab

1шт.

Part of Gears Kit, P/N K964815

1шт.

6

K962189

BEARING

SET

1шт.

7

K964925

FLANGE

SPARE PART

1шт.

8

K962097

RING, SNAP

RING SNAP

1шт.

9

K964923

COVER

1шт.

10

K964632

VALVE

relief

1шт.

11

K964935

SEAL

1шт.

12

K964921

BOLT

4шт.

13

192-21

LOCK WASHER,3/8"

4шт.

14

K964920

PIN

RING dowel

2шт.

15

K964933

TANK

ASSY, Includes: Ref. 16 - 19

1шт.

16

K965932

VALVE

plunger

1шт.

17

K965933

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

18

K965934

SPRING

1шт.

19

K965935

RING, SNAP

RING SNAP

1шт.

20

K623849

PLUG

1шт.

21

K626317

WASHER

1шт.

22

K964930

BOLT

1шт.

23

84419022

HYDRAULIC OIL FILTER

1шт.

24

K964928

SEAL

1шт.

25

K965217

RING

1шт.

26

K945098

PINION

1шт.

27

K919729

GASKET,0.76mm Thk

1шт.

28

K608135

STUD

2шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

2шт.

K964815

GEAR

KIT, Includes: Ref. 2 - 5

1шт.
