(115A) - STEERING CYLINDER HYDRAULIC CIRCUIT - 4 WHEEL DRIVE

Запчасти Case 580G (115A) - STEERING CYLINDER HYDRAULIC CIRCUIT - 4 WHEEL DRIVE (05) - STEERING

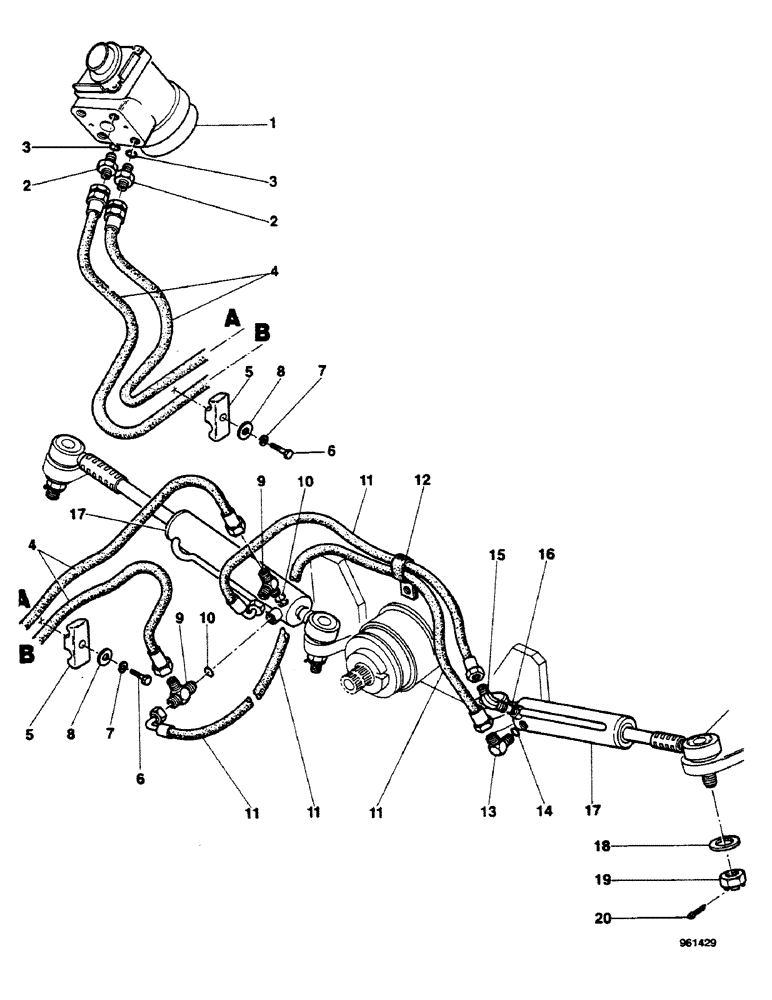

Схема запчастей Case 580G - (115A) - STEERING CYLINDER HYDRAULIC CIRCUIT - 4 WHEEL DRIVE (05) - STEERING
a
8
b
9
1
4
12
11
9
18
13
5
10
a
10
16
17
6
4
3
8
15
20
3
7
5
2
14
6
11
19
7
11
17
b
11
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP manual steering, See figure 121A

1шт.

2

A149481

CONNECTOR, ELEC

CONNECTOR Includes: Ref. 3

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

E45960

HOSE

2шт.

5

D124301

CLAMP,3/4" ID

2шт.

6

113-2228

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

195-525

WASHER,3/8", SAE

2шт.

9

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 10

2шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

E45961

HOSE

2шт.

12

L17508

CLAMP

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 14

1шт.

14

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 16

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

REF

INSTRUCTION

CYLINDER, See figure 124

2шт.

18

195-2074

WASHER,11/16" x 1 1/4" x .134"

flat

1шт.

19

25-1310

SLOTTED NUT,5/8"-18, G5

4шт.

20

132-50

COTTER PIN,1/8" x 1 1/4"

4шт.
