(580G) - CASE CONSTRUCTION KING LOADER BACKHOE (1/78-12/88)
/
(05) - STEERING
/

(114) - STEERING CYLINDER HYDRAULIC CIRCUIT - 4 WHEEL DRIVE

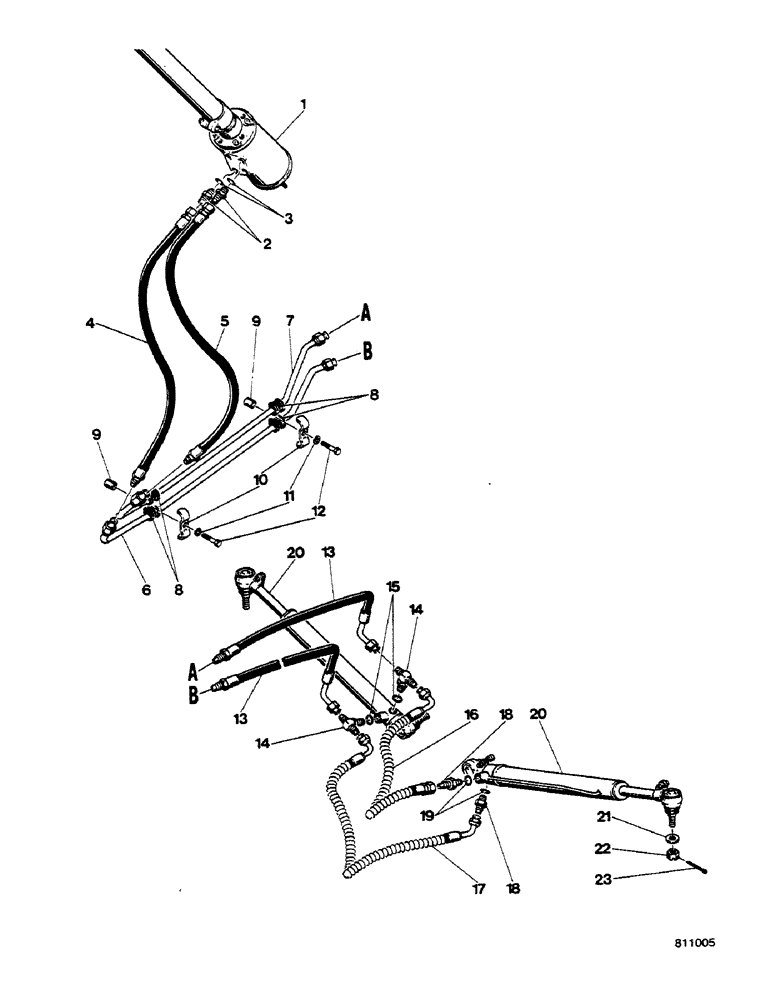

Запчасти Case 580G (114) - STEERING CYLINDER HYDRAULIC CIRCUIT - 4 WHEEL DRIVE (05) - STEERING

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP, See figure 118 - 121A

1шт.

2

D76050

HARDWARE

ADAPTER

2шт.

Up to No. 3.989.729 D

1шт.

Up to No. 3.989.988

1шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Up to No. 3.989.729 D

1шт.

Up to No. 3.989.988

1шт.

4

E43180

HOSE

1шт.

Up to No. 3.989.729 D

1шт.

Up to No. 3.989.988

1шт.

5

E43181

HOSE

1шт.

Up to No. 3.989.729 D

1шт.

Up to No. 3.989.988

1шт.

6

D89684

HYD TUBE,12.7 mm OD x 731, 71 mm L

1шт.

Up to No. 3.989.729 D

1шт.

Up to No. 3.989.988

1шт.

7

D122808

TUBE

1шт.

Up to No. 3.989.729 D

1шт.

Up to No. 3.989.988

1шт.

8

D67296

GROMMET

INSULATOR

4шт.

Up to No. 3.989.729 D

1шт.

Up to No. 3.989.988

1шт.

9

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

2шт.

Up to No. 3.989.729 D

1шт.

Up to No. 3.989.988

1шт.

10

D68646

CLAMP

2шт.

Up to No. 3.989.729 D

1шт.

Up to No. 3.989.988

1шт.

11

92-6

LOCK WASHER,3/8"

2шт.

Up to No. 3.989.729 D

1шт.

Up to No. 3.989.988

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

Up to No. 3.989.729 D

1шт.

Up to No. 3.989.988

1шт.

13

E35141

HOSE

2шт.

Up to No. 3.941.001 Except for No. : 3.940.979 + 3.940.986

1шт.

14

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

Up to No. 3.941.001 Except for No. : 3.940.979 + 3.940.986

1шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

E45123

HOSE

1шт.

Up to No. 3.941.001 Except for No. : 3.940.979 + 3.940.986

1шт.

17

E45124

HOSE

1шт.

Up to No. 3.941.001 Except for No. : 3.940.979 + 3.940.986

1шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

Up to No. 3.941.001 Except for No. : 3.940.979 + 3.940.986

1шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

REF

INSTRUCTION

CYLINDER, See figure 124

2шт.

21

195-2074

WASHER,11/16" x 1 1/4" x .134"

flat

1шт.

22

25-1310

SLOTTED NUT,5/8"-18, G5

4шт.

23

132-50

COTTER PIN,1/8" x 1 1/4"

4шт.

Выбрано товаров: 50
