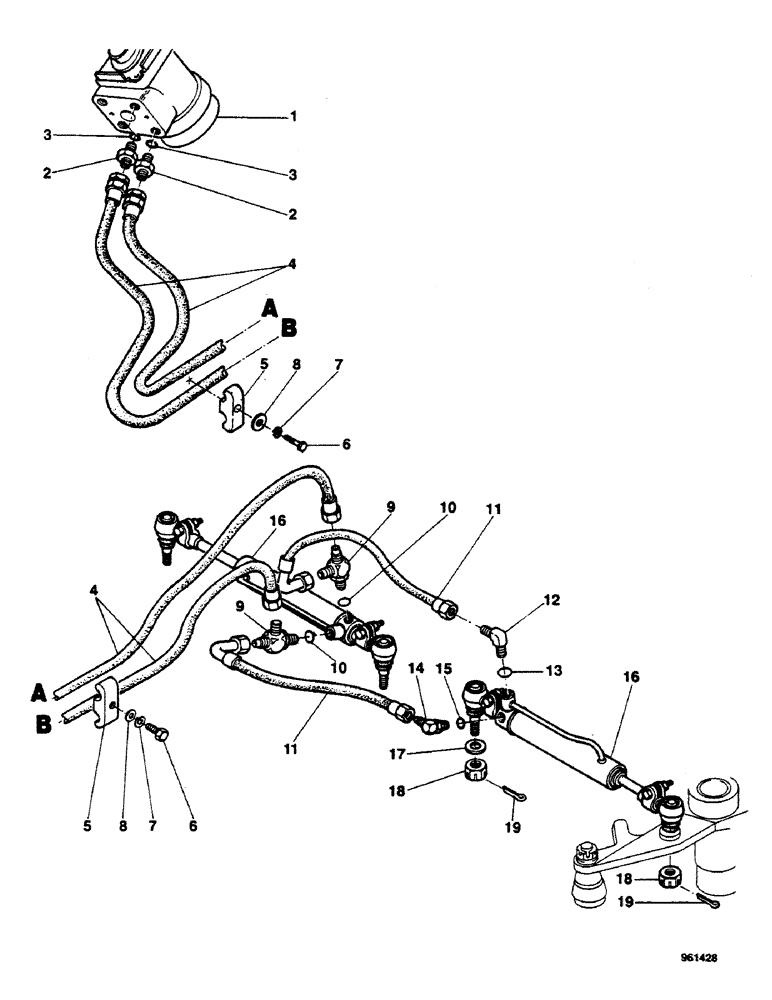

(113A) - STEERING CYLINDER HYDRAULIC CIRCUIT - 2 WHEEL DRIVE

Запчасти Case 580G (113A) - STEERING CYLINDER HYDRAULIC CIRCUIT - 2 WHEEL DRIVE (05) - STEERING

Схема запчастей Case 580G - (113A) - STEERING CYLINDER HYDRAULIC CIRCUIT - 2 WHEEL DRIVE (05) - STEERING
7
b
18
17
5
11
11
5
3
a
2
19
19
14
16
15
12
3
b
6
4
16
10
13
6
8
9
4
9
2
8
7
1
10
18
a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP manual steering, See Figure 121A

1шт.

2

A149481

CONNECTOR, ELEC

CONNECTOR Includes: Ref. 3

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

E45960

HOSE

2шт.

5

D124301

CLAMP,3/4" ID

2шт.

6

113-2228

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

195-525

WASHER,3/8", SAE

2шт.

9

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 10

2шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

E45961

HOSE

2шт.

12

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref. 13

1шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 15

1шт.

15

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

REF

INSTRUCTION

CYLINDER, See figure 122

2шт.

17

195-2074

WASHER,11/16" x 1 1/4" x .134"

flat

1шт.

18

25-1310

SLOTTED NUT,5/8"-18, G5

4шт.

19

132-50

COTTER PIN,1/8" x 1 1/4"

4шт.
