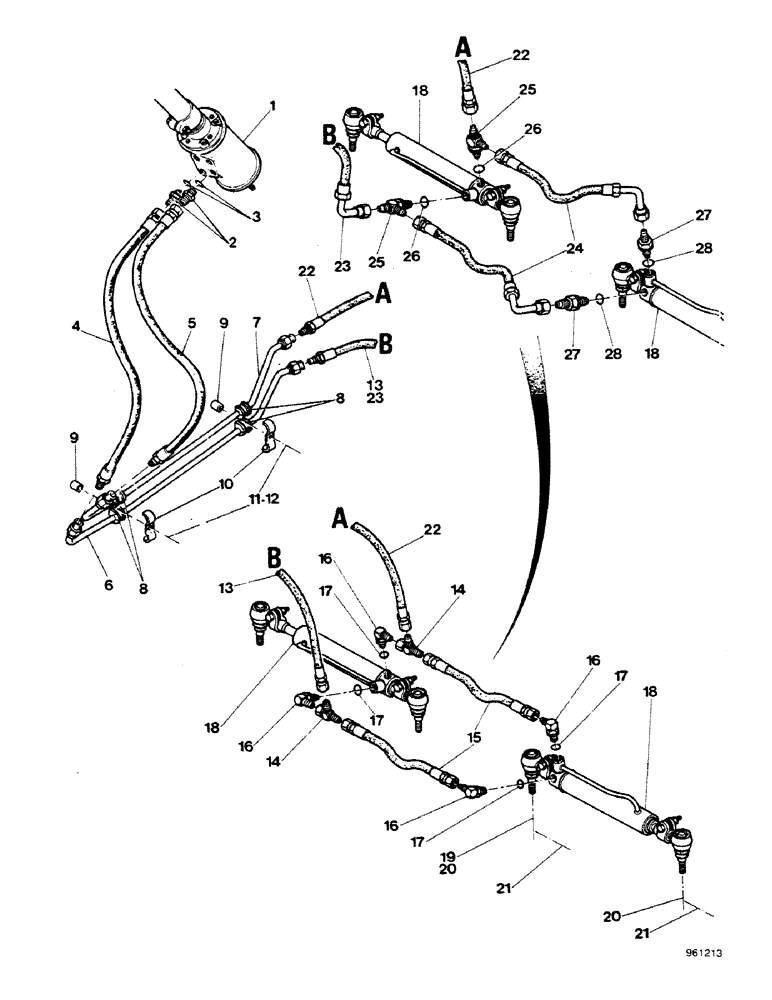

Запчасти Case 580G (112) - STEERING CYLINDER HYDRAULIC CIRCUIT - 2 WHEEL DRIVE (05) - STEERING

1

REF

INSTRUCTION

PUMP, See figure 118 - 121A

1шт.

2

D76050

HARDWARE

ADAPTER, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

E43180

HOSE

1шт.

5

E43181

HOSE

1шт.

6

D89684

HYD TUBE,12.7 mm OD x 731, 71 mm L

1шт.

7

D122808

TUBE

1шт.

8

D67296

GROMMET

INSULATOR

4шт.

9

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

2шт.

10

D68646

CLAMP

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

E35744

HOSE

If used

1шт.

14

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

If used

2шт.

15

E43924

HOSE ASSY.

If used

2шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 17, If used

4шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

If used

1шт.

18

REF

INSTRUCTION

CYLINDER, See figure 122

2шт.

19

195-2074

WASHER,11/16" x 1 1/4" x .134"

flat

1шт.

20

25-1310

SLOTTED NUT,5/8"-18, G5

4шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

4шт.

22

E35744

HOSE

1шт.

23

E44020

HOSE

1шт.

24

E44019

HOSE

2шт.

25

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 26

2шт.

26

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 28

2шт.

28

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
