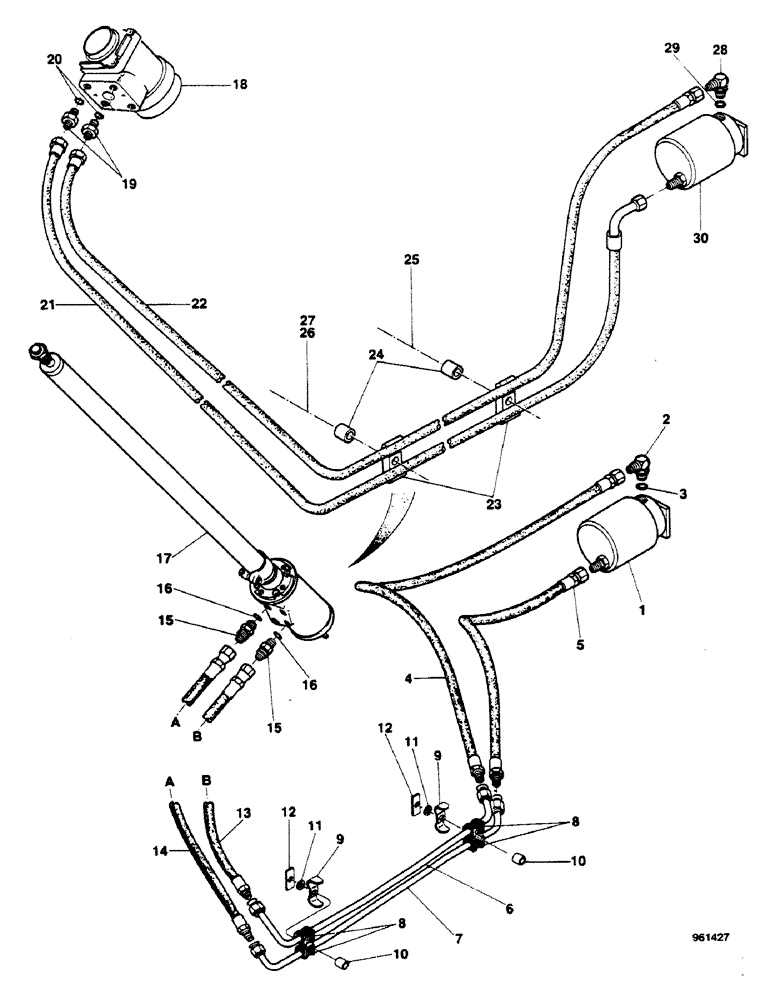

Запчасти Case 580G (110) - STEERING HYDRAULIC CIRCUIT - STEERING PUMP TO MANUAL, STEERING PUMP (05) - STEERING

1

REF

INSTRUCTION

PUMP steering, See figure 116

1шт.

2

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

elbow, Includes: Ref. 3

1шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

4

E35142

HOSE

1шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

5

E44021

HOSE

1шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

6

D89641

HYD TUBE,0.5" OD

1шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

7

D89643

HYD TUBE,12.7 mm OD x 85, 714 mm L

1шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

8

D67296

GROMMET

INSULATOR

4шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

9

D68646

CLAMP

2шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

10

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

2шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

11

195-25

WASHER,3/8"

2шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

12

D91813

PLATE

2шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

13

E43181

HOSE

1шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

14

E43180

HOSE

1шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Includes: Ref. 16

2шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

17

REF

INSTRUCTION

PUMP manual steering See figure 118 and 121

1шт.

Up to No. 3.989.729 D and No. 3.989.988 Other countries

1шт.

18

REF

INSTRUCTION

PUMP manual steering, See figure 121A

1шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 20

2шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

21

E45958

HOSE

1шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

22

E45959

HOSE

1шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

23

D124301

CLAMP,3/4" ID

2шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

24

D76209

SPACER

2шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

25

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

26

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

28

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

elbow, Includes: Ref. 29

1шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

29

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Starting from No. 3.989.730 D and No. 3.989.989 Other countries

1шт.

30

REF

INSTRUCTION

PUMP steering, See figure 116

1шт.
