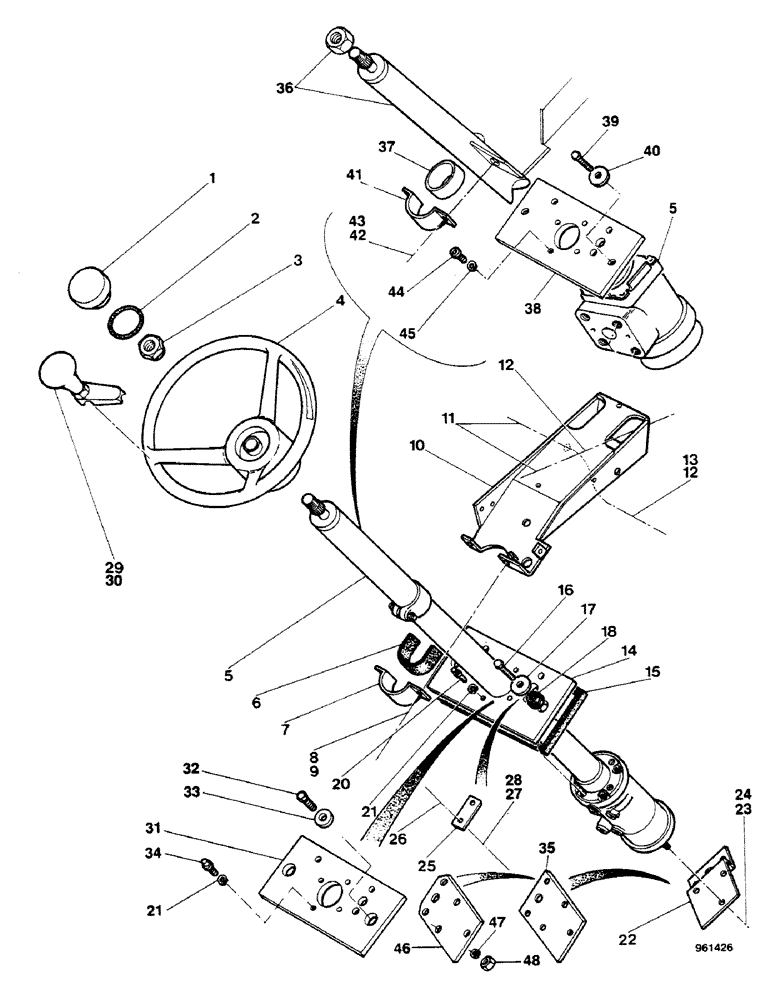

Запчасти Case 580G (106) - STEERING WHEEL AND STEERING COLUMN (05) - STEERING

1

A62210

PLUG

, Serial Range: -3.937.284

1шт.

1

E38474

CAP

, Start Serial: 3.937.285

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

, Serial Range: -3.937.284

1шт.

3

A14567

JAM NUT

1шт.

4

A65544

STEERING WHEEL

15.25" dia., Serial Range: -3.937.284

1шт.

4

E38825

SCREW

13.80" dia., Start Serial: 3.937.285

1шт.

5

REF

INSTRUCTION

PUMP, See figures 118 and 121A

1шт.

6

D66844

PADDING

COLLAR E

1шт.

7

D66646

CLAMP

1шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

10

E45690

BRACKET

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

25-106

NUT,3/8"-16, G5

1шт.

14

D83767

PLATE

SPARE PART, Serial Range: -3.936.533

1шт.

15

D83770

RUBBER SEAL

, Serial Range: -3.936.533

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

, Serial Range: -3.936.533

2шт.

17

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

, Serial Range: -3.936.533

2шт.

18

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

, Serial Range: -3.936.533

2шт.

20

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

, Serial Range: -3.936.533

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

D86426

PLATE

, Serial Range: -3.936.533

1шт.

23

92-5

LOCK WASHER,5/16"

3шт.

Up to No. 3.989.729 D And Up to No. 3.989.988 Other countries

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

3шт.

Up to No. 3.989.729 D And Up to No. 3.989.988 Other countries

1шт.

25

D120137

PLATE

SPARE PART If used

1шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

2шт.

29

E35132

KNOB

If used

1шт.

30

E42595

KNOB

Used with E38825 only, If used

1шт.

31

D93441

PLATE

SPARE PART, Start Serial: 3.936.534

1шт.

Up to No. 3.989.729 D And Up to No. 3.989.988 Other countries

1шт.

32

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT, Start Serial: 3.936.534

4шт.

Up to No. 3.989.729 D And Up to No. 3.989.988 Other countries

1шт.

33

195-25

WASHER,3/8"

, Start Serial: 3.936.534

4шт.

Up to No. 3.989.729 D And Up to No. 3.989.988 Other countries

1шт.

34

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

, Start Serial: 3.936.534

4шт.

Up to No. 3.989.729 D And Up to No. 3.989.988 Other countries

1шт.

35

D125428

PLATE, Start Serial: 3.936.534

1шт.

Up to No. 3.989.729 D And Up to No. 3.989.988 Other countries

1шт.

36

E44780

STEERING COLUMN

(Danfoss)

1шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

NSS

NOT SOLD SEPARAT

"0" M 18 x 1.5

1шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

37

D124180

STRIP

COLLAR

1шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

38

E44739

PLATE

1шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

39

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT

2шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

40

195-25

WASHER,3/8"

2шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

41

D66646

CLAMP

1шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

42

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

44

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

4шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

45

92-6

LOCK WASHER,3/8"

4шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

46

E44775

SUPPORT ASSY.

PLATE

1шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

47

92-6

LOCK WASHER,3/8"

3шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.

48

25-106

NUT,3/8"-16, G5

3шт.

Starting from No. 3.989.730 D And Starting from No. 3.989.989 Other countries

1шт.
