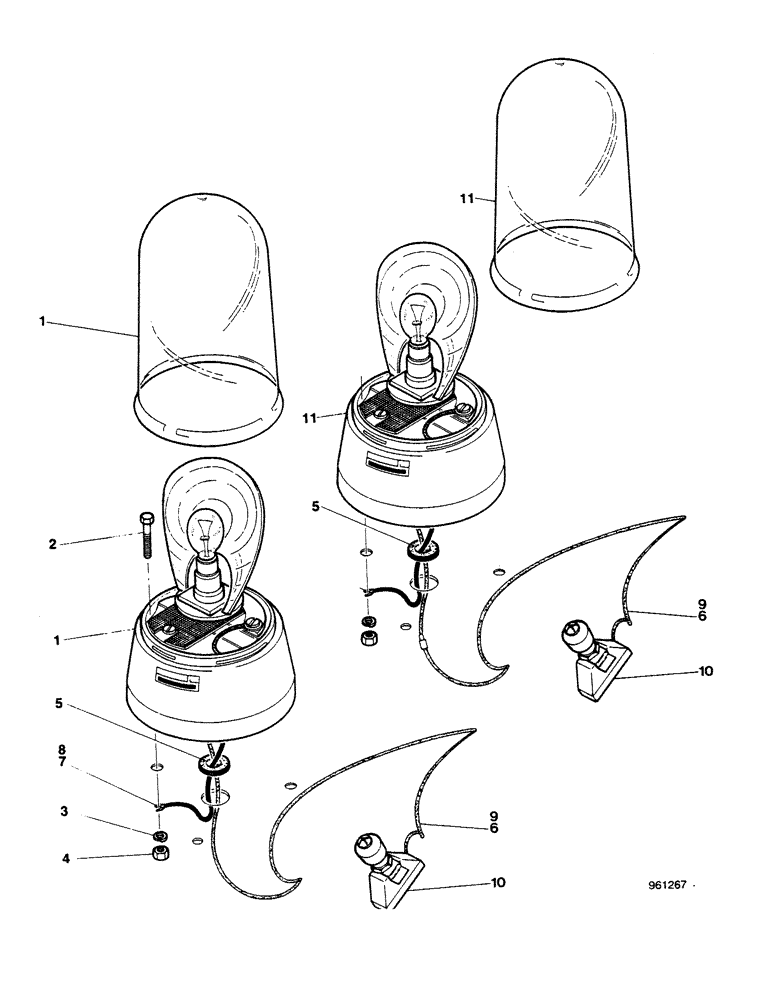

Запчасти Case 580G (100) - ROTATING BEACON AND CIRCUIT UP TO NO. 3.808.596 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BEACON rotating, See figure 102

1шт.

2

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

For E38358 (See figure 102)

3шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

for E38358 (See figure 102)

3шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

For E38358 (See figure 102)

3шт.

4

8251006

NUT (M6), For E44081 (See figure 102)

4шт.

5

E42173

GROMMET

1шт.

6

E44940

HARNESS

For canopy

1шт.

7

E41289

ELECTRICAL WIRE

WIRE For E38358 (See figure 102), For a cab

1шт.

8

H385187

ELECTRICAL WIRE

WIRE For canopy

1шт.

9

E44938

HARNESS

For a cab

1шт.

10

E38359

SWITCH

1шт.

11

REF

INSTRUCTION

BEACON rotating, See figure 102

1шт.
