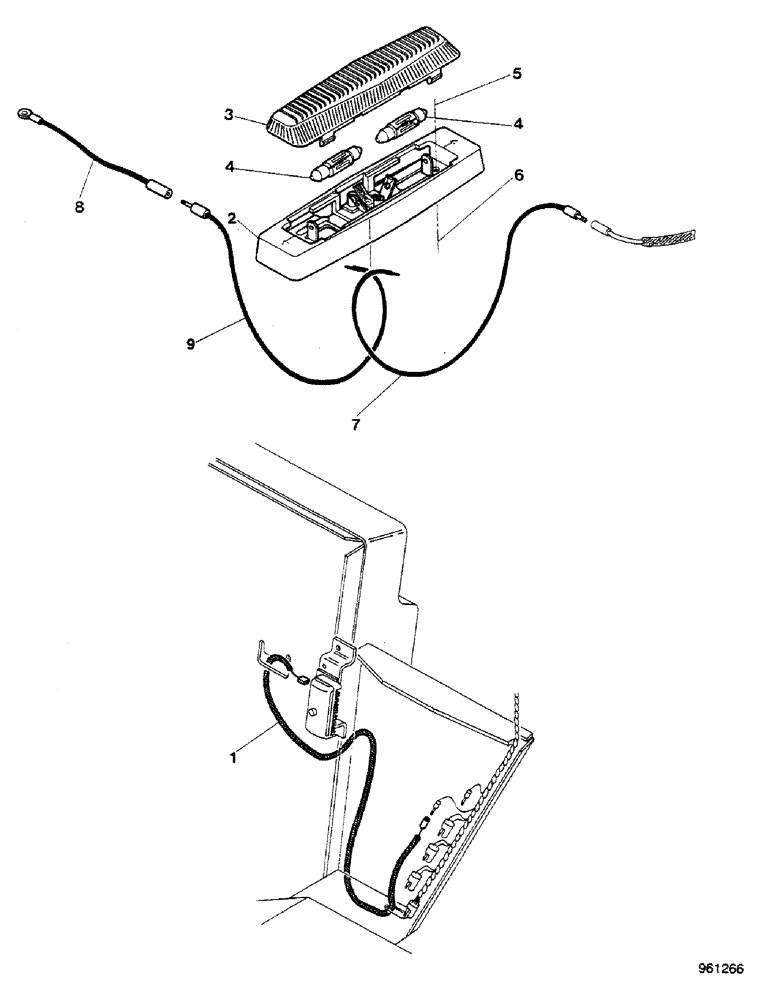

Запчасти Case 580G (094) - TRACTOR LAMPS - DOME LAMP UP TO NO. 3.808.596 (04) - ELECTRICAL SYSTEMS

1

E44946

ELECTRICAL WIRE

WIRE HARNESS

1шт.

E35533

COURTESY LIGHT

DOME LIGHT ASSY, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

LENS

1шт.

4

E35556

BULB,12V, 10W

Shuttle

2шт.

5

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

2шт.

6

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.

7

E44936

ELECTRICAL WIRE

WIRE lamp, Serial Range: -3.806.690

2шт.

7

E44936

ELECTRICAL WIRE

WIRE lamp, Start Serial: 3.806.691

1шт.

8

E44937

ELECTRICAL WIRE

WIRE ground

1шт.

9

E44936

ELECTRICAL WIRE

WIRE lamp, Serial Range: -3.806.690

1шт.

9

E45077

ELECTRICAL WIRE

WIRE, Start Serial: 3.806.691

1шт.
