(093A) - TRACTOR LAMPS - SIGNAL MARKER LAMPS STARTING FROM NO. 3.948.950

Запчасти Case 580G (093A) - TRACTOR LAMPS - SIGNAL MARKER LAMPS STARTING FROM NO. 3.948.950 (04) - ELECTRICAL SYSTEMS

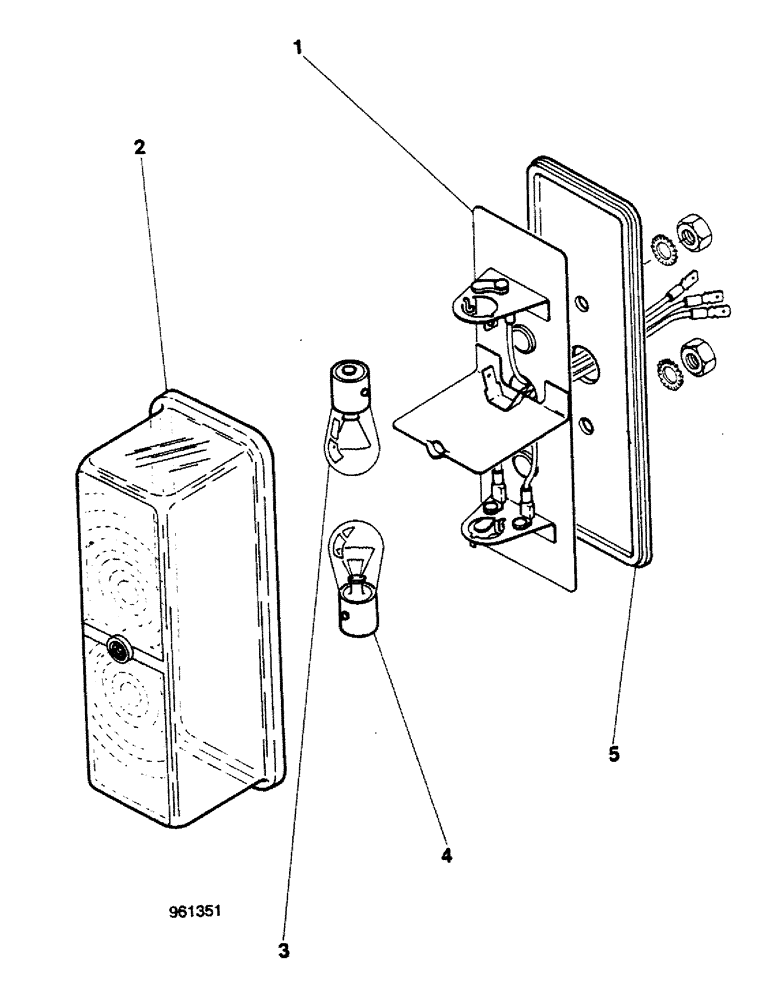

Схема запчастей Case 580G - (093A) - TRACTOR LAMPS - SIGNAL MARKER LAMPS STARTING FROM NO. 3.948.950 (04) - ELECTRICAL SYSTEMS
2
5
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

E46201

LAMP, TAIL

LIGHT, TAIL Includes: Ref. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL ASSY

1шт.

2

E46256

LENS

1шт.

3

E32056

LAMP, TAIL

LIGHT, TAIL 21W

1шт.

4

E46255

BULB

21W/5W

1шт.

5

E46257

RUBBER MOUNTING

SPARE PART PAD

1шт.
