(090) - TRACTOR LAMPS - HEAD LAMPS AND WORK LAMPS

Запчасти Case 580G (090) - TRACTOR LAMPS - HEAD LAMPS AND WORK LAMPS (04) - ELECTRICAL SYSTEMS

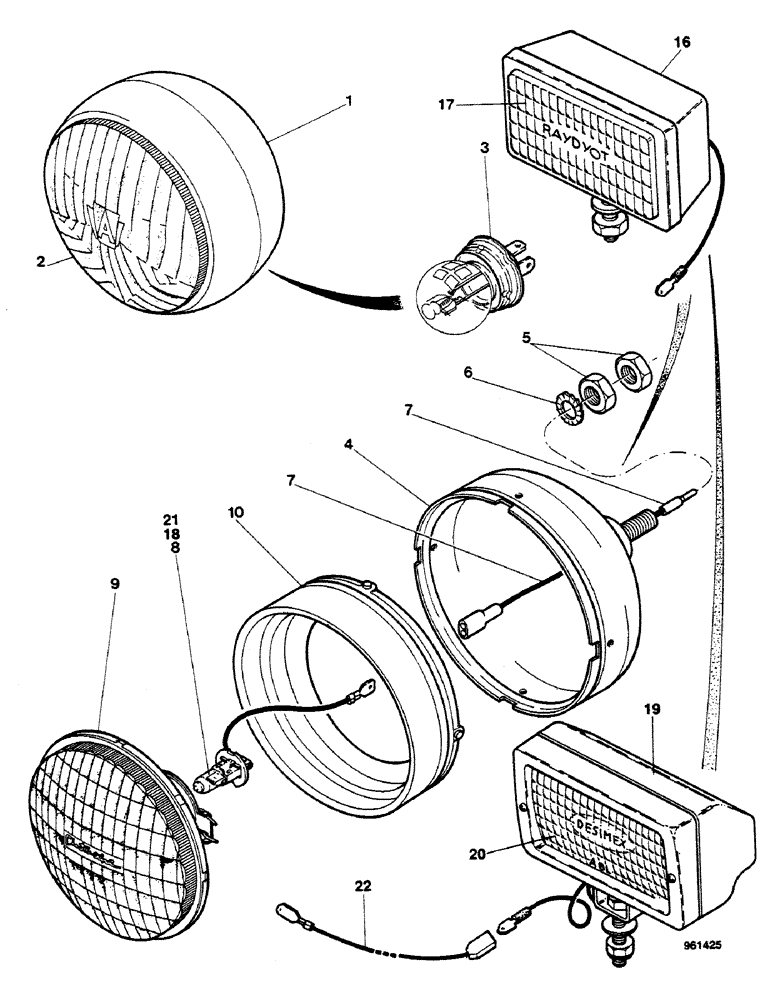

Схема запчастей Case 580G - (090) - TRACTOR LAMPS - HEAD LAMPS AND WORK LAMPS (04) - ELECTRICAL SYSTEMS
1
10
7
9
16
20
5
18
7
6
4
3
22
2
21
8
17
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

E32189

HEADLIGHT

Includes: Ref. 1 and 2

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL ASSY

1шт.

2

E41976

GLASS

LENS

1шт.

3

E32190

BULB

yellow

1шт.

3

E32191

BULB

white

1шт.

D94193

HEADLIGHT

work, round (Autoroche), Includes: Ref. 4 - 10, Serial Range: -3.806.572

4шт.

4

NSS

NOT SOLD SEPARAT

SHELL

1шт.

5

525-5115

NUT,M12 x 1.25, Cl 8

2шт.

6

892-1112

LOCK WASHER,M12

1шт.

7

N7372

ELECTRICAL WIRE

WIRE

1шт.

N7371

LENS

BULB, Includes: Ref. 8 and 9

1шт.

8

N7479

BULB

1шт.

9

NSS

NOT SOLD SEPARAT

LENS

1шт.

10

N7370

RETAINER

SPARE PART

1шт.

E44556

LAMP

work, rectangular (Autoroche), Serial Range: 3.806.573-3.808.596

4шт.

NSS

NOT SOLD SEPARAT

SHELL

1шт.

E44632

LENS

1шт.

N7479

BULB

1шт.

E44633

VALVE SPRING

1шт.

N7372

ELECTRICAL WIRE

WIRE

1шт.

16

E45533

LAMP

work, metal, Includes: Ref. 17 and 18, E46370, Start Serial: 3.808.597

4шт.

17

E46030

LENS

1шт.

18

N7479

BULB

1шт.

19

E46370

LAMP, WORK

LIGHT, WORK plastic, Includes: Ref. 20 and 21

4шт.

20

E45903

LENS

1шт.

21

N7479

BULB

1шт.

22

E46567

WIRE, If used

1шт.
