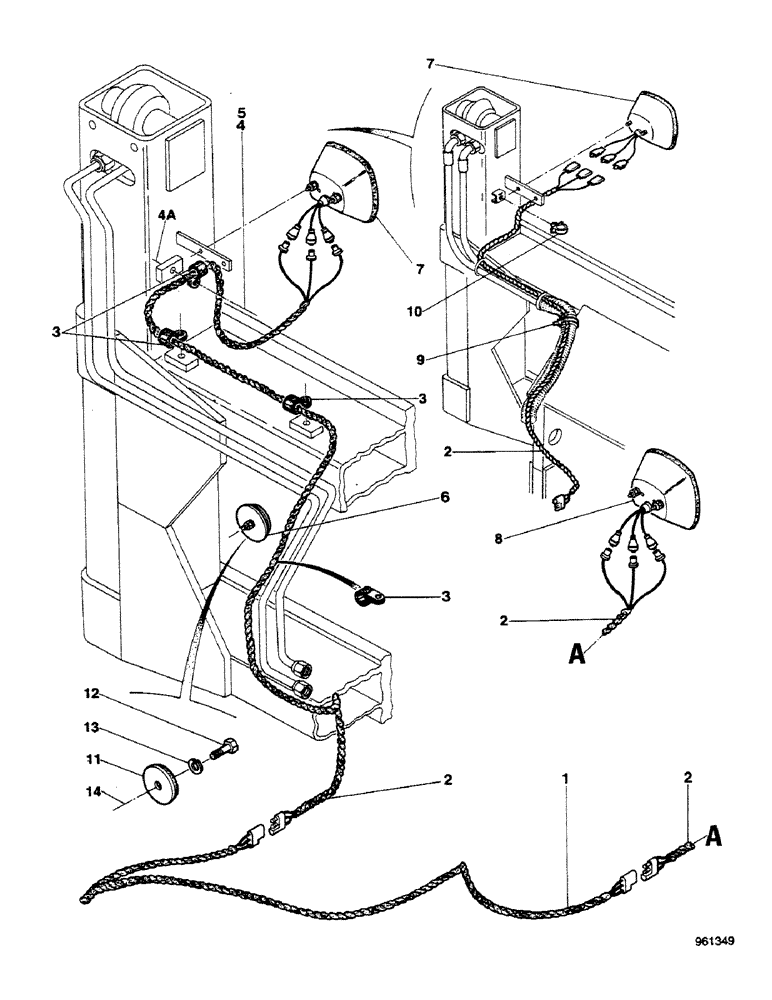

Запчасти Case 580G (088) - REAR SIGNAL LAMPS - SIDESHIFT BACKHOE UP TO NO. 3.948.949 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS main, See figure 68

1шт.

2

E44932

HARNESS

lamp

2шт.

3

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

8шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

4a

25-225

SQUARE NUT,Sq, 5/16"-24

8шт.

5

92-5

LOCK WASHER,5/16"

8шт.

6

E44662

FLAG

REFLECTOR, 3233791R2 + 182-516 + 192-18 + 129-17

2шт.

7

REF

INSTRUCTION

LAMP RH, See figure 92

1шт.

8

REF

INSTRUCTION

LAMP LH, See figure 92

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie

2шт.

10

E41161

FASTENER

2шт.

11

3233791R2

REFLECTOR

2шт.

12

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

14

129-17

NUT,Hex, #10 - 24

2шт.
