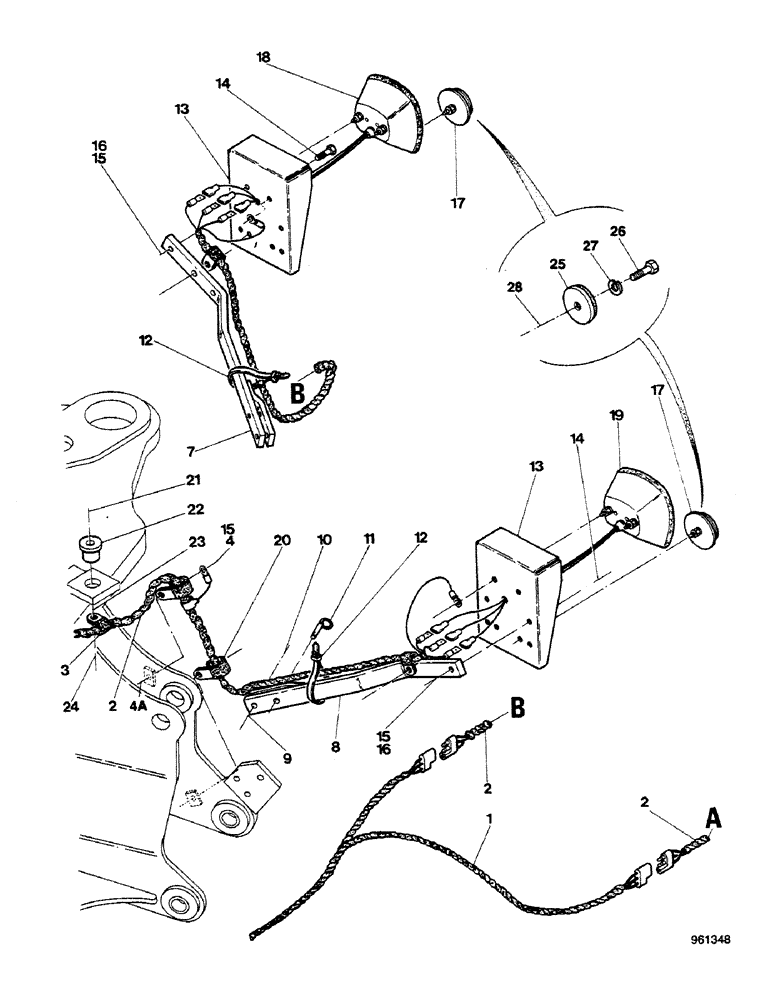

Запчасти Case 580G (086) - REAR SIGNAL LAMPS - AXIAL BACKHOE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS main See Figure 68.

1шт.

2

E44951

HARNESS

lamp, E45233 + 49852 (3), Serial Range: -3.927.303

2шт.

2

E45233

HARNESS

lamp, Start Serial: 3.927.304

2шт.

3

49836

CLAMP

2шт.

4

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

4a

25-225

SQUARE NUT,Sq, 5/16"-24

4шт.

7

D94953

ARM

SPARE PART RH

1шт.

8

D94954

ARM

SPARE PART LH

1шт.

9

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

131-6

LOCK NUT,3/8"-16, GC

lock

2шт.

11

D94535

PIN,9.52mm OD

2шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie

2шт.

13

D94980

BRACKET

2шт.

14

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

4шт.

17

E44662

FLAG

REFLECTOR, 3233791R2 +182-516 + 192-18 + 129-17

2шт.

18

REF

INSTRUCTION

LAMP RH, See figure 92

1шт.

19

REF

INSTRUCTION

LAMP LH, See figure 92

1шт.

20

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

, Serial Range: -3.927.303

6шт.

20

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

, Start Serial: 3.927.304

6шт.

21

12-832

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2", Gr 2, Full Thd

2шт.

22

R29799

SHOCK ABSORBER

2шт.

23

B15606

WASHER

2шт.

24

131-10

NUT,1/2"-13, GB

2шт.

25

3233791R2

REFLECTOR

2шт.

26

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

2шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

28

129-17

NUT,Hex, #10 - 24

2шт.
