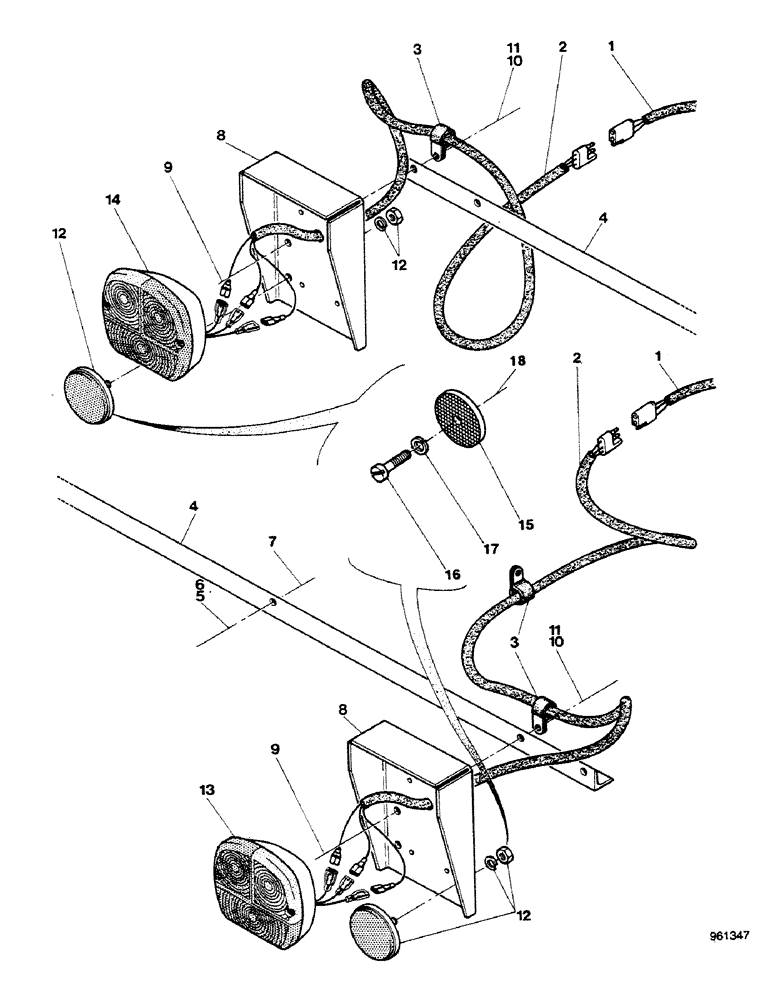

Запчасти Case 580G (084) - REAR SIGNAL LAMPS - WITHOUT BACKHOE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS main, See figure 68

1шт.

2

E44932

HARNESS

lamp

2шт.

3

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

6шт.

4

D121051

SUPPORT

SPARE PART

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

6

92-5

LOCK WASHER,5/16"

If used

2шт.

7

131-4

LOCK NUT,5/16"-18, GB

2шт.

8

D94980

BRACKET

2шт.

9

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

10

92-5

LOCK WASHER,5/16"

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

4шт.

12

E44662

FLAG

REFLECTOR, 3233791R2 + 182-516 + 192-18 + 129-17

2шт.

13

REF

INSTRUCTION

LAMP RH, See figure 92

1шт.

14

REF

INSTRUCTION

LAMP LH

1шт.

15

3233791R2

REFLECTOR

2шт.

16

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

2шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

18

129-17

NUT,Hex, #10 - 24

2шт.
