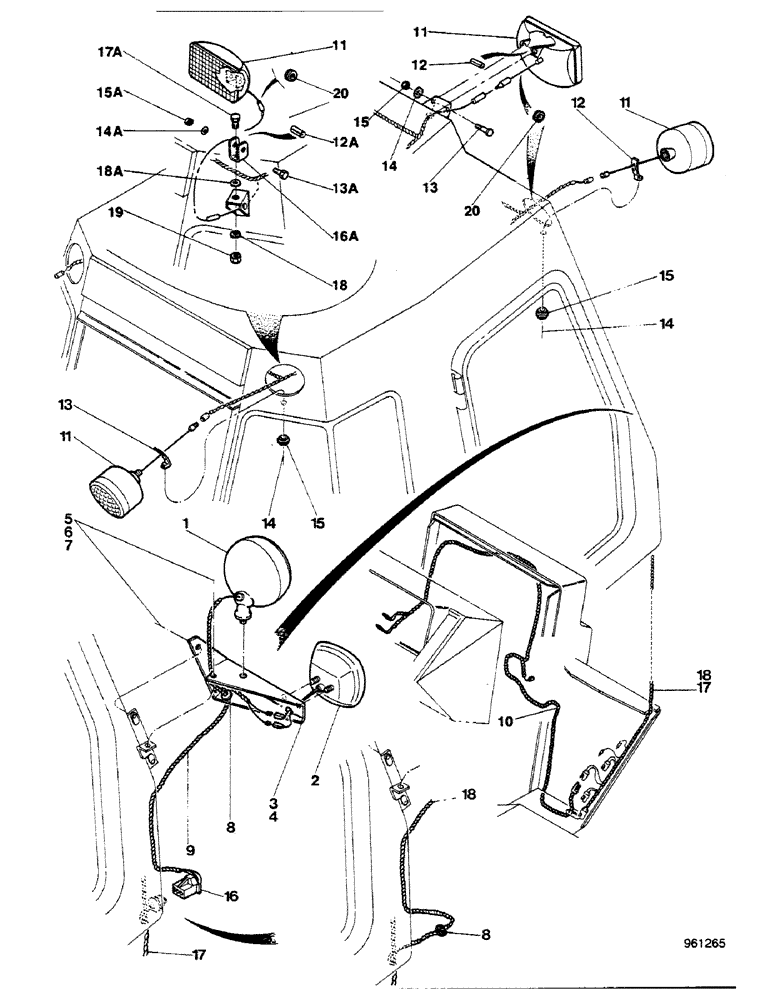

Запчасти Case 580G (082) - TRACTOR LAMP CIRCUIT - WITH CAB NO. 3.808.596 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

LAMP ASSY, See figure 90

2шт.

2

REF

INSTRUCTION

LAMP ASSY, See figure 92

2шт.

3

F96802

BRACKET

SPARE PART RH

1шт.

4

F96803

BRACKET

SPARE PART LH

1шт.

5

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

6шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

6шт.

7

195-521

WASHER,5/16", SAE

6шт.

8

A145925

GROMMET

2-4шт.

9

F44907

LOOM

SPARE PART HARNESS, If used

2шт.

10

D94158

HARNESS

, Serial Range: -3.806.572

1шт.

10

E44939

HARNESS

, Start Serial: 3.806.573

1шт.

11

REF

INSTRUCTION

LAMP ASSY, See figure 91

4шт.

12

D94064

RETAINER

SPARE PART front, Serial Range: -3.806.572

2шт.

12a

D125869

SPACER

4шт.

13

F96782

BRACKET

retainer - rear, Serial Range: -3.806.572

2шт.

13a

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

, Start Serial: 3.806.573

4шт.

14

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

, Serial Range: -3.806.572

4шт.

14a

193-57

LOCK WASHER,Ext Tooth, 1/4"

, Start Serial: 3.806.573

4шт.

15

F42778

WASHER

, Serial Range: -3.806.572

4шт.

15a

7770

NUT,Hex, 1/4 - 20, Cl 5

, Start Serial: 3.806.573

4шт.

16

F44905

CONNECTOR, ELEC

CONNECTOR PLUG, If used

2шт.

16a

D126240

BRACKET

SPARE PART, Start Serial: 3.806.573

2шт.

17

F44897

HARNESS

E45219 + A145925 (2)

1шт.

17a

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

, Start Serial: 3.806.573

2шт.

18

E45219

HARNESS

1шт.

18a

193-72

LOCK WASHER

, Start Serial: 3.806.573

4шт.

19

87016560

JAM NUT,Jam, 3/8"-16, G5

, Start Serial: 3.806.573

2шт.

20

353-700

BUSHING

If used, Start Serial: 3.806.573

4шт.
