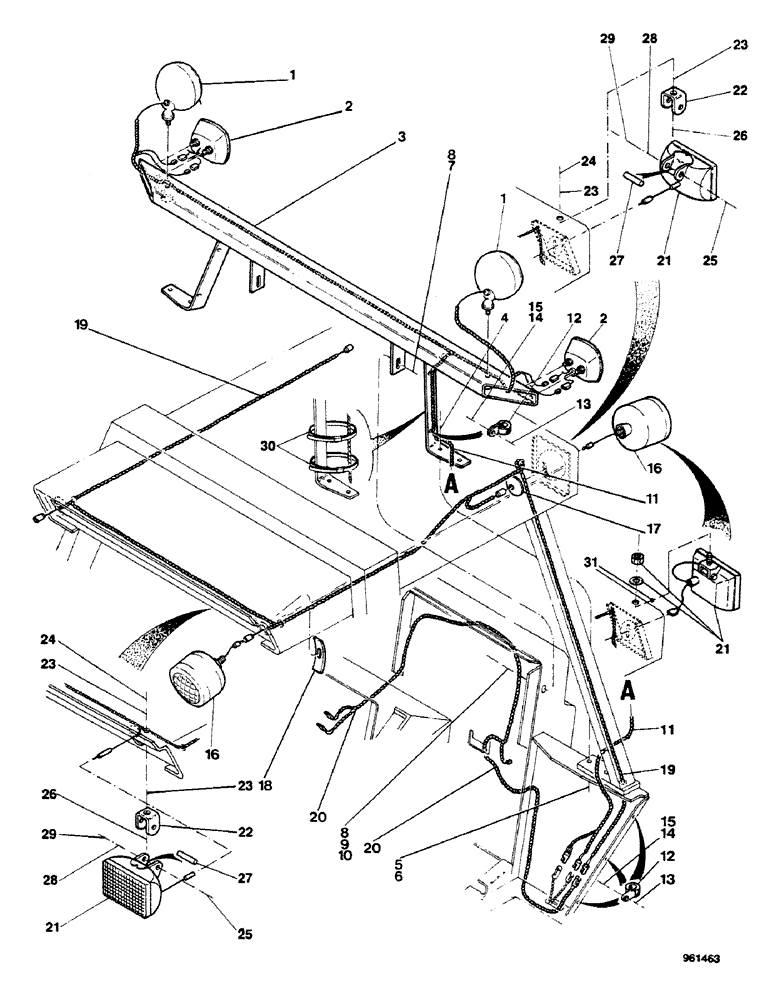

Запчасти Case 580G (080) - TRACTOR LAMP CIRCUIT - WITH CANOPY (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

LAMP ASSY, See figure 90

2шт.

2

REF

INSTRUCTION

LAMP ASSY, See figure 92

2шт.

3

D121046

SUPPORT

SPARE PART

1шт.

4

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

5

196-16

WASHER,.521" x 1" x .179", HDN

flat

4шт.

6

129-184

NUT,1/2"-13, G8

4шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

8

195-104

WASHER,3/8"

flat

4шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

2шт.

11

E44943

HARNESS

, Serial Range: -3.938.298

1шт.

11

E45794

HARNESS

, Start Serial: 3.938.299

1шт.

12

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

If used

2шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used

2шт.

14

92-6

LOCK WASHER,3/8"

If used

2шт.

15

25-106

NUT,3/8"-16, G5

If used

2шт.

16

REF

INSTRUCTION

LAMP ASSY, See figure 90

4шт.

17

A59702

RETAINER

WASHER front, Serial Range: -3.936.125

4шт.

18

D120008

RETAINER

rear, Serial Range: -3.936.125

2шт.

19

E44952

HARNESS

, Serial Range: -3.938.298

1шт.

19

E45830

HARNESS

, Start Serial: 3.938.299

1шт.

20

D94158

HARNESS

, Serial Range: -3.936.125

1шт.

20

E44939

HARNESS

, Serial Range: 3.936.126-3.938.298

1шт.

20

E45470

HARNESS

, Start Serial: 3.938.299

1шт.

21

REF

INSTRUCTION

LAMP ASSY, See figure 90

4шт.

22

D126240

BRACKET

SPARE PART, Serial Range: 3.936.126-3.938.298

4шт.

23

193-72

LOCK WASHER

, Serial Range: 3.936.126-3.938.298

8шт.

24

87016560

JAM NUT,Jam, 3/8"-16, G5

, Serial Range: 3.936.126-3.938.298

4шт.

25

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

, Serial Range: 3.936.126-3.938.298

4шт.

26

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

, Serial Range: 3.936.126-3.938.298

4шт.

27

D125869

SPACER

, Serial Range: 3.936.126-3.938.298

4шт.

28

193-57

LOCK WASHER,Ext Tooth, 1/4"

, Serial Range: 3.936.126-3.938.298

4шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

, Serial Range: 3.936.126-3.938.298

4шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie

2шт.

31

193-82

LOCK WASHER,Int Tooth, 5/16"

4шт.
