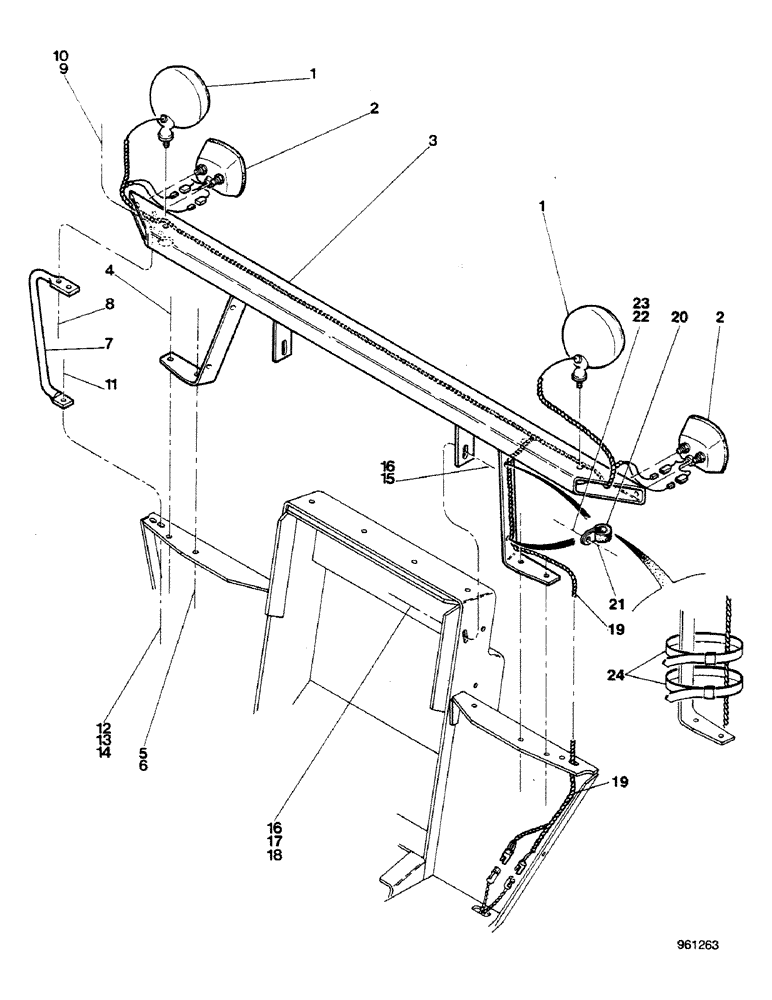

Запчасти Case 580G (078) - TRACTOR LAMP CIRCUIT - WITHOUT CANOPY OR CAB (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

LAMP ASSY, See figure 90

2шт.

2

REF

INSTRUCTION

LAMP ASSY, See figure 92

2шт.

3

D121046

SUPPORT

SPARE PART

1шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

195-33

WASHER,1/2"

flat

4шт.

6

25-108

NUT,1/2"-13, G5

4шт.

7

D121589

HANDLE

SPARE PART

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

12

95-6

WASHER,3/8"

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

1шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

16

195-104

WASHER,3/8"

flat

4шт.

17

192-21

LOCK WASHER,3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

19

E44943

HARNESS

, Serial Range: -3.938.265

1шт.

19

E45794

HARNESS

, Start Serial: 3.938.266

1шт.

20

49851

SHIELD

If used

2шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used

2шт.

22

92-6

LOCK WASHER,3/8"

If used

2шт.

23

25-106

NUT,3/8"-16, G5

If used

2шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie

2шт.
