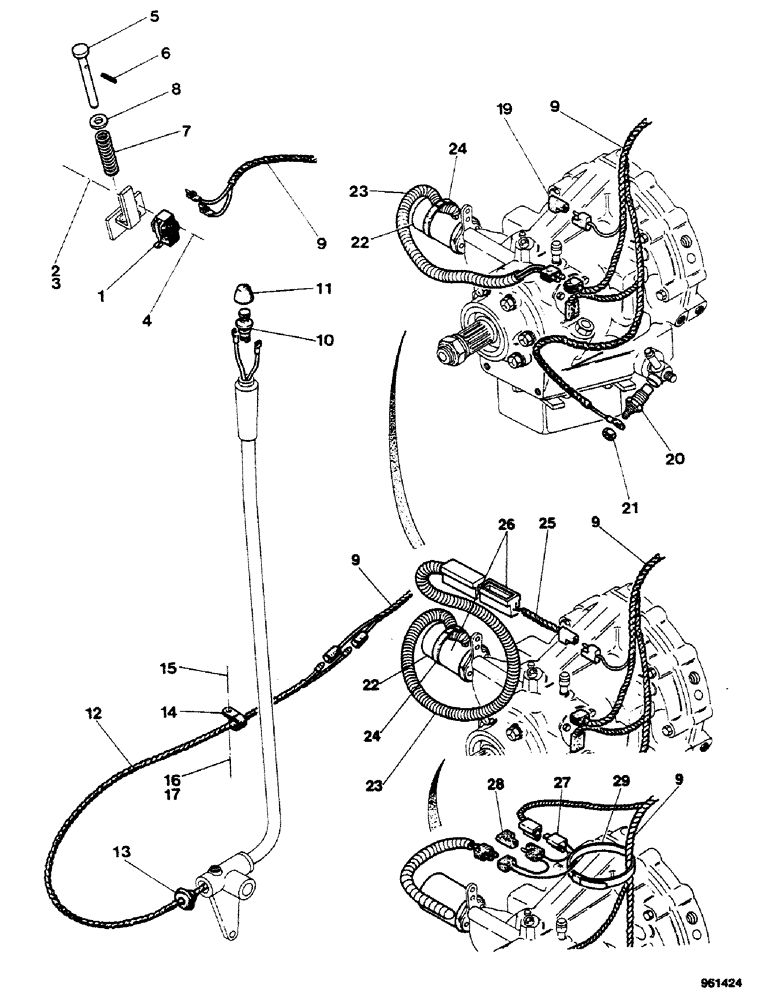

Запчасти Case 580G (076) - POWER SHUTTLE ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

D134622

SWITCH

1шт.

2

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

2шт.

3

195-507

WASHER,#6

flat

2шт.

4

193-1003

NUT,Keps, w/LW,#6-32

2шт.

5

D84327

ROD

1шт.

6

138-61

LOCK PIN,1/8" x 1", Slotted

1шт.

7

T34088

SPRING

1шт.

8

195-525

WASHER,3/8", SAE

1шт.

9

REF

INSTRUCTION

HARNESS main See figure 66 - Ref. 26

1шт.

10

D91440

SWITCH

1шт.

11

D125880

BOOT

D138252

1шт.

11

D138252

BOOT

1шт.

12

E44949

HARNESS

1шт.

13

D83832

GROMMET

1шт.

14

49845

CLAMP

1шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

1шт.

19

L71879

DIODE ELEMENT,400V, 3A

E45594

1шт.

20

D65446

SENDER UNIT

SENDER A166057

1шт.

20

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER

1шт.

21

193-1000

NUT,Keps, w/LW,#10-32

lock

1шт.

22

D67903

SOLENOID

E45594, Used with Shuttle D88050 - D135731 See figure 140-148

1шт.

23

D88053

SLEEVE

Used with Shuttle D88050 - D135731 See figure 140-148

1шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Clamp, Used with Shuttle D88050 - D135731 See figure 140-148

1шт.

25

E45592

HARNESS

E45564

1шт.

26

E45594

KIT

SOLENOID ASSY, Used with Shuttle D88050 - D135731 See figure 140-148

1шт.

27

E46513

HARNESS

Used with Shuttle D140175 See figure 140 - 148

1шт.

28

L71879

DIODE ELEMENT,400V, 3A

Used with Shuttle D140175 See figure 140 - 148

1шт.

29

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie, Used with Shuttle D140175 See figure 140 - 148

1шт.
