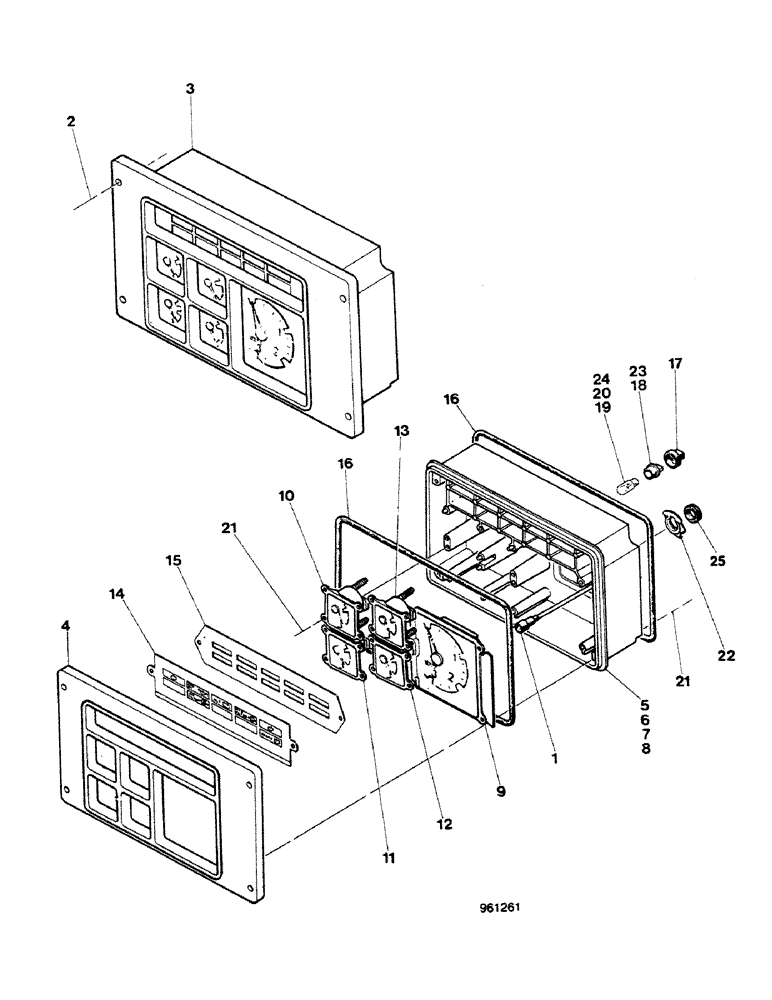

Запчасти Case 580G (072) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

D68716

CABLE

tachometer (70.90" long)

1шт.

1

E45673

CABLE

tachometer (63" long)

1шт.

2

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

4шт.

3

D91122

CLUSTER

instrument, Includes: Ref. 4 - 19

1шт.

4

D71334

LENS

COVER

1шт.

D71335

CASE ASSY.

Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

CASE

1шт.

6

NSS

NOT SOLD SEPARAT

BOARD circuit

1шт.

7

NSS

NOT SOLD SEPARAT

CLIP

12шт.

8

NSS

NOT SOLD SEPARAT

GASKET

1шт.

9

N6805

TACHOMETER

1шт.

10

N6806

ELECTRICAL GAUGE

coolant temperature

1шт.

11

A47688

ELECTRICAL GAUGE

fuel

1шт.

12

N6807

ELECTRICAL GAUGE

voltmeter

1шт.

13

N6808

GAUGE

oil temperature

1шт.

14

N6809

INDICATOR

LENS

1шт.

15

D71342

GASKET,3.05mm Thk

1шт.

16

D71343

GASKET,4.45mm Thk x 249.68mm ID

2шт.

17

D71344

COVER

BOOT

3шт.

18

A47125

PEDESTAL

SOCKET

9шт.

19

W10478

LAMP

No. 194

3шт.

20

D71346

TAIL LAMP,12V

No. 168, Includes: Ref. 21 and 22

6шт.

21

A45093

SCREW,Hex Slotted, 12.70"

12шт.

22

A47704

SPRING

1шт.

23

L35949

SOCKET/RECEPTACLE

For brake fluid level warning

1шт.

24

D71346

TAIL LAMP,12V

No. 168, For brake fluid level warning

1шт.

25

E46024

GROMMET

D51643

1шт.

25

D51643

GROMMET

Used with E45673

1шт.
