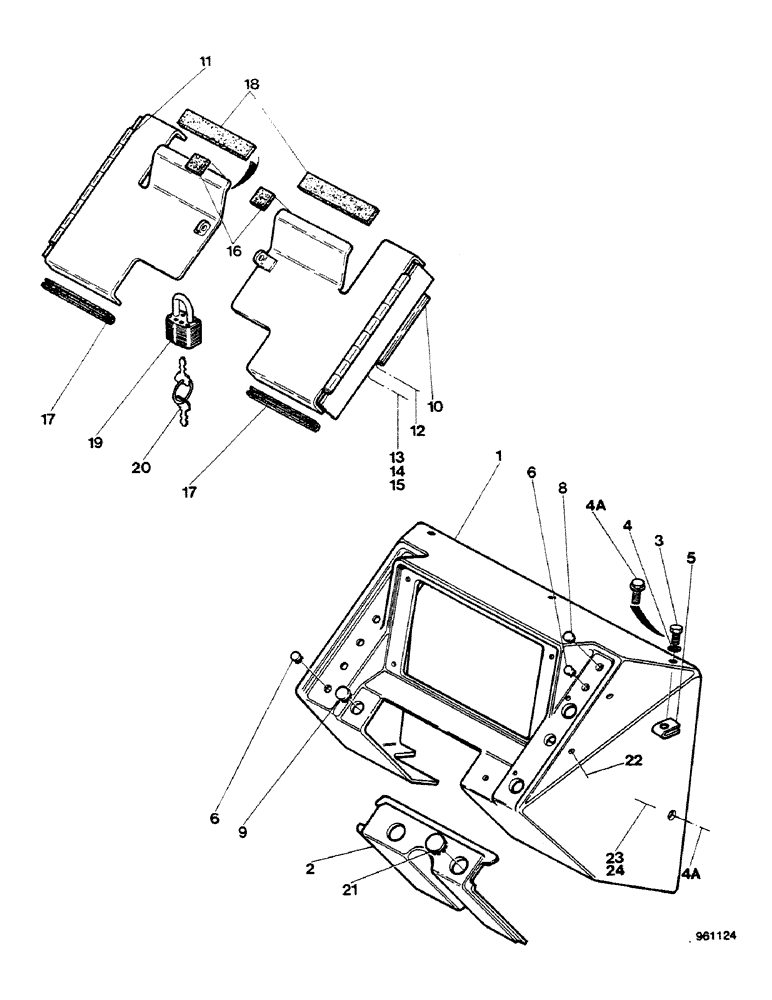

Запчасти Case 580G (070) - INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

D94462

PANEL

instrument, Serial Range: -3.393.169

1шт.

1

D124759

PANEL

instrument, See other option figure 489A, Start Serial: 3.934.170

1шт.

2

D83255

PANEL

, Serial Range: -3.393.169

1шт.

2

D123198

PANEL, INSTRUMENTS

PANEL, INSTRUMENT, Start Serial: 3.934.170

1шт.

3

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

4

195-521

WASHER,5/16", SAE

5шт.

4a

121-123

BOLT,Hex Serr, 5/16" - 18 x 3/4"

Can be used in place of ref. 3 and 4

5шт.

5

131-641

NUT

3шт.

6

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

8

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

9

353-407

PLUG,Dome, .687" hole, Nylon

11/16"

1шт.

10

D120509

COVER

RH

1шт.

11

D120510

COVER

SPARE PART LH

1шт.

12

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

4шт.

13

195-102

WASHER,1/4"

flat

4шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

16

D83236

PAD

2шт.

17

D95461

LINING

TRIM

2шт.

18

D66072

SEALING STRIP

2шт.

19

D93753

PADLOCK

Includes: Ref. 20

1шт.

20

R29555

KEY

Master lock

2шт.

20

D93751

SET OF 2 KEYS

Yale lock

2шт.

21

353-412

PLUG,Dome, 1.093" hole, Nylon

1-3/32" If used

1шт.

22

353-401

PLUG,Dome, .312" hole, Nylon

5/6

4шт.

23

195-21

WASHER,5/16"

Flat

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.
