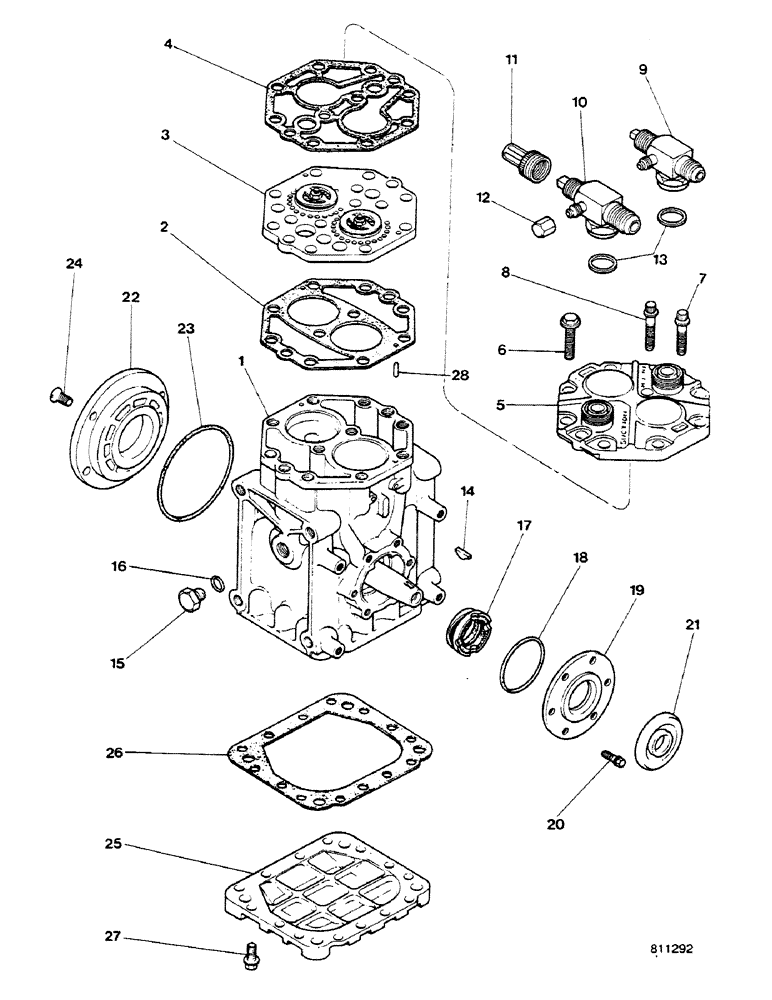

Запчасти Case 580G (064) - ENGINE - COMPRESSOR FOR AIR CONDITIONER (04) - ELECTRICAL SYSTEMS

A141060

COMPRESSOR

Includes: Ref. 1 - 27

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKCASE

1шт.

A45420

VALVE

KIT, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET

1шт.

Part of Seal Kit, P/N A42964

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE, A45420

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET

1шт.

Part of Seal Kit, P/N A42964

1шт.

5

NSS

NOT SOLD SEPARAT

HEAD

1шт.

6

A42949

FLANGE BOLT

8шт.

7

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART (5/16 x 1.3/8 NC)

2шт.

8

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

(5/16 x 1-17/32 NC)

2шт.

9

A145699

VALVE

1шт.

10

A42937

VALVE

Includes: Ref. 11 - 12

1шт.

11

A42944

CAP

2шт.

12

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

2шт.

13

A42938

GASKET

2шт.

14

A42939

KEY

1шт.

15

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Part of Seal Kit, P/N A42964

1шт.

A42960

SEAL

KIT, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit, P/N A42964

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE

1шт.

20

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

6шт.

21

A42965

CAP

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

23

NSS

NOT SOLD SEPARAT

GASKET

1шт.

Part of Seal Kit, P/N A42964

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW

4шт.

25

NSS

NOT SOLD SEPARAT

PLATE

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET

1шт.

27

NSS

NOT SOLD SEPARAT

BOLT

12шт.

A42964

GASKET

KIT, Includes: Ref. 2, 4, 16, 18 and 23

1шт.
