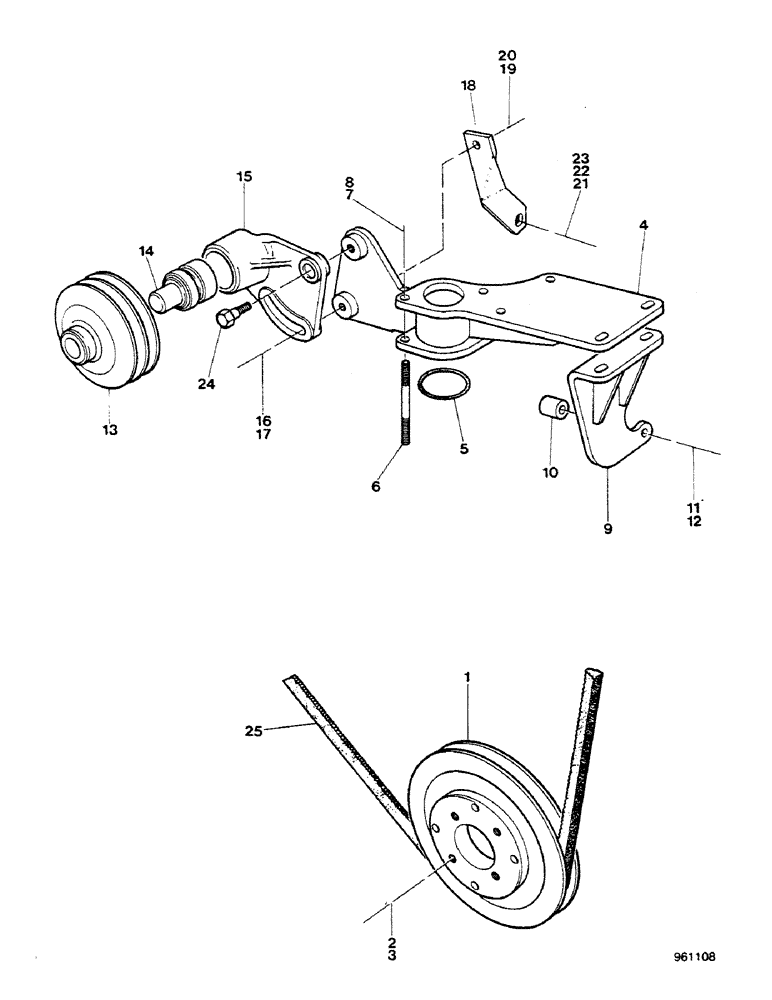

Запчасти Case 580G (062) - ENGINE COMPRESSOR DRIVE AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

D90356

X

SPARE PART PULLEY

1шт.

2

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

lock

4шт.

4

K202189

BRACKET

1шт.

5

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

6

K608158

STUD

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

2шт.

9

K202190

BRACKET

1шт.

10

D91592

BUSHING

SPARE PART

2шт.

11

192-21

LOCK WASHER,3/8"

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

13

K201799

ADJUSTER

PULLEY

1шт.

14

K620203

BALL BEARING,38.1mm OD x 75.75mm L

SHAFT

1шт.

15

K206212

BRACKET

1шт.

16

113-232

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

1шт.

17

195-525

WASHER,3/8", SAE

1шт.

18

D122964

BRACE

SPARE PART

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

1шт.

21

195-525

WASHER,3/8", SAE

1шт.

22

192-21

LOCK WASHER,3/8"

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

24

K955095

STEP BOLT

WASHER special

1шт.

24

195-533

WASHER,1/2", SAE

1шт.

25

D89574

BELT

1шт.
