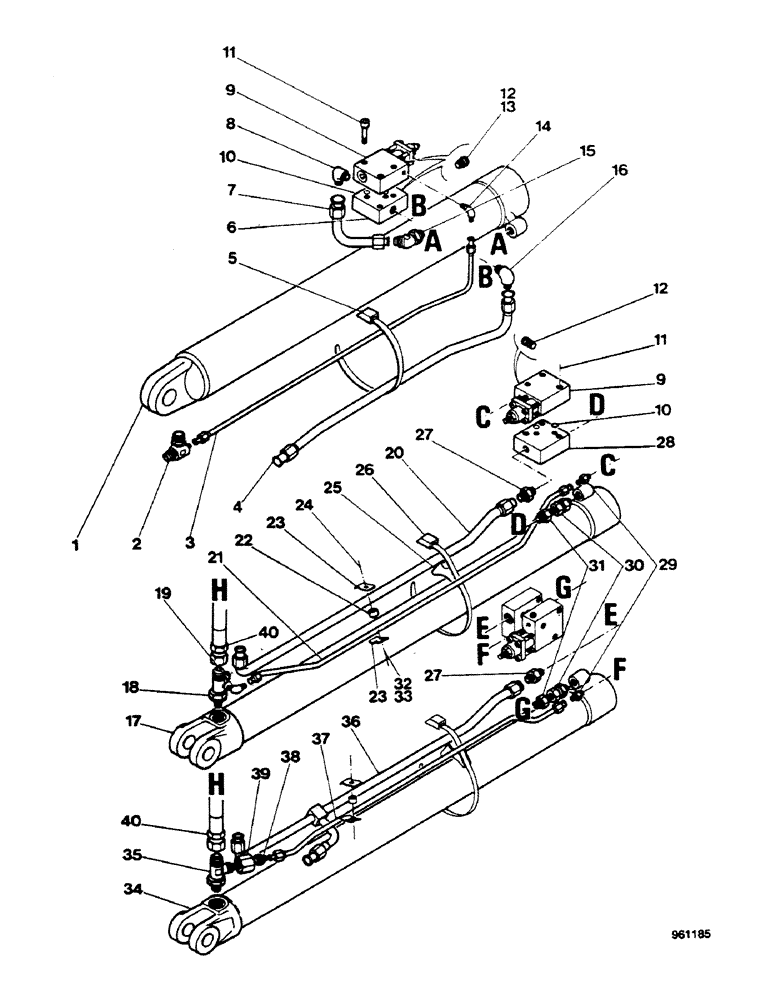

Запчасти Case 580G (574) - BACKHOE - DIPPER AND BOOM CYLINDERS CHECK VALVES (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
CYLINDER dipper See Figure 330
1шт.
2
E44513
FITTING
SPARE PART
1шт.
2
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
3
E44520
TUBE
SPARE PART
1шт.
4
E44275
TUBE
SPARE PART
1шт.
5
214-269
HOSE CLAMP,#72, 4.06" - 5", Type F Worm
1шт.
6
E44252
BASE
SPARE PART
1шт.
7
E44263
TUBE
1шт.
8
218-495
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF
elbow
1шт.
9
REF
INSTRUCTION
VALVE check, See Figure 578, Includes: Ref. 10 - 12
3шт.
10
E44909
O-RING
2шт.
11
864-8045
HEX SOC SCREW,M8 x 45mm, Cl 8.8
3шт.
12
E44306
PLUG
SPARE PART
1шт.
13
E44306
PLUG
SPARE PART
1шт.
14
E44512
FITTING
elbow, Includes: Ref. 14
1шт.
14
E44823
O-RING
1шт.
15
218-5528
ELBOW,45 Degree, 1 1/16"-12 x 7/8"-14, O-Ring
elbow
1шт.
15
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
16
218-495
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF
elbow
1шт.
17
REF
INSTRUCTION
CYLINDER boom, See Figure 328
1шт.
18
E44259
FITTING
SPARE PART Includes: Ref. 18
1шт.
18
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
19
218-483
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF
1шт.
20
E44273
TUBE
SPARE PART
1шт.
21
E44518
TUBE
1шт.
22
E44514
BUSHING
SPARE PART
2шт.
23
E44515
CLAMP
SPARE PART
4шт.
24
113-4
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
25
D38648
BLOCK
insulator
2шт.
26
214-267
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
2шт.
27
218-458
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF
2шт.
28
E44253
BASE
SPARE PART
2шт.
29
E44511
ADAPTER
SPARE PART Includes: Ref. 29
2шт.
29
E44825
LOOM
SPARE PART O-RING
1шт.
30
E41339
ADAPTER
2шт.
30
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
31
218-445
HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF
2шт.
32
7770
NUT,Hex, 1/4 - 20, Cl 5
2шт.
33
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
2шт.
34
REF
INSTRUCTION
CYLINDER boom, See Figure 328
1шт.
35
218-5239
TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Includes: Ref. 35
1шт.
35
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
36
E44271
TUBE
SPARE PART
1шт.
37
E44516
TUBE
SPARE PART
1шт.
38
218-795
REDUCER,37 Degree, 3/4" x 3/8" Tube
1шт.
39
218-346
TUBE NUT,37 Degree, 1 1/16"-12, Type B
1шт.
40
E44262
HOSE
SPARE PART, Serial Range: -3.918.606
1шт.
40
E44971
HOSE
E45841, Start Serial: 3.918.607
1шт.
40
E45841
HOSE
1шт.
Выбрано товаров: 49
