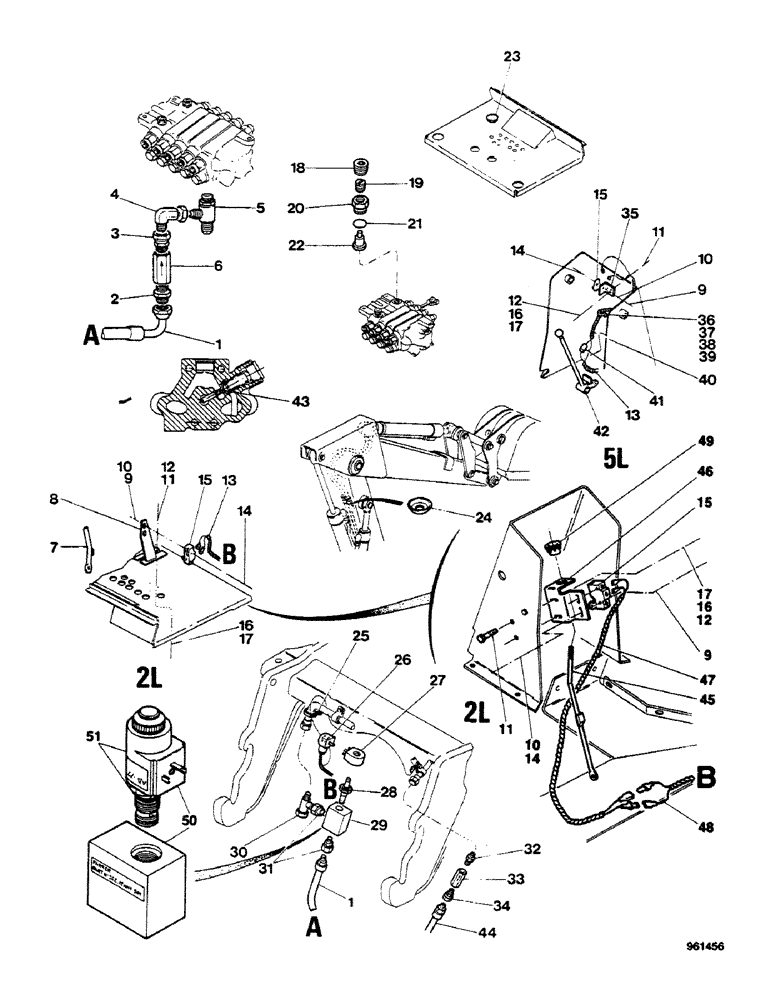

Запчасти Case 580G (572) - SIDESHIFT BACKHOE - SAFETY DEVICE (09) - CHASSIS/ATTACHMENTS

1

E44554

HOSE

SPARE PART D50372

1шт.

1

D50372

HOSE

1шт.

2

E42488

COUPLING, BREAK AWAY

SPARE PART Includes: Ref. 2

1шт.

2

E44824

O-RING

SPARE PART

1шт.

3

E44522

ADAPTER

SPARE PART Includes: Ref. 3

1шт.

3

E44824

O-RING

SPARE PART

1шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

218-5175

1шт.

4

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

elbow - 45 Degrees

1шт.

5

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

E44497

VALVE

SPARE PART check

1шт.

7

E44563

ROD

2L, Serial Range: -3.948.949

1шт.

7

E45805

ROD

2L, For Sweden, Serial Range: -3.948.949

1шт.

8

E44426

BRACKET

2L, Serial Range: -3.948.949

1шт.

9

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

2шт.

10

195-507

WASHER,#6

flat

2шт.

11

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

12

195-518

WASHER,1/4", SAE

2шт.

13

E44427

HARNESS

SPARE PART E46389 + E46390

1шт.

E10160

GROMMET

Not Illustrated

1шт.

14

193-1003

NUT,Keps, w/LW,#6-32

2шт.

15

D134622

SWITCH

micro

1шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

1шт.

19

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

20

E44305

PLUG

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

E44304

PLUNGER

1шт.

23

E41516

COVER

PLUG, Serial Range: -3.948.949

1шт.

24

E44610

FITTING

restrictor

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie

3шт.

26

E44473

CONNECTOR, ELEC

CONNECTOR plug

1шт.

27

E44474

COIL

SPARE PART, Serial Range: -3.989.425

1шт.

28

REF

INSTRUCTION

SOLENOID, See Figure 568, Serial Range: -3.989.425

1шт.

29

E44434

BLOCK ASSY.

SPARE PART CARTRIDGE, Serial Range: -3.989.425

1шт.

30

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

31

E44433

ADAPTER

SPARE PART

2шт.

32

E44284

ADAPTER

SPARE PART If used, Includes: Ref. 32

1шт.

32

E44824

O-RING

SPARE PART If used

1шт.

33

E44282

VALVE

SPARE PART check, If used

1шт.

34

E44285

ADAPTER

If used

1шт.

35

E44499

BRACKET

SPARE PART 5L

1шт.

36

49853

TOOL

5L

2шт.

37

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

5L

2шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

39

7770

NUT,Hex, 1/4 - 20, Cl 5

5L

2шт.

40

E44555

HARNESS

SPARE PART 5L

1шт.

41

E38355

TERMINAL CONNECTOR

CLIP 5L

2шт.

42

E44501

LEVER

5L

1шт.

43

E44560

WASHER

SPARE PART

1шт.

44

D120465

HOSE

1шт.

E49192

DECAL

On LH fender, Not Illustrated, E49267, See Figure 568

1шт.

45

E46329

ROD

2L, Start Serial: 3.948.950

1шт.

46

E46328

BRACKET

2L, Start Serial: 3.948.950

1шт.

47

E46389

HARNESS

1шт.

48

E46390

HARNESS

1шт.

49

353-464

BUSHING

, Start Serial: 3.948.950

1шт.

50

E45966

BLOCK

SPARE PART VALVE solenoid, See Figure 568, Start Serial: 3.989.426

1шт.

51

E46556

LOCK VALVE

SOLENOID, See Figure 568, Start Serial: 3.989.426

1шт.
