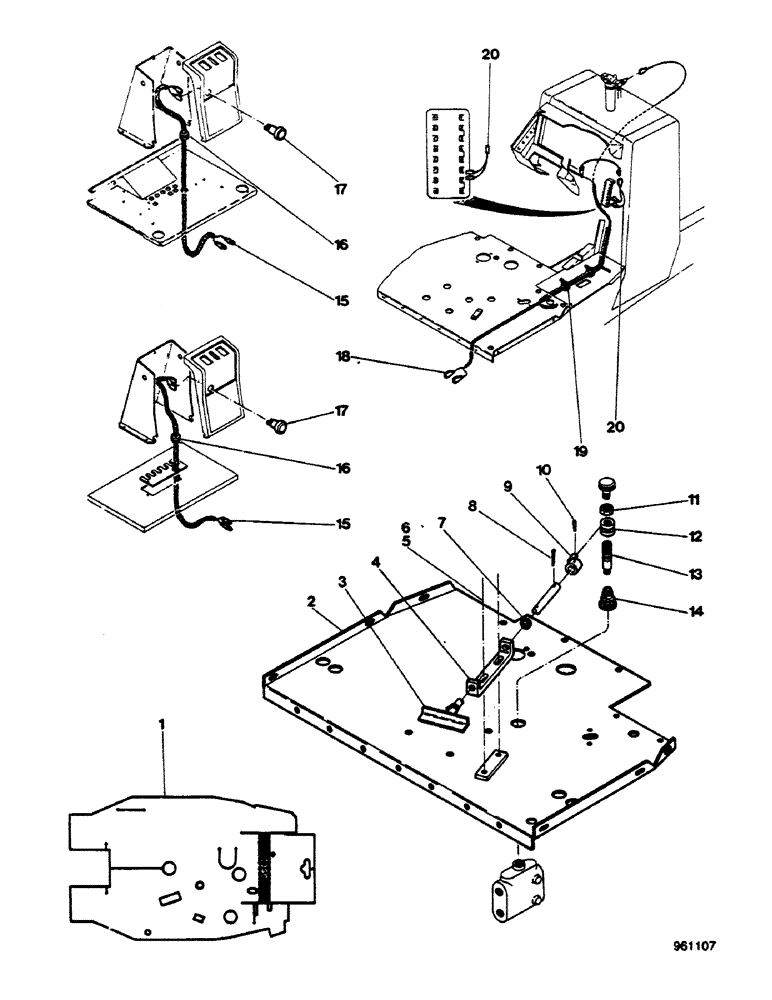

Запчасти Case 580G (562) - AUXILIARY HYDRAULICS FOR FRONT AND REAR HYDRAULIC (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

MAT (See Figure 426)

1шт.

2

REF

INSTRUCTION

PLATE front (See Figure 430)

1шт.

3

E44070

PEDAL

SPARE PART

1шт.

4

E44078

SUPPORT

SPARE PART STRAP holding

1шт.

5

195-33

WASHER,1/2"

flat

2шт.

6

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

7

195-45

WASHER,3/4"

1шт.

8

132-49

COTTER PIN,1/8" x 1 1/8"

1шт.

9

E44073

SLEEVE

SPARE PART

1шт.

10

135-342

GROOVED PIN,3/16" x 1 1/4", Type F

1шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

12

E44076

STOP

SPARE PART

1шт.

13

E43900

ROD

1шт.

14

D85869

BELLOWS

BOOT

1шт.

15

E43917

HARNESS

SPARE PART

1шт.

16

E11200

GROMMET

1шт.

17

E41427

warning, Includes: Ref. 17

1шт.

17

E41853

BULB

shuttle 2 W

1шт.

18

E43916

HARNESS

, Serial Range: -3.938.265

1шт.

18

E45782

HARNESS

, Start Serial: 3.938.266

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

2шт.

20

E43889

ELECTRICAL WIRE

WIRE

1шт.
