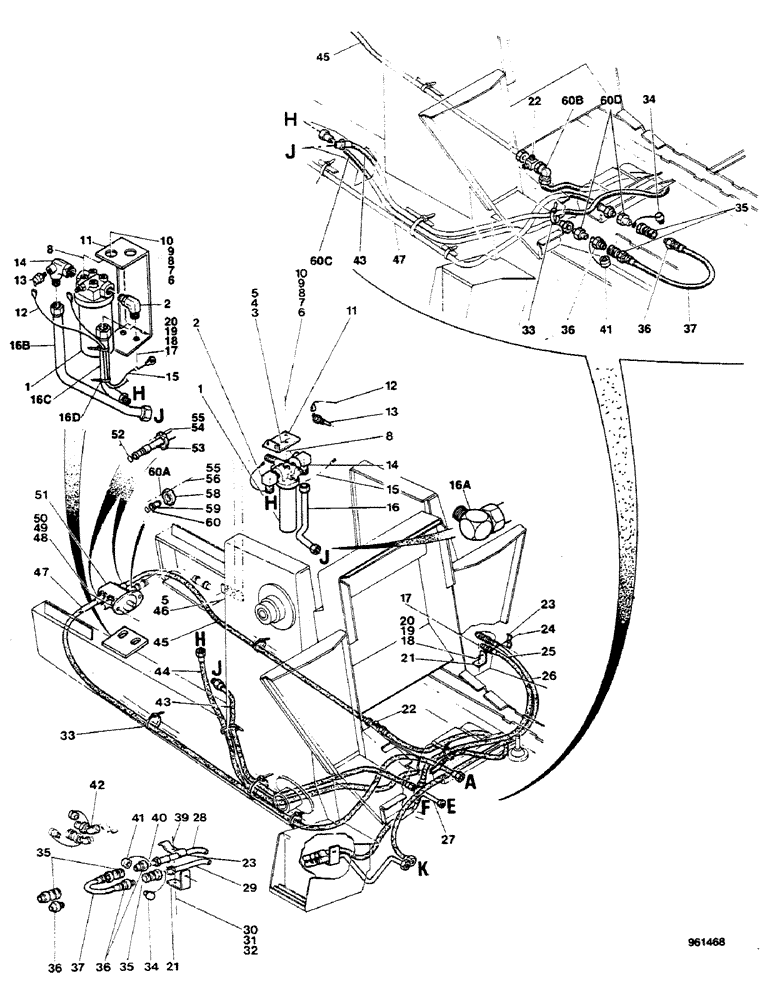

Запчасти Case 580G (556) - AUXILIARY HYDRAULICS FOR FRONT AND REAR HYDRAULIC (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FILTER (See Figure 312)

1шт.

2

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

elbow, Includes: Ref. 2, Serial Range: -3.939.067

1шт.

2

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

Starting from No. 3.939.068 Except 3.939.196 Up to No. 3.939.240

1шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

9635082

NUT,5/16" - 18, Gr 5

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

195-521

WASHER,5/16", SAE

4шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

195-2042

WASHER,.469" x 1 1/2" x .134"

flat

4шт.

9

D76209

SPACER

2шт.

10

D132895

GROMMET

2шт.

11

D89897

BRACKET

SPARE PART, Serial Range: -3.938.265

1шт.

11

E45769

BRACKET

, Start Serial: 3.938.266

1шт.

12

REF

INSTRUCTION

HARNESS (See ref. 18 Figure 562)

1шт.

13

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

sensor

1шт.

14

E43775

FITTING

elbow, Serial Range: -3.939.067

1шт.

14

E45626

FITTING

elbow

1шт.

Starting from No. 3.939.068 Except 3.939.196 Up to No. 3.939.240

1шт.

15

E42571

ELECTRICAL WIRE

SPARE PART, Serial Range: -3.938.265

1шт.

15

E45768

ELECTRICAL WIRE

WIRE, Start Serial: 3.938.266

1шт.

16

D89902

HYD TUBE,25.4 mm OD x 354, 78 mm L

, Serial Range: -3.938.265

1шт.

16a

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

elbow, If used, Serial Range: -3.938.265

1шт.

16b

E45774

TUBE

, Start Serial: 3.938.266

1шт.

16c

E45776

TUBE

, Start Serial: 3.938.266

1шт.

16d

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie

6шт.

17

113-242

BOLT

3шт.

18

195-104

WASHER,3/8"

flat

3шт.

19

92-6

LOCK WASHER,3/8"

3шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

21

E43854

BRACKET

2шт.

22

218-1114

TEE,1 5/16"-12, 37 Degree x 3/4"-14, NPTF Br

1шт.

23

E43833

CLAMP

2шт.

24

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

25

E43770

HOSE

SPARE PART

1шт.

26

E43771

HOSE

SPARE PART

1шт.

27

E43839

TUBE

SPARE PART

1шт.

28

E43823

HOSE

SPARE PART

1шт.

29

E43837

PIPE

SPARE PART

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

195-104

WASHER,3/8"

flat

1шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Clamp

8-4шт.

34

T40274

CAP

2-1шт.

35

T40265

COUPLING, BREAK AWAY

5-2шт.

36

T41332

COUPLING, BREAK AWAY

5-2шт.

37

E42464

HOSE

SPARE PART

1шт.

39

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

40

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

41

T40759

PLUG

2-1шт.

42

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

elbow

2шт.

43

E43574

HOSE

SPARE PART

1шт.

44

E43573

HOSE

SPARE PART

1шт.

45

E43777

HOSE

SPARE PART

1шт.

46

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

47

E43776

HOSE

SPARE PART

1шт.

48

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4-2шт.

49

92-8

LOCK WASHER,1/2"

4-2шт.

50

195-33

WASHER,1/2"

flat

4-2шт.

51

REF

INSTRUCTION

PUMP (See Figure 566)

1шт.

52

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

53

A16961

FLANGE

4шт.

54

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

55

92-6

LOCK WASHER,3/8"

12шт.

56

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

58

A12306

FLANGE

1-2шт.

59

D91849

PIPE

, Serial Range: -3.939.084

1шт.

59

E45783

PIPE FITTING

, Start Serial: 3.939.085

1шт.

60

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

60a

E46037

FLANGE

1шт.

Used with pump D 30 PA02-148

1шт.

60b

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

elbow, If used

1шт.

60c

E46648

TUBE

If used

1шт.

60d

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

elbow, If used

2шт.
