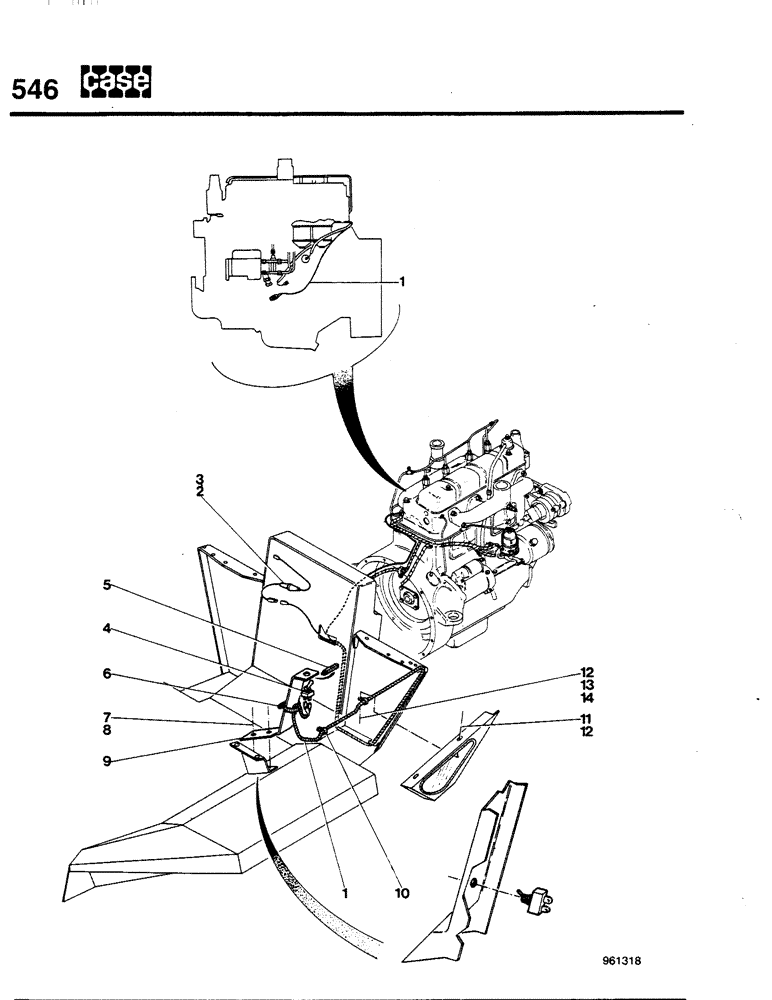

Запчасти Case 580G (546) - AUXILIARY FUEL SHUT-OFF CONTROL (09) - CHASSIS/ATTACHMENTS

1

E45029

HARNESS

1шт.

2

E37772

FUSE

HOLDER, Includes: Ref. 3

1шт.

3

E37773

FUSE

1шт.

4

D67251

SWITCH

1шт.

5

E43308

GUARD

SPARE PART If used

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

4шт.

7

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

If used

2шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

If used

2шт.

9

E43309

STRAP

SPARE PART If used

1шт.

10

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

2шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

12

195-103

WASHER,5/16"

flat

4шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

321-3678

DECAL

(not illustrated)

1шт.
