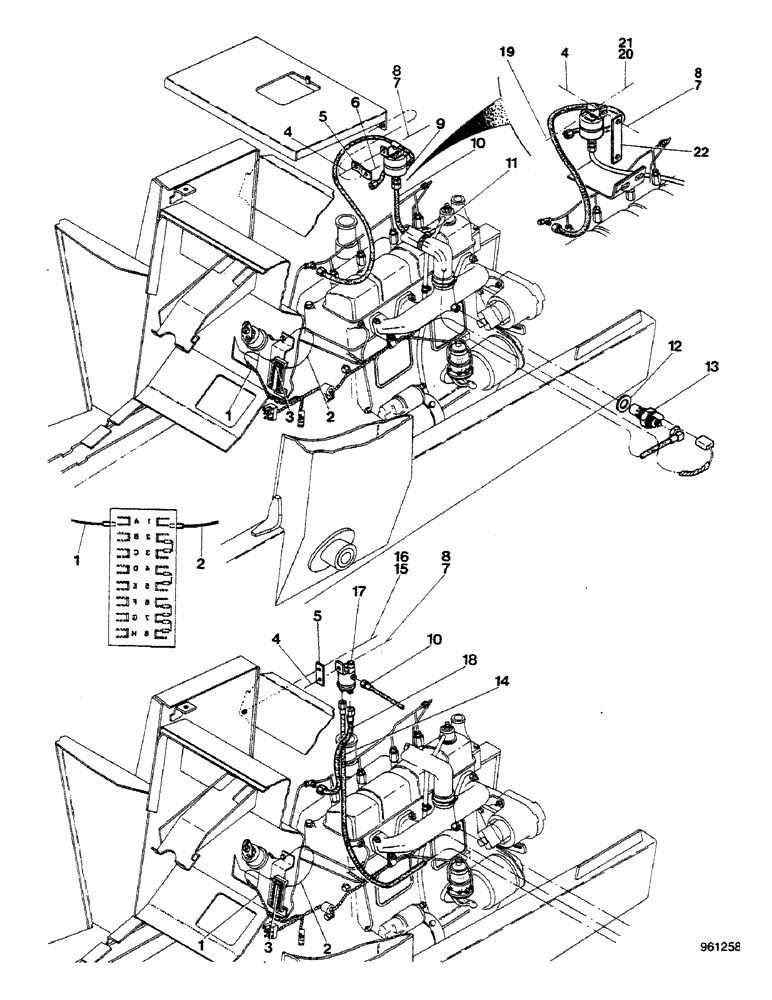

Запчасти Case 580G (059A) - ENGINE - COLD START SYSTEM (03) - FUEL SYSTEM

1

REF

INSTRUCTION

HARNESS (See Ref. 46 figure 69A)

1шт.

2

REF

INSTRUCTION

WIRE (See Ref. 46 figure 69A)

1шт.

3

D94298

FUSE

16 A

1шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

5

D121419

BRACKET

1шт.

6

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

6

195-21

WASHER,5/16"

Flat

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

1шт.

9

K207138

RESERVOIR

1шт.

10

D122265

TUBE

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Clamp

1шт.

12

K626957

WASHER

1шт.

13

K928523

GLOW PLUG

THERMOSTART

1шт.

14

D91706

HOSE

1шт.

15

195-21

WASHER,5/16"

Flat

1шт.

16

131-4

LOCK NUT,5/16"-18, GB

1шт.

17

K202360

RESERVOIR

K207138

1шт.

18

D91704

TUBE

1шт.

19

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

20

193-57

LOCK WASHER,Ext Tooth, 1/4"

1шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

22

E45713

BRACKET

1шт.
