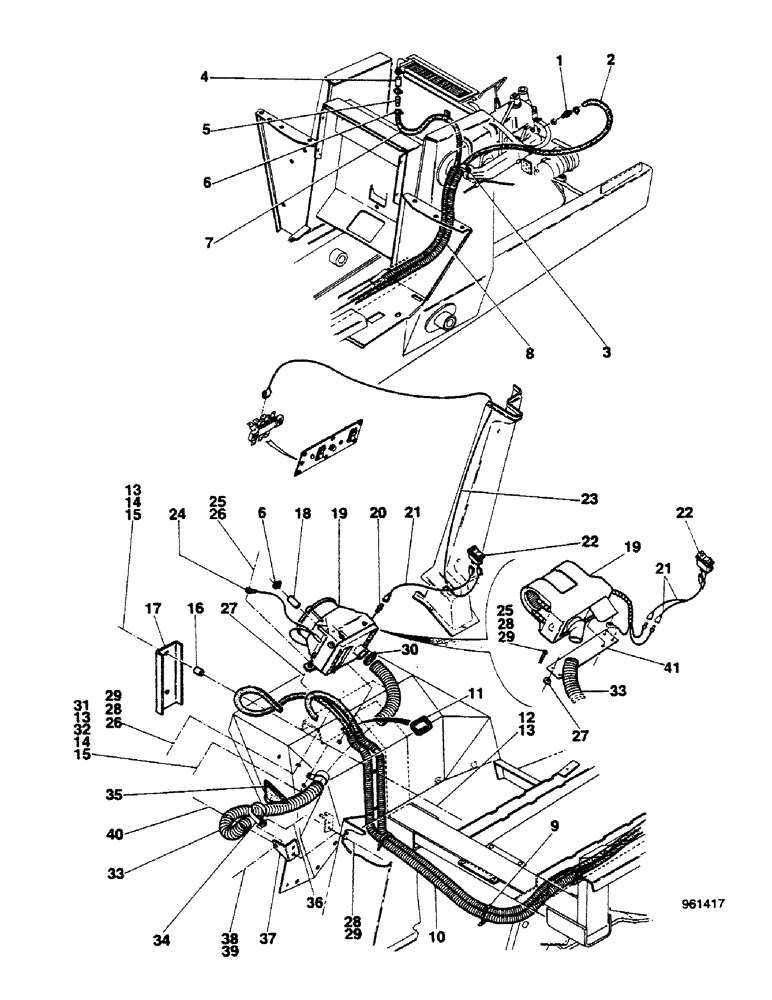

Запчасти Case 580G (541A) - CAB - AUXILIARY HEATER STARTING FROM NO. 3.808.567 (09) - CHASSIS/ATTACHMENTS

1

D76514

FITTING

1шт.

2

E45752

LARGE HOSE

SPARE PART

1/2шт.

3

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

1шт.

4

E45750

LARGE HOSE

HOSE,LARGE

1шт.

5

E45749

REDUCER FITTING

1шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

7

E45751

LARGE HOSE

HOSE,LARGE E45752

1шт.

8

E44958

LOOM

SHEATH

2шт.

9

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Clamp

2шт.

10

E45753

LOOM

SHEATH

2шт.

11

E45756

GUARD

1шт.

12

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

195-104

WASHER,3/8"

flat

5шт.

14

192-21

LOCK WASHER,3/8"

3шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

3шт.

16

E45754

BUSHING

2шт.

17

E45755

PLATE

SHIELD

1шт.

18

E45455

SLEEVE

If used

2шт.

19

E44995

HEATER

E46102

1шт.

19

E46102

HEATER

1шт.

E46414 (1) + E46415 (1) + E45746 (1) + E45671 (1) + 113-104 (2) + E43297 (2) + 192-20 (2) + 129-102 (2)

1шт.

19

E46414

HEATER ASSY.

See Figure 541C

1шт.

20

E33324

TERMINAL CONNECTOR

SPARE PART If used

1шт.

21

E45746

ELECTRICAL WIRE

WIRE

1/2шт.

22

E45748

SWITCH

If used, E45671

1шт.

E46414 (1) + E46415 (1) + E45746 (1) + E45671 (1) + 113-104 (2) + E43297 (2) + 192-20 (2) + 129-102 (2)

1шт.

22

E45671

SWITCH

1шт.

23

E44996

ELECTRICAL WIRE

WIRE

1шт.

24

223-60

CONNECTOR, ELEC

CONNECTOR EYELET, If used

1шт.

25

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2/4шт.

26

195-521

WASHER,5/16", SAE

4шт.

27

E43297

BUSHING

2/4шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

29

9635082

NUT,5/16" - 18, Gr 5

4шт.

30

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

31

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

32

E35505

CLAMP

SPARE PART

1шт.

33

E45601

DUCT

HOSE

1шт.

34

E43299

CLAMP

1шт.

35

E43298

NOZZLE CAP

1шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

37

E45602

BRACKET

SPARE PART

1шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

1шт.

39

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

40

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

41

E46415

SUPPORT ASSY.

1шт.
